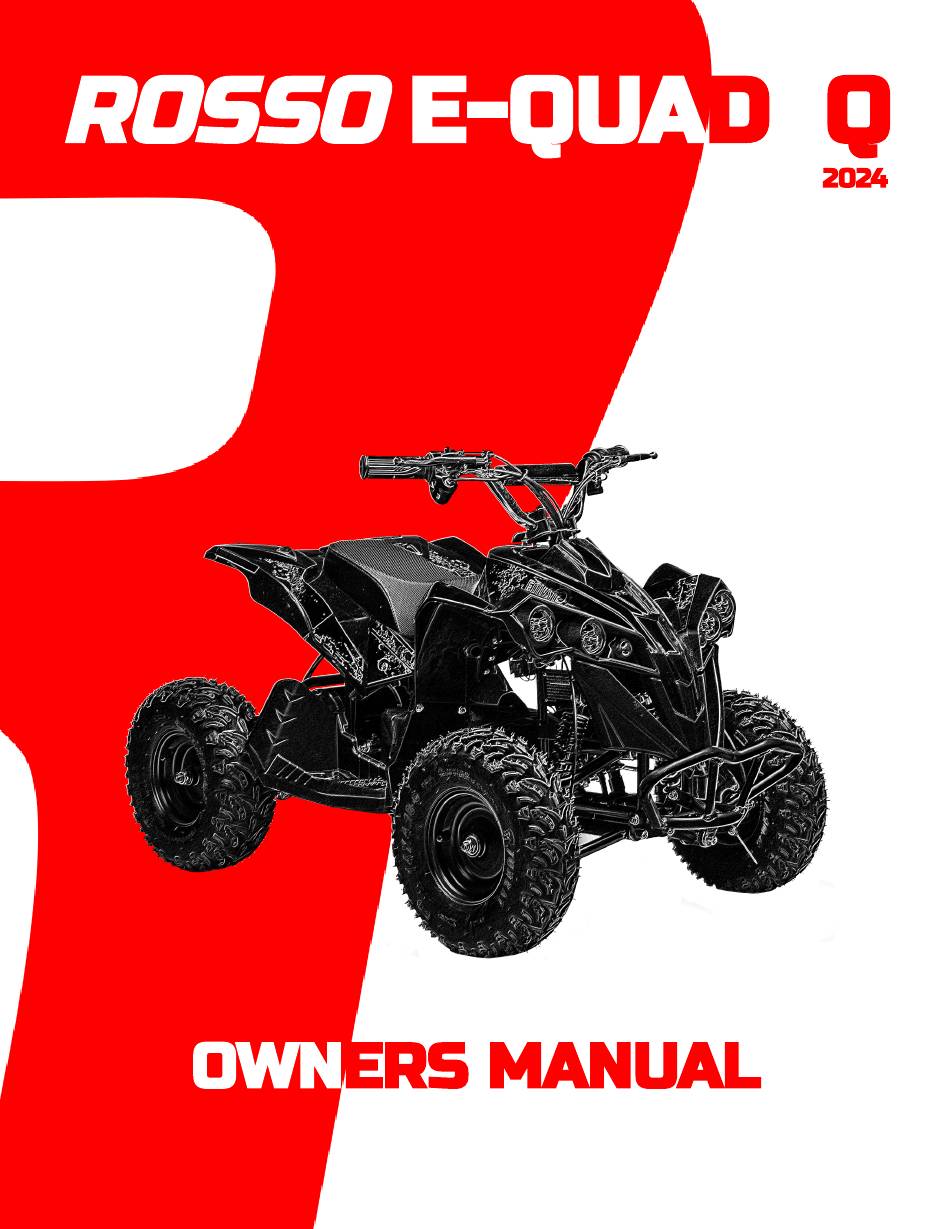

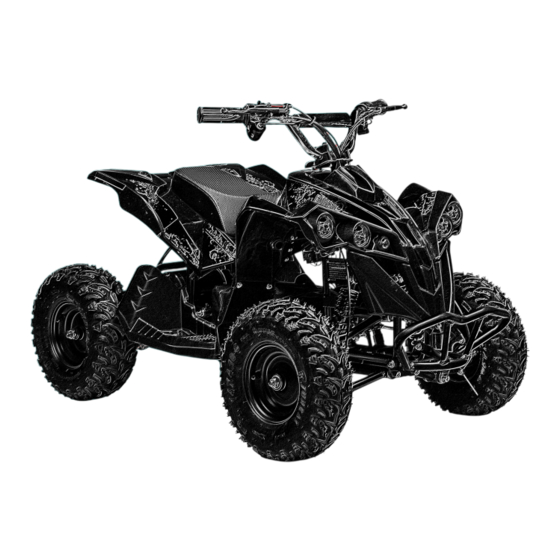

- Page 1 ROSSO E - QUAD Q 2024 ELECTRIC ATV OWNERS MANUAL PRIOR TO FIRST USE, READ THIS MANUAL COMPLETELY AND ATTENTIVELY! IMPERATIVELY FOLLOW THE SAFETY INSTRUCTIONS! NONOBSERVANCE CAN LEAD TO PERILOUS INJURIES! CAREFULLY KEEP THIS MANUAL!
- Page 2 PLEASE INSPECT THIS EQUAD Q UPON ARRIVAL AND REPORT ANY DAMAGES THAT MAY HAVE OCCURRED DURING SHIPPING...
- Page 3 Rosso Motors recommends that owners periodically review and reinforce the information in this manual with younger riders, and inspect and maintain this machine to ensure any rider’s safety. An owner's decision to allow a child to ride this product should be based on the child’s maturity, skill and...
-
Page 4: Safety Information
SAFETY INFORMATION ALWAYS follow safety information, product instructions and recommended maintenance and care, to ensure the best possible performance, lifespan and experience with a new eQuad! ALWAYS wear proper protective safety equipment. (See details below) ALWAYS check and obey any local laws or regulations that may affect the locations where the eQuad may be used. - Page 5 NEVER immerse in or saturate the eQuad with water, as the electrical and drive components could be damaged by water or create other possible unsafe conditions. While shallow depths of water, such as shallow puddles or a few cm of mud or snow are most likely ok, avoid levels of water that may be near to or deeper than the unit’s ground clearance.
- Page 6 ASSEMBLY ● The eQuad Q arrives in 2 separate boxes (1 vehicle, 1 battery) which may arrive separately. ● The eQuad Q requires minimum assembly. ● Please follow the instructions below in order to get this eQuad Q assembled properly ●...
-
Page 7: Handlebar Installation
2. Handlebar installation: Attach handlebar clamps overtop of the handlebars with the included bolts, correctly position the handlebars, tightening the bolts into place in the bracket which is integrated into the top of the steering column. NOTE: the handlebar mount has been updated and looks different than in the above-left image and installation video. -
Page 8: Battery Installation
ASSEMBLY continued… 4. Battery installation: Remove the bolts from the 2 brackets that hold the battery pack into place. Slide the battery into position with the end of the battery with the wires protruding at the front. Replace the removed brackets and tighten down the bolts. -
Page 9: Front Bumper Installation
6. Front bumper installation: Align the 2 bottom holes on the bumper with the corresponding holes on the lower front of the frame and install the bolts. Then align the 3rd hole with the matching hole on the frame and install the bolt. Tighten all hardware to secure the bumper. -
Page 10: Component Diagram
COMPONENT DIAGRAM eQuad Q Components: (a) forward / reverse gear switch (f) throttle/battery meter & front brake (b) battery box (g) rear brake & headlight/horn buttons (c) charging port / controller (h) headlights (d) 1000W motor (e) 3-speed switch (left side) & ignition switch (right side) OPERATION Basic Operation With the ATV powered on, first press down the safety pedal on the right footrest, and then gently twist... - Page 11 Oppositely if it does not do either that does not indicate it is not working properly. If the charger becomes very hot, please unplug it and contact Rosso Motors technical support. The charger supplied with the eQuad should be regularly examined for damage to the cord, plugs, enclosure and other parts.
-
Page 12: Battery Level Indicator
OPERATION continued… Ignition Switch / Alarm & Key Fob MANUALLY by placing the key into the ignition switch (located on the throttle assembly on the right handlebar) and turning it to the on position. Once turned on manually, the eQuad can ONLY be turned off by manually turning the key back to the off position. -
Page 13: Parking Brake
Parking Brake Locate the parking brake knob on the front brake lever on the right handlebar. To engage the parking brake, squeeze the front brake lever and press down the parking brake knob. To disengage the parking brake squeeze the brake lever until the knob pops up. Headlight/Horn switch Located on the left handle bar the green... -
Page 14: Pre-Ride Checklist
PRE-RIDE CHECKLIST Ensure to check the following before each ride to ensure maximum safety: Brakes - Check the brakes for proper function. When squeezing each brake lever, the brake caliper should prevent movement. Tires - Inspect tires for excess wear and replace as needed. Riding on abrasive surfaces such as concrete or asphalt will increase tire wear. -
Page 15: Brake Adjustments
Brake adjustments Failure to inspect and properly adjust brakes increases the risk of having an accident. Riding with worn brake pads can reduce braking performance and cause an accident. Check and adjust brakes if needed before each ride. To adjust cable play on the left (rear) brake lever – tighten/loosen adjuster To adjust cable play on the right (front) brake lever - tighten/loosen adjuster To adjust the calipers, loosen (do not remove completely) the anchor nut (a) and pull the brake cable (c) until the brake pads are almost touching the rotor(brake disc) (b). - Page 16 MAINTENANCE continued… Chain This ATV is chain-driven and should be periodically lubricated with lithium spray. The chain may make some clicking noises, this is normal. Always inspect, maintain or adjust the chain, if necessary, before each ride. Riding with a chain in poor condition or one improperly adjusted, can lead to serious injury.
-
Page 17: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Power does not turn on Fuse not installed/burnt out Replace fuse Turn main switch on / activate with eQuad is turned off remote fob Battery not connected Connect battery Battery not charged Charge battery Check connections on the battery, Loose connection controller &... -
Page 18: Wiring Diagram
WIRING DIAGRAM... -
Page 19: Warranty
WARRANTY ROSSO MOTORS warranties this product to be free of manufacturing defects for a period of 6 months from the date of purchase. This limited warranty does not cover normal wear and tear components, (tires, tubes, brake cables, etc) or any damage, failure or loss caused by improper assembly, maintenance, care, storage or use of the eQuad Q. - Page 20 11400 Twigg Place Unit 1 Richmond, BC, V6V3C1 CANADA hello@rossomotors.com www.rossomotors.ca 1-888-897-5909 © Rosso Motors, 2024. All Rights Reserved...
