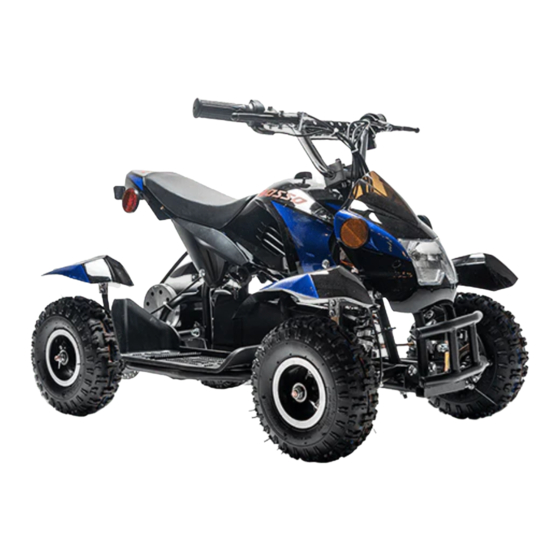

- Page 1 ROSSO E-QUAD S ELECTRIC ATV OWNERS MANUAL - PRIOR TO FIRST USE, READ THIS MANUAL COMPLETELY AND ATTENTIVELY! IMPERATIVELY FOLLOW THE SAFETY INSTRUCTIONS! NONOBSERVANCE CAN LEAD TO PERILOUS INJURIES! CAREFULLY KEEP THIS MANUAL!
-
Page 2: General Information
Rosso Motors recommends that you periodically review and reinforce the information in this manual with younger riders, and that you inspect and maintain your children’s electric ATV to insure their safety. - Page 3 ⚠ DO NOT EXCEED THE WEIGHT LIMIT OF 90 POUNDS. Rider weight does not necessarily mean a person’s size is appropriate to fit or maintain control of the electric ATV. Do not touch the brakes or electric motor on your electric ATV when in use and/or immediately after riding as they can become very hot.
- Page 4 Do not ride the electric ATV in wet or icy weather and never immerse the electric ATV in water, as the electrical and drive components could be damaged by water or create other possible unsafe conditions. Wet, slick, bumpy, uneven or rough surfaces may increase risks of use. Do not ride the electric ATV in mud, ice, puddles or water.
- Page 5 Assembly: ● The ROSSO eQuad S requires minimum assembly. ● Please follow instructions below in order to get your eQuad S assembled properly ● An assemble video can also be found at https://youtu.be/nx0eo_R491g 1. Check hardware box contents: Charger Spare Fuse (1 fuse pre-installed) Handlebar Clamp Forward/Reverse Gear Switch Knob Fob w/ Ignition &...
-
Page 6: Handlebar Installation
1. Handlebar installation: ⚠ Failure to properly adjust and tighten the bolts can cause loss of control and crash. Place handlebars into position on the bracket on the top of the steering column, cover with the top handlebar bracket and loosely install 2 of the provided nuts & bolts in the set of holes closest to the rider. -
Page 7: Battery Connection
3. Battery connection: Locate the battery connection within the body and clip together the 2 connectors 4. Final adjustments Adjust the position of the brake levers, secure them in place by tightening the single bolt. (Please note: eQuad X handlebars shown, brake levers and adjustment procedure the same) Your eQuad S doesn’t come fully charged and we recommend fully charging it before your first use. -
Page 8: Basic Operation
eQuad S Components: (a) forward/reverse gear switch (f) throttle/battery meter & front brake (b) battery (g) rear brake & headlight/horn buttons (c) controller/ charging port (h) headlights (d) 500W motor (i) ignition switch (e) 3 speed switch eQuad S Operation: Basic Operation With the ATV powered on, gently twist the throttle until the desired speed is reached. - Page 9 Fully charge battery before storing for an extended period of time and then every 4-6 weeks. Failure to recharge battery periodically may result in reducing battery life time and can result in a battery that will not accept a charge. Do not leave charging overnight unattended.
-
Page 10: Battery Level Indicator
Your eQuad S also features an alarm that when set will sound if the ATV is move or the key is inserted into the ignition. To activate the alarm press the “lock” button, to turn the alarm of press the “unlock”button. To activate the alarm directly by pressing the “siren” button. -
Page 11: Pre-Ride Checklist
Headlight/Horn switch Located on the left handle bar the green horn button can be pressed to honk the horn. The headlight switch is located directly beneath it and can be used to turn the headlights on and off. Pre-Ride Checklist: ⚠... -
Page 12: Maintenance
Maintenance: ⚠ MAKE SURE YOUR EQUAD S IS PROPERLY TURNED OFF BEFORE PERFORMING ANY MAINTENANCE OR ADJUSTMENTS Brake adjustments ⚠ Failure to inspect and properly adjust brakes increases the risk of having an accident. Riding with worn brake pads can reduce braking performance and cause an accident. Check and adjust brakes if needed before each ride. - Page 13 Wheel alignment continued... This procedure is the same for both sides of the ATV. Chain Your ATV is chain driven and should be periodically lubricated with lithium spray. The chain may make some clicking noises, this is normal. Always inspect, maintain or adjust the chain, if necessary, before each ride.
-
Page 14: Troubleshooting
Troubleshooting Problem Possible Cause Solution Power does not turn on Fuse not installed/burnt Replace fuse ATV is turned off Turn main switch on / activate with remote fob Battery not connected Connect battery Battery not charged Charge battery Loose connection Check connections on the battery, controller &... -
Page 15: Wiring Diagram
Wiring Diagram Warranty ROSSO MOTORS warranties this product to be free of manufacturing defects for a period of 6 months from date of purchase. This Limited Warranty does not cover normal wear and tear, (tires, tubes or cables) or any damage, failure or loss caused by improper assembly, maintenance, storage or use of your eQuad S Electric ATV. - Page 16 11400 Twigg Place Unit 1 Richmond, BC, V6V3C1 CANADA E-Mail: hello@rossomotors.com Website: www.rossomotors.com Tel: 1-888-897-5909 © Rosso Motors, 2021. All Rights Reserved...
