WebRelay-Quad
power
supply
*Vin+ Voltage:
I Model: 9-28VDC
E Model: POE or 9-28VDC
(X-WR-444W)
Vin+ DC Power Supply Input (see below*)
Vin-
DC Power Supply Input (Ground)
1C Relay 1 Common
1NC Relay 1 Normally Closed
1NO Relay 1 Normally Open
2C Relay 2 Common
2NC Relay 2 Normally Closed
2NO Relay 2 Normally Open
3C
Relay 3 Common
3NC Relay 3 Normally Closed
3NO Relay 3 Normally Open
4C Relay 4 Common
4NC
Relay 4 Normally Closed
4NO Relay 4 Normally Open

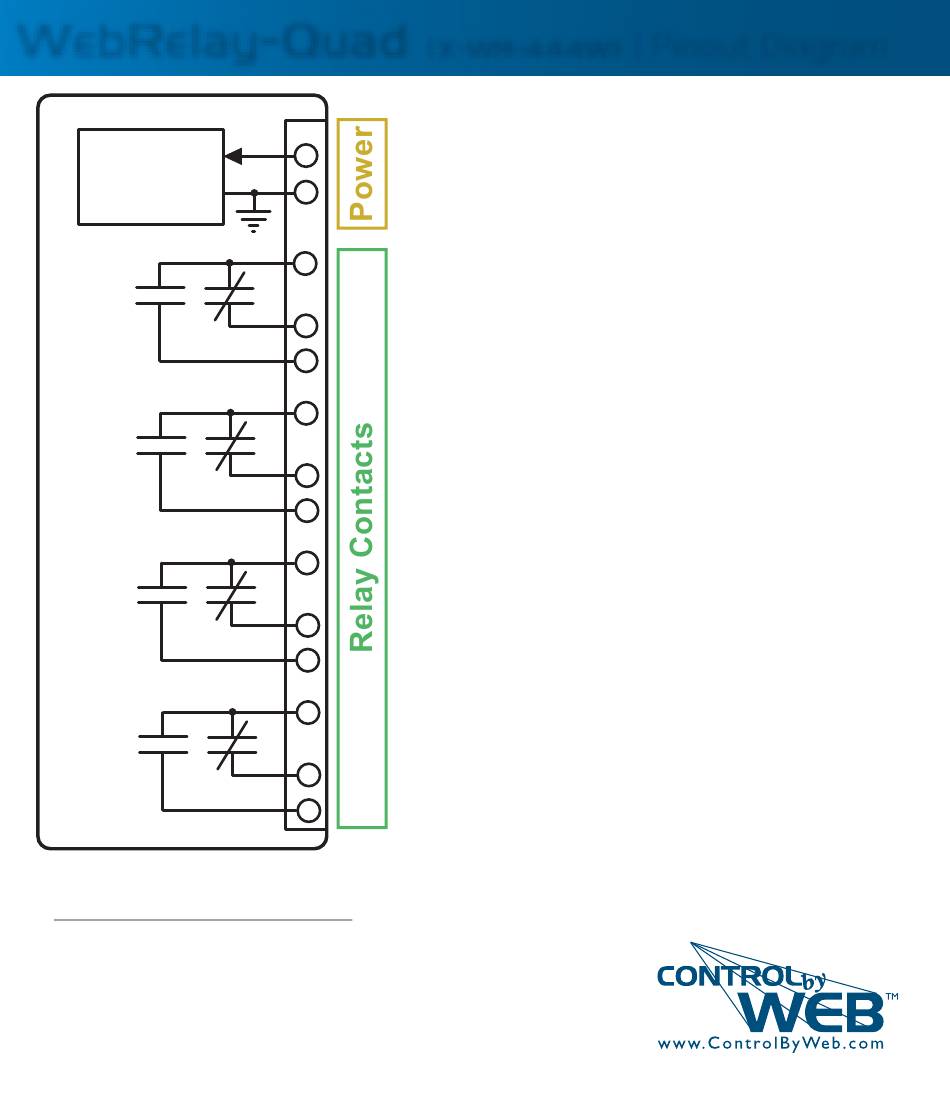

| Pinout Diagram
