Insignia NS-CLHD01 Quick Setup Manual

Congratulations on your purchase of a
high-quality Insignia product. Your
NS-CLHD01 represents the state of the art
in HD Radio™ design and is designed for
reliable and trouble-free performance.
Package contents
• HD Radio table top receiver
• FM dipole antenna
• AM loop antenna
• AC adapter
• User Guide
• Quick Setup Guide
• Quick Setup Guide for visually impaired users
• CD for voice recording of user guide
Installing the batteries
Note: The batteries will keep your clock running
in case of a power outage.
1 Open the battery compartment on the bottom
of your radio.
2 Place four AA size alkaline batteries (not
included) in the battery compartment. Make
sure to match the + and - on the battery to the
+ and - signs in the battery compartment.
3 Close the battery compartment until it clicks
into place.
Connecting the AC adapter
1 Plug the small connector at the end of the
power cord into the DC IN jack on the back of
your radio.
2 Plug the AC adapter into a 120/240V, 50/60Hz
power outlet.
Turning on your radio
• Press (power) on the top of your radio.
Setting the time
1 Press MENU to enter menu mode. The Main
menu opens.
2 Press SEEK  or SEEK  to select Time Set, then
press SEL. The Time set Option menu opens.
3 Press SEEK  or SEEK  to select Time set,
then press SEL. The Current Time set menu
opens.
4 Press CH  or CH  to set the hours.
5 Press PS  or PS  to set the minutes.
6 Press SEL to save the current time and return
to the Time Set sub menu.
7 Press MENU repeatedly to return to radio mode.
Features
Front view
Top view
Back and Bottom view
Preset indicator
FM indicator
LCD
Stereo/Mono
Signal strength indicator Current time
Multicast
channel number
HD Radio mode - Artist Experience display

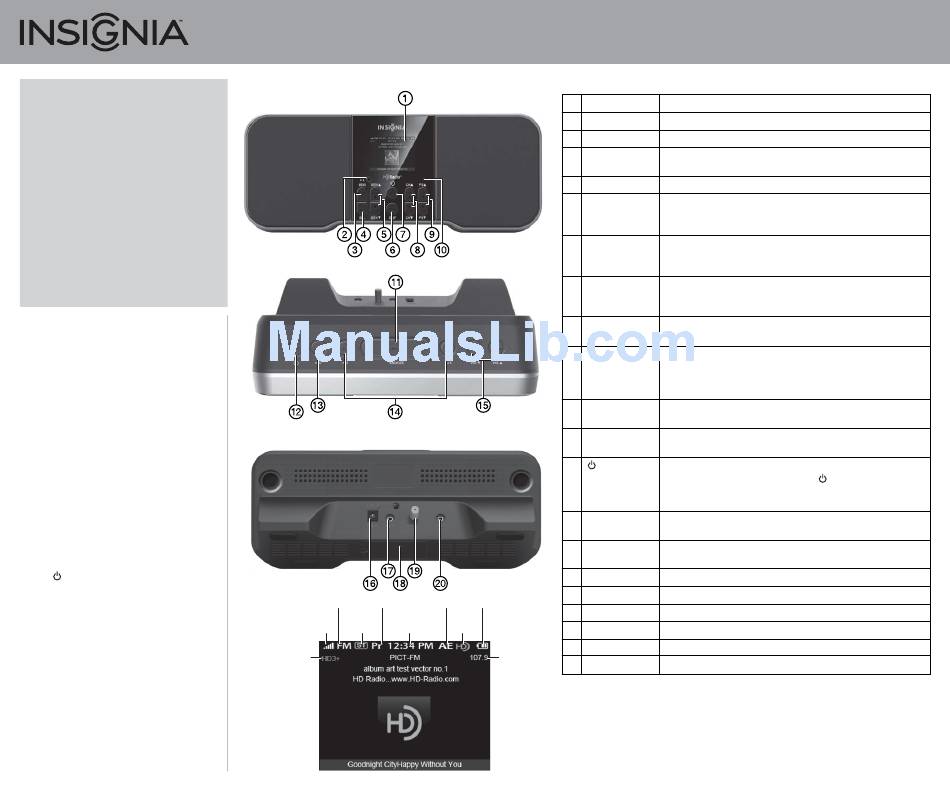

Advanced HD Radio™ Table Top NS-CLHD01
# Component
1 LCD
2 Headphone jack
3 MENU
4 SEL
SEEK /SEEK 
5
6 DISP
7 B)
CH /CH 
8
PS /PS 
9
10 Reset
11 SNOOZE
12 (power)
13 SRC
14 AL1/AL2
15 VOL /VOL 
16 12V DC
Battery status
AE/PG mode
indicator
17 AUX IN
HD Radio
indicator
18 Batteries IN
19 FM Ant.
Seek mode
20 AM Ant.
Quick Setup Guide
Description
Radio display screen.
Plug headphones into this jack.
Press to open or close the menu. In the menu, press to close a
sub-menu.
Press to select menu options or save the settings.
• In radio mode, press SEEK to go to the next lower or higher
station. For more information, see your User Guide.
• In menu mode, press to scroll down or up.
Press to switch between PG (Program Guide) mode and AE (Artist
Experience) mode in HD radio mode. For more information, see
your User Guide.
• In HD radio mode, press to bookmark the current audio selection.
• In menu mode, press to delete a bookmark.
For more information, see your User Guide.
Press to tune to the next lower or higher frequency. In time and
alarm set mode, press to adjust the hours up or down.
• Press to go to the next lower or higher preset station.
• Press and hold PS  to set a preset.
• Press and hold PS  to clear a preset.
For more information, see your User Guide.
If your radio stops responding to button presses, press this
button to reset your radio.
Press to turn off the alarm temporarily for a designated interval.
For more information, see your User Guide.
• Press to turn your radio on or off.
• In Clock mode, press and hold SEL + (power) together to
switch between normal mode and accessible mode for visually
impaired users.
Press repeatedly to cycle through the available sound sources
(AM>FM>AUX-IN).
In Clock mode, press to set Alarm 1 or 2. Press and hold to alarm
set menu opens. For more information, see your User Guide.
Press to lower or raise the volume.
Connect the AC adapter (provided) to this jack.
Connect an external sound source to this jack.
Installing four AA size alkaline batteries for clock backup
Connect an FM dipole antenna to this jack.
Connect an AM loop antenna to this jack.
