Summary of Contents for Insignia NS-CLLT01

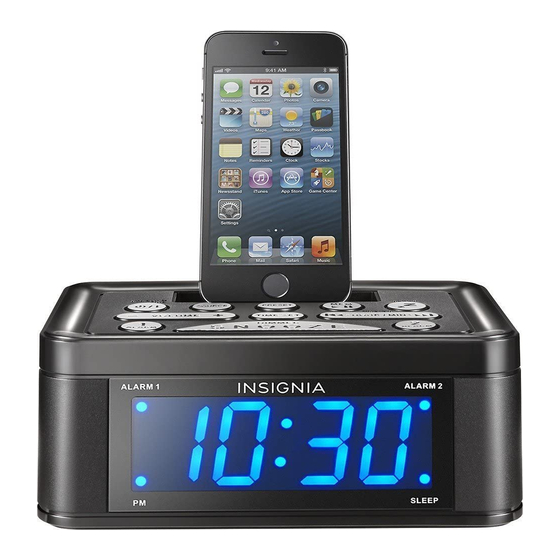

- Page 1 User Guide Digital FM Clock Radio with Dock for iPhone5 NS-CLLT01 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Legal notices........... .15 One-year limited warranty - Insignia ......17... -
Page 3: Important Safety Instructions
Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 Important Safety Instructions Electric shock warning CAUTION Risk of Electric Shock Do Not Open Warning To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. -
Page 4: Features
Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 • Refer all servicing to qualified service personnel. Servicing is required when the system has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the system, the system has been exposed to rain or moisture, does not operate normally, or has been dropped. - Page 5 Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 LCD Front Panel display Item Description ALARM 1 indicator When lit, indicates that alarm 1 is set. TIME/ALARM display In standby mode, shows the current time. In radio mode, shows the current freqency.
- Page 6 Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 Top panel STANDBY SLEEP / ON TUNING Item Description Lightning connector Connect your iPhone here to listen to it on the clock radio speakers. ® iPhone docking pad Holds your iPhone while it’s connected to the clock radio.
- Page 7 Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 Back panel Item Description Stereo speakers Provide sound for playback. FM antenna wire Improves FM radio reception. AUX IN jack Plug an external sound source, such as an MP3 player, into this connector using a 3.5mm plug.
-
Page 8: Set Up Your Clock Radio
Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 Set up your clock radio Install the backup batteries The clock radio uses a backup battery system to provide continuous alarm operation and clock settings in the event of a power failure. If the backup... -
Page 9: Set The Clock
Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 Connect the AC adapter Make sure that the AC power outlet matches the AC adapter’s power specifications (120 V ~ 60 Hz) prior to plugging in the adapter. 1 Plug the small DC power connector into the DC IN 5V jack on the back of your clock radio. -
Page 10: Use Your Clock Radio
Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 Use your clock radio Before using your clock radio, make sure that all connections are secure, then plug the AC adapter into your clock radio and an AC power outlet. -
Page 11: Use The Sleep Timer
Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 2 Press any button (except SNOOZE) to turn the alarm off for 24 hours. 3 Press ALARM 1 or ALARM 2 to deactivate the alarm. The alarm indicator on the display goes off. - Page 12 Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 5 Press (play/pause)/MEM (memory) button again to store the station as a preset. 6 Repeat steps 1 through 5 to save additional stations as presets. Recall radio station presets 1 Turn on your clock radio, then press the SOURCE button repeatedly to select FM (rAd).
-
Page 13: Your Clock Radio
Apple Inc., registered in the U.S. and other countries. • Lightning® is a trademark of Apple Inc. • Insignia is not responsible for any loss of or damage to ® your iPhone that might result from the use of this product. -
Page 14: Clean Your Clock Radio
Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 Clean your clock radio • Use a soft, dry, clean cloth to clean the exterior of your clock radio. • Do not let liquid drip into the inside of your clock radio. -
Page 15: Specifications
Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 Specifications Specifications are subject to change without notice. Power requirement 5V DC, 2.0 A Power consumption Max. 7 W - Standby <1W Dimensions 2.9 x 6.5 x 4.2 in. (7.3 x 16.5 x 10.7 cm) - Page 16 Insignia NS-CLLT01 Digital FM Clock Radio with Dock for iPhone5 This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling in accordance with your national legislation.
-
Page 17: One-Year Limited Warranty - Insignia
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 18 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” •...
- Page 19 INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2014 Best Buy. All rights reserved. Made in China 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com...
