Insignia NS-CLW01 User Manual

Insignia NS-CLW01 User Manual

Weatherband clock radio
Hide thumbs Also See for NS-CLW01:
Table of Contents

Advertisement

Quick Links

User Guide
Weatherband Clock Radio
NS-CLW01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-CLW01 and is the answer not in the manual?

Questions and answers

Related Manuals for Insignia NS-CLW01

Summary of Contents for Insignia NS-CLW01

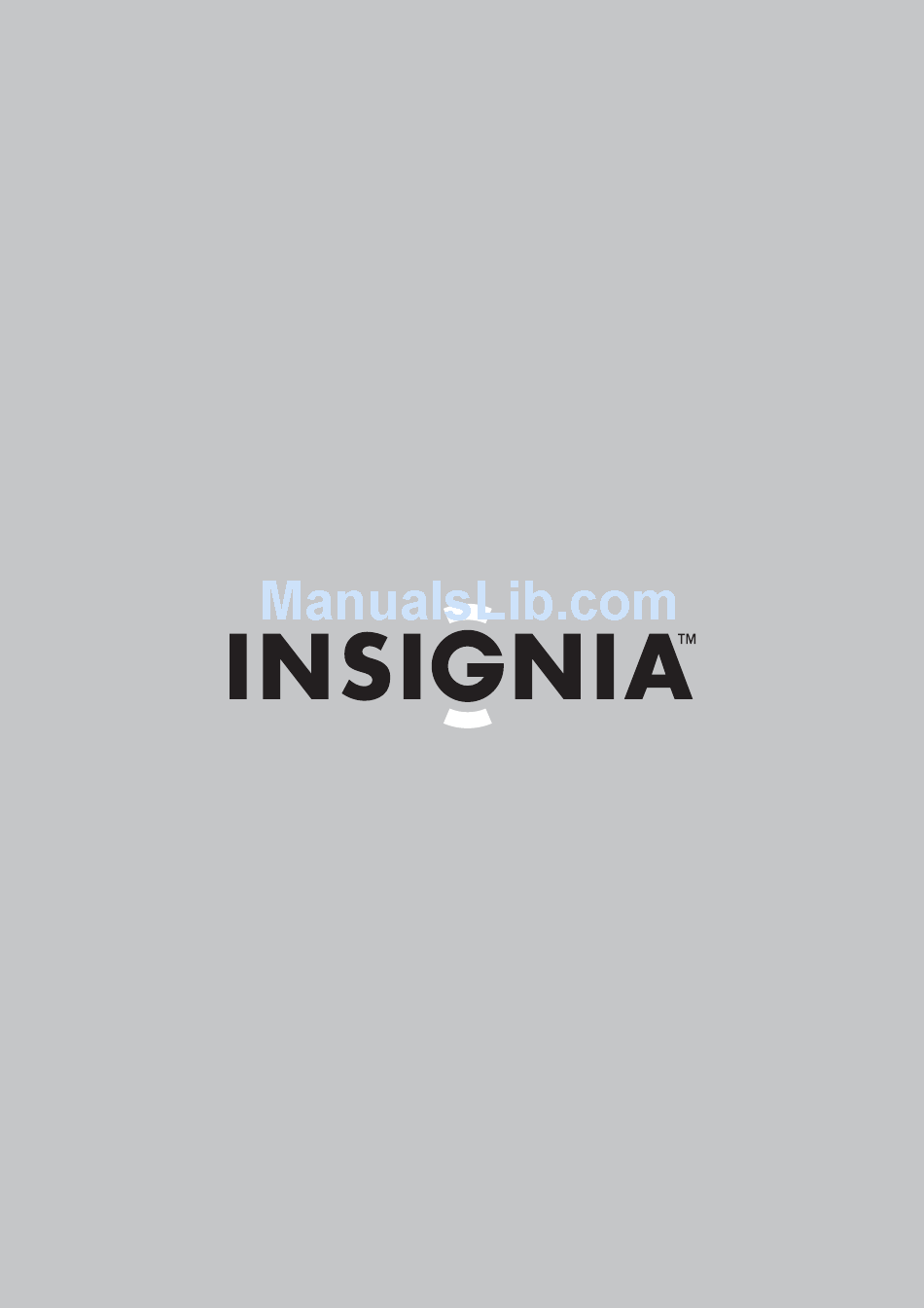

  • Page 1 User Guide Weatherband Clock Radio NS-CLW01...

  • Page 3: Table Of Contents

    Setting up your weatherband clock radio ....9 Using your weatherband clock radio ....12 Troubleshooting.
  • Page 4 Power sources—Use only the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult Insignia Technical Support or your local power company. For clock radios intended to operate from battery power or other sources, refer to the operating instructions.
  • Page 5 Insignia NS-CLW01 Weatherband Clock Radio • Object and liquid entry—Never insert objects of any kind into your weatherband clock radio through openings, because they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on your weatherband clock radio.

  • Page 6: Features

    WEATHER button SNOOZE/DIMMER button ALARM 2 button SLEEP button Insignia NS-CLW01 Weatherband Clock Radio Function Press to set Alarm 1. Press and hold for two seconds to set the time. Press and release to toggle between Fahrenheit and Centigrade temperature.
  • Page 7 Insignia NS-CLW01 Weatherband Clock Radio Description PRESET MEMORY button VOL+ button – button PRESET+ button – PRESET button LCD display Function Press to set radio station presets. Press to increase the radio volume. Press to decrease the radio volume. In radio mode, press to select the next preset station. In memory mode, press to select the preset number for the station.

  • Page 8: Lcd Display

    Shows the outdoor temperature in °F or °C. temperature Preset station Indicates the preset number selected. number Insignia NS-CLW01 Weatherband Clock Radio • Bell icon–wake to buzzer • Music note icon–wake to music • No icon–alarm 1 off • Bell icon–wake to buzzer •...

  • Page 9: Setting Up Your Weatherband Clock Radio

    Plugging in your weatherband clock radio To plug in your weatherband clock radio: 1 Place your weatherband clock radio in a convenient place and find an AC power outlet within range of the power cord. 2 Plug the power cord into the AC power outlet.
  • Page 10 • If your clock radio is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
  • Page 11 Insignia NS-CLW01 Weatherband Clock Radio 3 Insert one (1) CR2032 button cell battery (included) into the battery compartment. Make sure that the + symbol on the battery is facing up. 4 Reinstall the backup battery slot cover, then replace the four AA batteries (if necessary).

  • Page 12: Using Your Weatherband Clock Radio

    Using your weatherband clock radio Using the clock and alarm To set the clock: 1 Press and hold TIME SET/TEMP until the hour blinks on the display. 2 Press TUNE+ or TUNE– to set the hour. Insignia NS-CLW01 Weatherband Clock Radio www.insigniaproducts.com...
  • Page 13 Insignia NS-CLW01 Weatherband Clock Radio 3 Press TIME SET/TEMP. The minutes blink on the display. 4 Press TUNE+ or TUNE– to set the minutes. 5 Press TIME SET/TEMP to store the setting and return to standby mode. To set the alarm: You can set Alarm 1 for weekdays and Alarm 2 for weekends.

  • Page 14: Playing The Radio

    Playing the radio To play the radio: 1 Press RADIO ON/OFF to turn on your weatherband clock radio. • To select the radio band you want to listen to, press AM/FM. Insignia NS-CLW01 Weatherband Clock Radio...
  • Page 15 Insignia NS-CLW01 Weatherband Clock Radio • To tune the radio up or down and select the station you want, press TUNE+ or TUNE–. • To auto search for stations, press and hold TUNE+ or TUNE– for more than two seconds.

  • Page 16: Setting The Sleep Timer

    1 Press SLEEP once when the radio is on. The “SLEEP” indicator appears in the display, and “90” appears (blinking) on the display (indicating that the weatherband clock radio will turn off after 90 minutes). 2 Repeatedly press SLEEP to decrease the sleep timer in 10 minute increments.

  • Page 17: Troubleshooting

    To select the temperature display: • Press TIME SET/TEMP to toggle between °F and °C. Troubleshooting Caution Do not try to repair the clock radio yourself. Doing so will invalidate your warranty. Problem The radio does not turn on when RADIO ON/OFF is...

  • Page 18: Legal Notices

    • Consult the dealer or an experienced technician for help. Energy Star ® As an Energy Star Partner, Insignia has determined that his product or product models meet the Energy Star guidelines for energy efficiency. Insignia NS-CLW01 Weatherband Clock Radio...

  • Page 19: 90-Day Limited Warranty

    Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges.
  • Page 20 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage supply • Attempted repair by anyone other than a facility authorized by Insignia to service the Product • Products sold as is or with all faults •...
  • Page 21 7601 Penn Avenue South, Richfield, MN USA 55423-3645 © 2009 Best Buy Enterprise Services, Inc. All rights reserved. INSIGNIA is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
