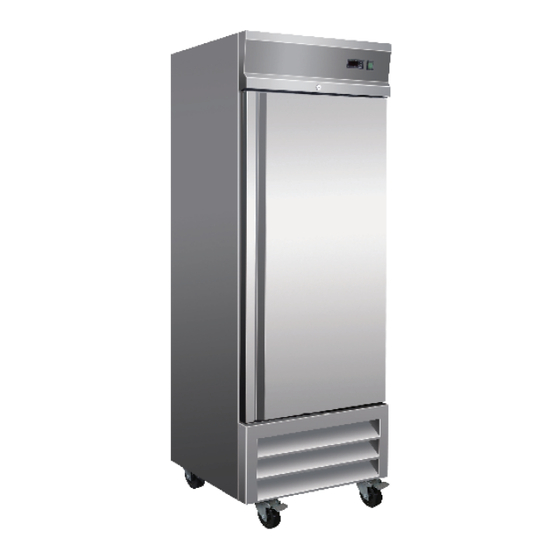

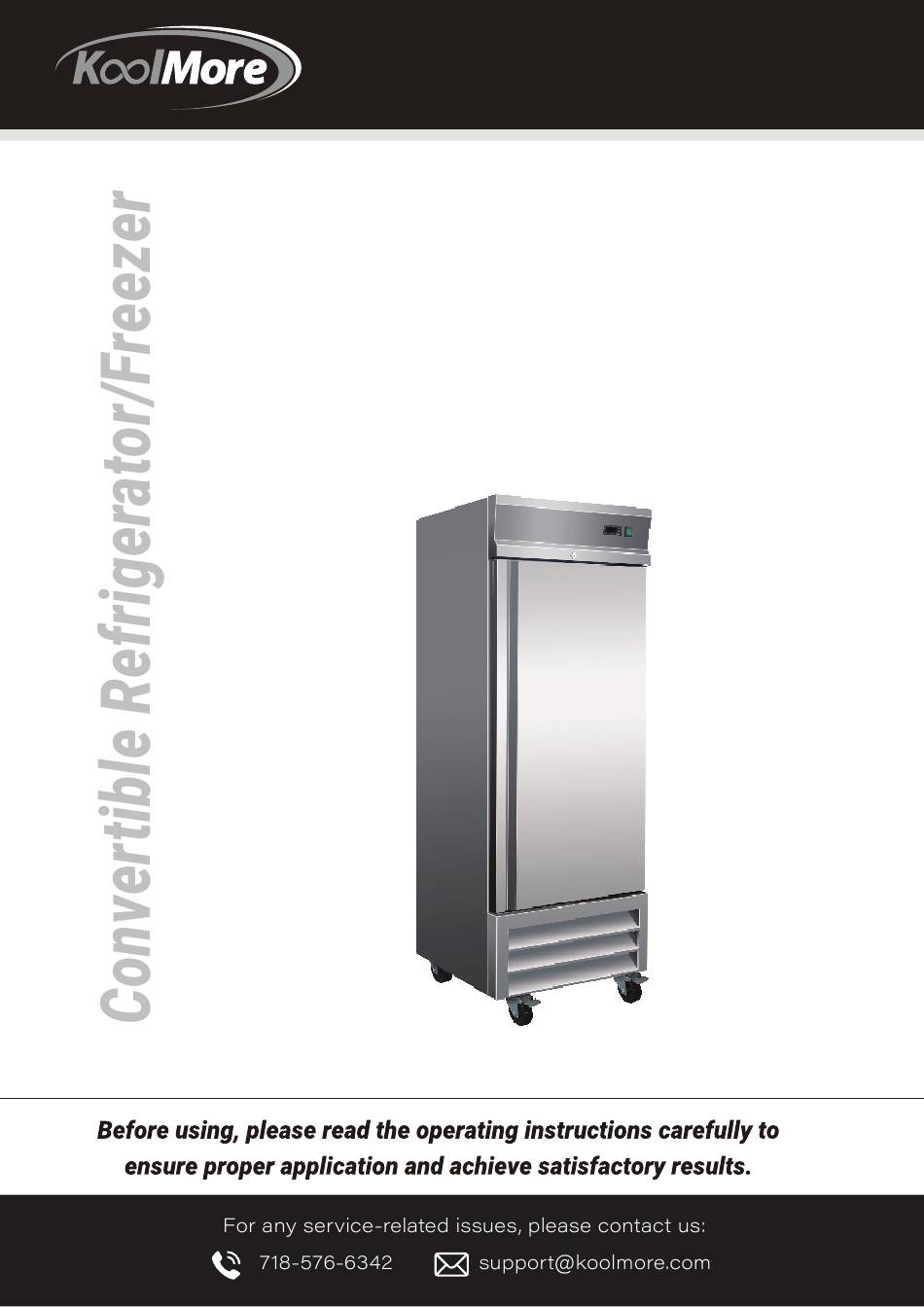

- Page 1 USER MANUAL KoolMore Stainless Steel Commercial Convertible Reach-In Refrigerator/Freezer Model: KM-RIC-1DGD, KM-RIC-1DSS, KM-RIC-2DGD, KM-RIC-2DSS...
- Page 2 Stay informed with the latest information for your KoolMore Appliance. If you need any assistance or have questions, our customer support team is here to help.
- Page 3 WARNING Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. Our product instructions will be uploaded on our company official website. This is the Safety Alert Symbol.
- Page 4 clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING: Do not damage the refrigerant circuit. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
-
Page 5: Installation
INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. Reinforce the floor as necessary to provide for maxi- mum loading. -
Page 6: Operation
OPERATION CAUTION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. Refrigerated cycle Refrigerators: During the refrigeration cycle, the evaporator fans will run continuously even when one or more doors are open. The door switch will activate the lights when opened. 1. -
Page 7: Main Functions
1.1 LED’s MODE SIGNIFICANCE Compressor enabled Flashing Anti-short cycle delay enabled (AC parameter) Defrost in progress Flashing Dripping in progress Fans output enabled Flashing Fans delay after defrost Measurement unit Flashing Programming mode Measurement unit Flashing Programming mode MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT Push and immediately release the SET key: the display will show the set point value. - Page 8 HOW TO SWITCH BETWEEN FREEZER AND REFRIGERATOR MODE 1. The factory setting for this unit was a freezer. 2. The controller has a button R/F to switch between freezer and refrigerator. 2.1 How to change a refrigerator to freezer Press the button R/F for 3 seconds, the controller will display LT, then the unit enter into freezer mode.
- Page 9 MANTENANCE DANGER The unit must be turned OFF and disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner.
- Page 10 to breakdown the steel and begin to form rust of discoloration. Proper cleaning of stainless steel requires soft cloths or plastic scouring pads, NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS! Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will damage the protective film of the stainless steel.
-
Page 11: Circuit Diagram
CIRCUIT DIAGRAM MODEL: KM-RIC-1DSS MODEL: KM-RIC-1DGD... - Page 12 At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replacement appliance will carry the warranty for the remaining term of the original unit's warranty period.
