Summary of Contents for KoolMore KM-RERFDSS-18C

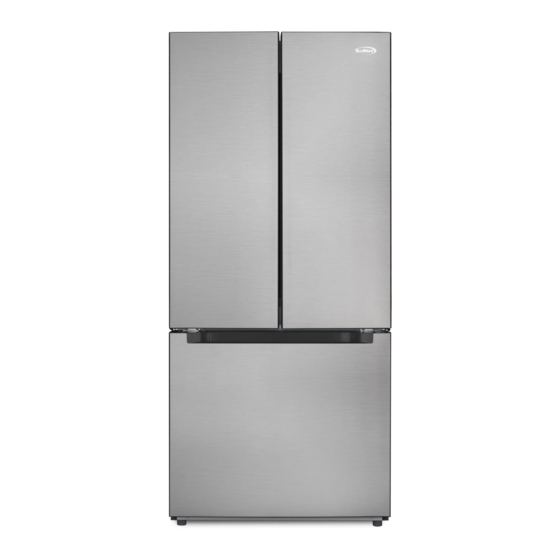

- Page 1 USER MANUAL 18.4 cu.ft. Stainless Steel French Door Refrigerator Model: KM-RERFDSS-18C For any service-related Issues, please contact us: Phone Number: 718-576-6342 Email address: support@koolmore.com...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS -------------------------------------------- PRODUCT OVERVIEW ----------------------------------------- PRODUCT INSTALLATION ------------------------------------ OPERATION INSTRUCTIONS --------------------------------- CLEANING AND MAINTENANCE ---------------------------- TROUBLESHOOTING -------------------------------------------... -
Page 3: Safety Warnings
SAFETY WARNINGS Warning: risk of fire / flammable materials • This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments;... -
Page 4: Product Overview
PRODUCT OVERVIEW Names of components Door tray Quick cold dial block Shelf Fruit and vegetable box Fruit and vegetable box Upper freezer drawer LED lighting Lower freezer drawer Control and display panel ATTENTION The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor... -
Page 5: Product Installation
PRODUCT INSTALLATION Install Instruction Installing an Optional Ice Maker The refrigerator comes set up for ice maker installation, This refrigerator is compatible with Midea IM1900MD ice maker. Please refer to individual ice maker installation instruction manual. • WARNING: Connect to potable water supply only. •... - Page 6 Space requirement diagram (when the door is open and when the door is closed) 135 ° Depth Width Overall Depth Width Depth doors open doors open Height Wiht handle 1692 1038 1277 Notice: All dimensions in mm...
-
Page 7: Leveling Feet
Leveling feet To avoid vibration, the unit must be leveled. If required, adjust the leveling screws to compensate for the uneven floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws counterclockwise to raise the unit, clockwise lower it. -
Page 8: Changing The Light
Changing the light • Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. Connecting the appliance After installing the appliance, connect the power plug into a socket outlet. ATTENTION •... -
Page 9: Operation Instructions
OPERATION INSTRUCTIONS Control panal Alarm/power off/power on button Freezer button Fridge button Display When the initial power is up, it is 3 seconds, While the boot bell rings, and then goes into normal operation display. (Refrigerator and freezer are mid-range at the time of first power-up) Display fault code in the event of a failure (Loop display);... - Page 10 Operating instructions Refrigerator settings • Press the refrigeration key to adjust the refrigeration set gear, each press the refrigeration key once, the gear change one gear, the order is as follows: ℃ ℃ ℃ Freezer settings • Press the refrigeration key to adjust the refrigeration set gear, each press the refrigeration key once, the gear change one gear, the order is as follows: ℃...
-
Page 11: Cooling Compartment
Tips on storing food Freezer compartment • The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice. • Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing. -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Defrosting • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. Cleaning of door tray •... -
Page 13: Stop Using
• First pull out the fruit and vegetable box, because the fruit and vegetable box has a stop, it needs to lift be lifted upward before the fruit and vegetable box can be removed. • The roller seat is stuck in the box tank groove, press the arrow in the direction of the image, remove the roller seat, clean the box tank groove as needed. -
Page 14: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. Problem Possible reason • Check whether the appliance is connected to power or whether the plug is in well contact Failed operation •... - Page 15 Problem Possible reason • Remove foreign matters on the door seal Door seal fails to be tight • Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating) •...
- Page 16 LIMITED WARRANTY KOOLMORE SUPPLY, INC. warrants to the original consumer or purchaser this KOOLMORE product is free from defects in material or workmanship for a period of One (1) year from the date of purchase. If any such defect is discovered within the warranty period, KOOLMORE SUPPLY, INC., at its discretion, will repair or replace the product at no cost or pay for...
