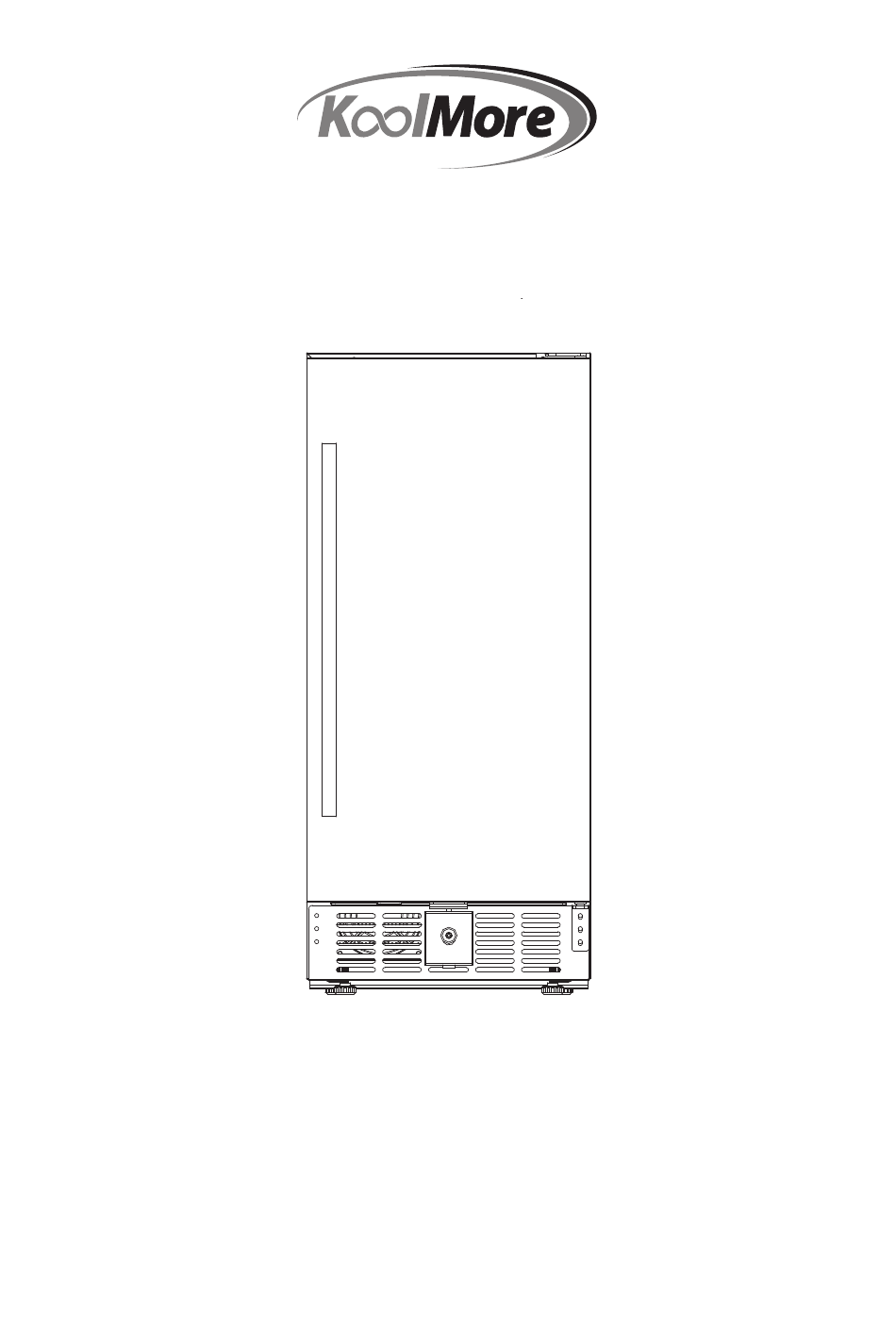

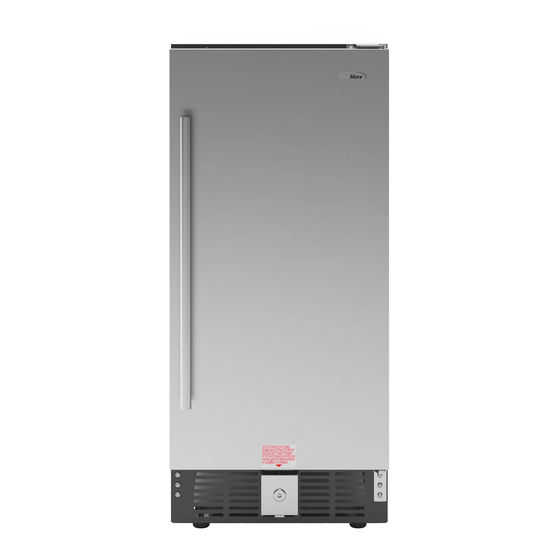

Undercounter 15"
Refrigerator
Instruction Manual
Model: KM-BIR3C-SS
Thank you for purchasing our product!
Before returning to retailer, if you are having trouble with your unit, for assembly
assistance, missing or damaged parts.
Please contact customer service Phone: 718-576-6342
Email: support@koolmore.com
We are here to help.
Thank you!
Advertisement
Table of Contents
Related Manuals for KoolMore KM-BIR3C-SS
Summary of Contents for KoolMore KM-BIR3C-SS
- Page 1 Undercounter 15" Refrigerator Instruction Manual Model: KM-BIR3C-SS Thank you for purchasing our product! Before returning to retailer, if you are having trouble with your unit, for assembly assistance, missing or damaged parts. Please contact customer service Phone: 718-576-6342 Email: support@koolmore.com We are here to help.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Before Use....…………………………………………………………………..2 Energy Saving Tips..…………………………………………………………………..2 Important Safety Instructions…………………………………………………………….2 Included Parts..………………………………………………………………………..5 Specifications………………………………………………………………………………6 How To Operate: Starting Your New Refrigerator………………………………………….………..6 Button Panel Operation……….……………………………………………………6 How To Clean……………………..……………………………………………..……..7 How To Install………………………………………………………………………….…. ..7 Care And Maintenance………………………………………………………….………...8 Handle Installation Guide................... 1 0 Troubleshooting Guide What To Do………………………………………………………………………….11 Limited Service Warranty ….……………………………………………………………….12... -
Page 3: Before Use
BEFORE USE Before connecting the appliance to the power supply, let the unit stand upright for 4 hours, which will reduce the possibility of the cooling system malfunctioning due to improper handling and moving during transportation or installation. Clean your unit thoroughly before use. (See “How to Clean”) ... - Page 4 WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. This appliance is intended to be used in household and similar applications such as -staff kitchen areas in shops, offices and other environments; -farm houses and by clients in hotels, motels and other residential type environments;...
- Page 5 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 6: Included Parts
NAME OF THE PARTS ⑴ Operation Panel: ⑵ Removable Food Shelf ⑶ Hot Air Outlet Frame Height adjustable feet ⑷ Door ⑸ Door Handle (Assembly required) ⑹ Lock... -
Page 7: Specifications
SPECIFICATIONS Product Description Compact Refrigerator Model No. KM-BIR3C-SS Capacity Cu.Ft. Electrical Rating 115V~/60Hz/0.9 A Refrigerant R600a, 0.67 Oz/19 g Unit Dimensions With Width Depth(With handle) Height Feet (Inches) 15.0’’（380mm） 22.5”(572mm) 33.8 ”(860mm) 57.80lbs Net Weight (Lbs) HOW TO OPERATE Starting Your New Refrigerator Important: If the unit is brought in from outside in the winter season, give it a few hours to warm up to room temperature before plugging it in. -
Page 8: How To Clean
Setting Range: 32-50 Fahrenheit. The default setting is 39 Fahrenheit. Interior Light Control The unit has built in with the LED light in the cooling compartment. The internal LED light is controlled by the magnetic door switch and the light button “ ”... -
Page 9: Care And Maintenance
For free standing installation, suggest to allow 2 inches of space between the unit’s side, rear and the wall. In addition, sufficient clearance (160°) should be maintained to allow the door to open properly and completely. The appliance must be correctly connected to the power supply, 115V/60Hz, and grounded. ... - Page 10 non-grounded outlet. To avoid heat damage to the power cord, please ensure that it does not come in proximity or in direct contact with the compressor of the refrigerator. Please avoid installing the refrigerator in a location where the appliance will come in contact with water or moisture to minimize rusting of metal parts.
-
Page 11: Handle Installation Guide
HANDLE INSTALLATION GUIDE TOOLS NEEDED: Phillips screwdriver #2 and inner hexagon tool. IMPORTANT: NEVER LAY THE REFRIGERAOR ON ITS BACK. The compressor components are installed at the back of the unit and may easily be damaged if the refrigerator is placed on its back. Step1: Step2: Step3:... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE WHAT TO DO … When the fridge is not in use for a prolonged period: Remove the plug from the outlet. Remove all contents from the fridge. Dry the interior and leave the door open for a few days. ... -
Page 13: Limited Service Warranty
Coverage Limita ons The 1 year parts and labor warranty and 5 year compressor warranty do not cover: • Failure to install and/or use equipment within proper opera ng condi ons specified by Koolmore. This includes but is not limited to residen outdoor, or mobile applica ons.
