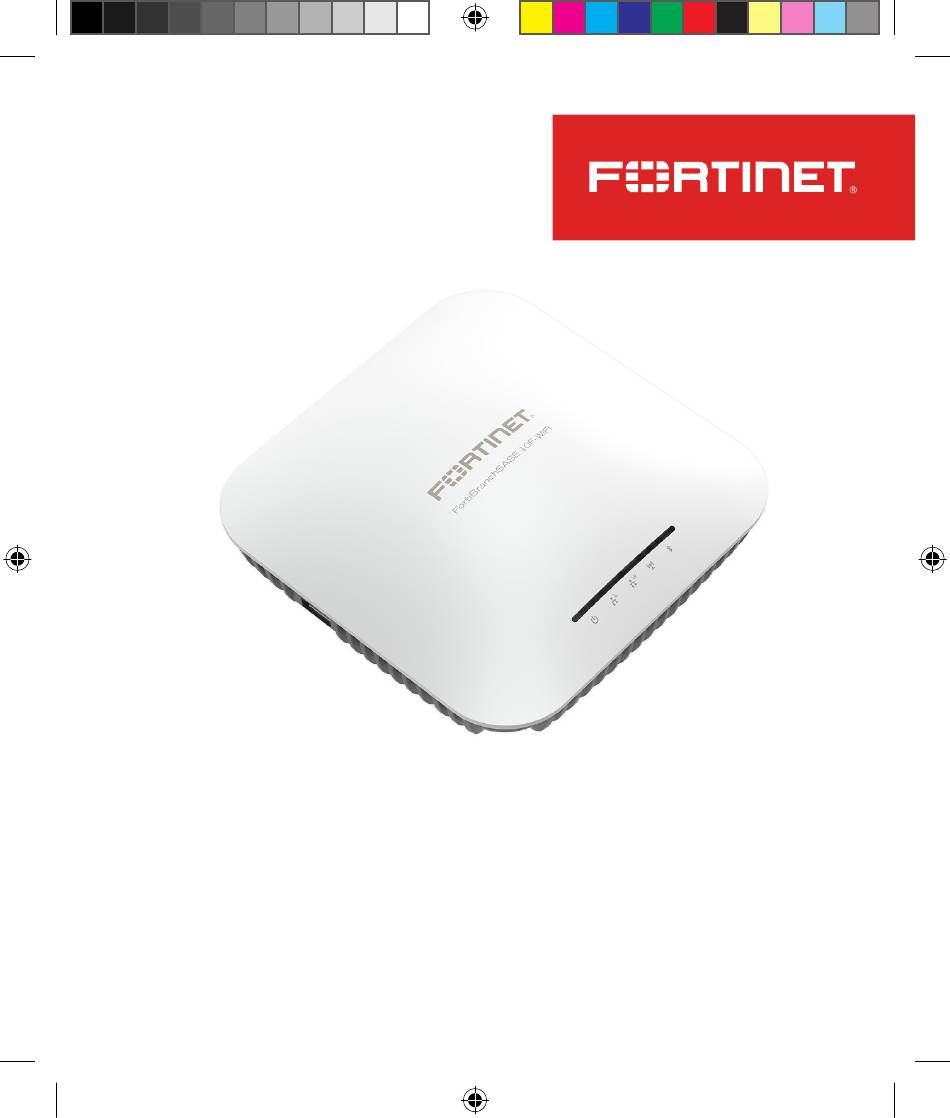

- Page 1 FortiBranchSASE 10F–WiFi FBS-10F-WiFi QuickStart Guide FortiBranchSASE-10F-WiFi-QSG.indd 1 FortiBranchSASE-10F-WiFi-QSG.indd 1 5/9/2024 9:19:48 AM 5/9/2024 9:19:48 AM...
- Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or development, and circumstances may change such that any forward-looking statements herein are not accurate.
- Page 3 Register for Support Register your Fortinet product to receive: • Technical Support • New product features • Protection from new threats Vous devez enregistrer le produit pour recevoir: • Support technique • Nouvelles fonctionnalités du produit • Protection contre de nouvelles menaces La reistrazione ti permette di usufruire di: •...
-
Page 4: Package Contents
Package Contents QuickStart Guide FortiBranchSASE 10F–WiFi (Model: FBS-10F-WiFi) 8 Mounting Screws with 8 Anchors 4 Rubber Feet Wall-Mounting Bracket Drill Template Sticker FortiBranchSASE-10F-WiFi-QSG.indd 4 FortiBranchSASE-10F-WiFi-QSG.indd 4 5/9/2024 9:19:49 AM 5/9/2024 9:19:49 AM... -
Page 5: Led Indicators
LED Indicators Power (PoE 802.3at or 12V DC 3A) WiFi (5GHz & 2.4GHz 2x2 MU-MIMO) Off: Device is off. Off: Radios 1 and 2 are off. Green: Device is on. Blue: Radio 1 is on. Green: Device is booting up. Blinking Blue: Radio 1 is transmitting data. - Page 6 Interfaces OPTIONAL POWER (12V DC) Optional 12V DC/3A adapter. RESET resets the device. CONSOLE (RJ-45) CLI management computer interface. WAN (RJ-45) 1 Gbps Ethernet interface. LAN/POE (RJ-45) 1 Gbps 802.3at PoE Ethernet interface. USB 3.0 (Type A) software-enabled power through the GPIO, 5V/0.5A. FortiBranchSASE-10F-WiFi-QSG.indd 6 FortiBranchSASE-10F-WiFi-QSG.indd 6 5/9/2024 9:19:50 AM...
- Page 7 Mounting Slots and Rubber Feet MOUNTING SLOTS hang the unit to the wall. RUBBER FEET protect the unit and the desktop or flat surface. KENSINGTON LOCK secures the unit to a stationary object. FortiBranchSASE-10F-WiFi-QSG.indd 7 FortiBranchSASE-10F-WiFi-QSG.indd 7 5/9/2024 9:19:51 AM 5/9/2024 9:19:51 AM...
-
Page 8: Basic Connection
Basic Connection FortiGate/Network Device FortiExtender Internet Connection LAN/PoE 1. Insert one end of the Ethernet cable into the LAN/PoE port on the FortiExtender device. 2. Insert the other end of the Ethernet cable into the PoE LAN port of your FortiGate appliance, and ensure that the FortiGate interface provides DHCP server service to issue an IP address to the FortiExtender when connected to LAN/POE of the FortiExtender. - Page 9 IP Configuration After you have connected the FortiExtender network interfaces, the device automatically attempts to obtain an IP address from the DHCP server. If the device fails to obtain a DHCP IP, it will be set to the default IP address of 192.168.1.2/24. Alternatively, FortiBranchSASE 10F–WiFi (Model: FBS-10F-WiFi) comes with a default wireless LAN management interface.
-
Page 10: Installation
Installation The FortiBranchSASE 10F–WiFi (Model: FBS-10F-WiFi) device is designed to be placed on a desk or mounted on a wall using the provided Wall-Mounting Bracket. Place on top of a desk or flat surface 1. Attach the rubber feet to the four corners on the bottom of the unit. 2. - Page 11 Mount on a wall 1. Peel off the drill template sticker, and stick it to a desired location on the wall. 2. Use the template to mark and drill the pilot holes. 3. Insert the anchors into the holes. 4. Insert the screws through the four mounting holes of the wall mounting bracket into the anchors on the wall and tighten.
- Page 12 Cautions and Warnings WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Environmental specifications This equipment complies with FCC radiation exposure limits set forth Ambient operating temperature: 0°C to 45°C.
- Page 13 Fortinet or Fortinet’s authorized partners may indicated for that type, are strictly prohibited for use with this device. not comply with EU Directives and Fortinet makes no assurances for such products. Le présent émetteur radio (IC: 7280B-2317T096 / Model: FBS- 10F-WiFi) a été...
- Page 14 Este produto está em conformidade com a Diretiva 2014/53/UE. The full Declaration of Conformity for this product is available in the link below: Rumunski https://site.fortinet.com/ProductRegulatory/UK Acest produs este în conformitate cu Directiva 2014/53/UE. The device is restricted to indoor use only when operating in the Slovensky 5150 to 5350 MHz frequency range in the following countries: Tento produkt je v súlade so smernicou 2014/53/EÚ.
- Page 15 For Product License Agreement/EULA and Warranty Terms, visit https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf FortiBranchSASE-10F-WiFi-QSG.indd 15 FortiBranchSASE-10F-WiFi-QSG.indd 15 5/9/2024 9:19:52 AM 5/9/2024 9:19:52 AM...
- Page 16 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. http://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
