Summary of Contents for NuTone 1050-J

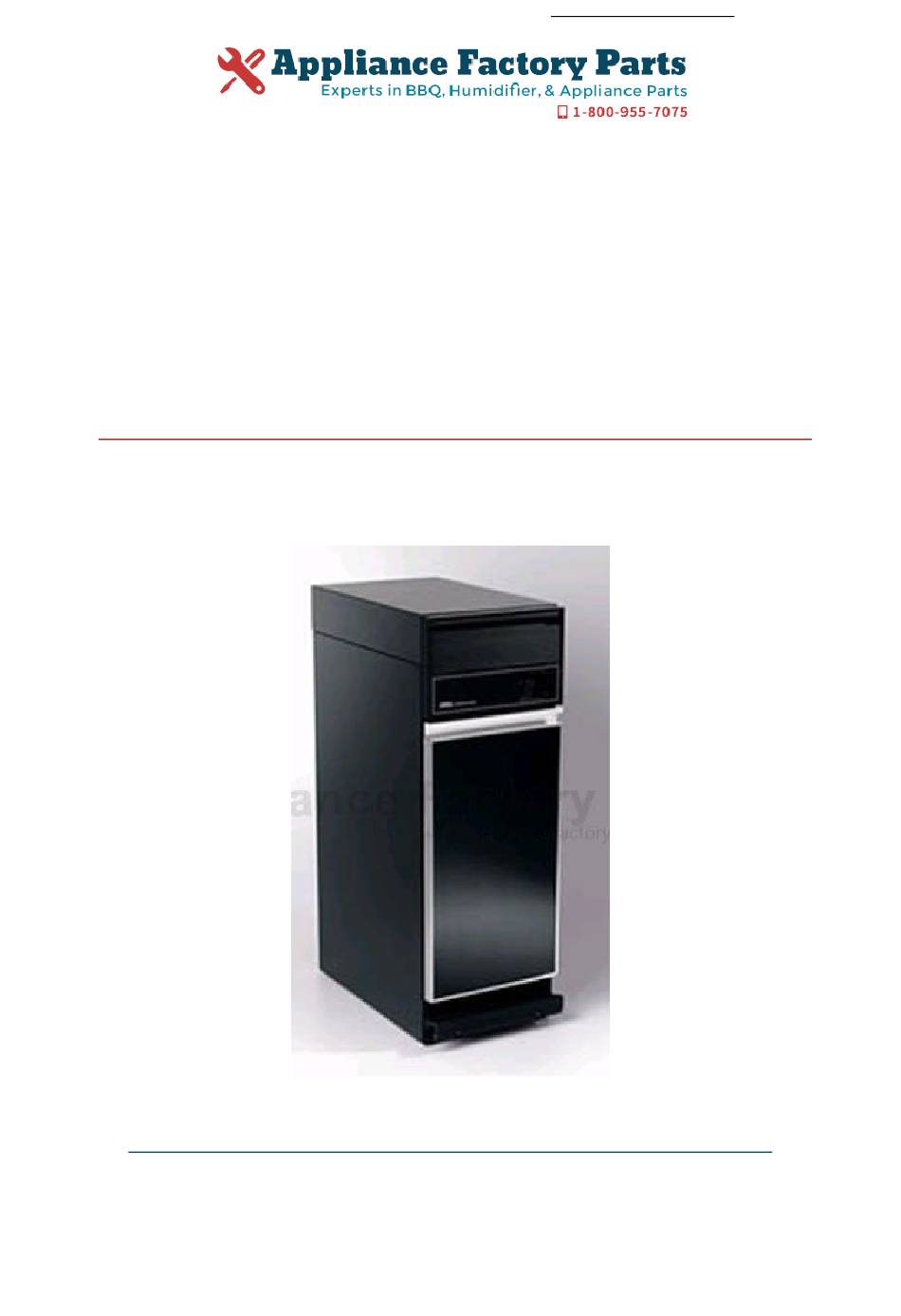

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. BROAN 1050 Owner's Manual Shop genuine replacement parts for BROAN 1050 Find Your BROAN HVAC Parts - Select From 1309 Models -------- Manual continues below --------...
  • Page 2 TRASH COMPACTOR SERVICE MANUAL MODEL MODELS 1050-J & 1051-J 1052-B This service manual is only for compactor models shown. Service manuals for additional compactor models are available from your Broan representative. Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)

  • Page 3: Table Of Contents

    CONTENTS BAG INSTALLATION Safety Precautions ..............2 DO NOT use plastic bags other than those which have been de- Model and Serial No. Identification ......... 2 signed for use in this compactor. Unauthorized bags can be- Transporting Compactor ............2 come caught in the mechanism.

  • Page 4: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Condition Possible Cause Correction Special Notes Will not run. Dead - Not plugged in securely. Insert plug securely into no sound. (Turn key outlet. to start, if unit hums, go to section III. Circuit breaker or fuse Check for condition Compactor should be on open.
  • Page 5 TROUBLESHOOTING GUIDE Condition Possible Cause Correction Special Notes IV. Starts and reverses Defective upper limit Replace. It is not necessary to immediately. Will not switch. replace motor. go down into drawer. Didn’t hold key long Try again. Rhythmic buzzing. enough. V.

  • Page 6: Bottom Assembly

    CABINET REPLACEMENT - POWER DRAWER ASSEMBLY PACK REMOVAL 1. Pull out drawer until it stops. 2. Lift drawer slightly, then pull out drawer to second stop. A box or similar stand approximately 11” high x 15” long x 7” wide 3.

  • Page 7: Component Replacement

    SWITCH LOCATIONS KEY SWITCH the door. Another switch located against the interlock switch is the door. Another switch located against the interlock switch is INTERLOCK to provide the “No-Jam” circuitry function. This switch is nor- SWITCH mally open and bypasses the interlock to provide “No-Jam” ca- pability.

  • Page 8: Greasing Compactor Mechanism

    TRUNNION BEARING GEARBOX 1. Remove sprocket and drive pin. 1. Lower ram manually until there is approximately 11" to 12" between the ram and the bottom assembly. 2. Pull out trunnion bearing. 2. Remove the four 3/8" nuts securing motor to gearbox, slide Grease trunnion bearing inside and out with wheel bearing grease motor out and rest it on the front trunnion assembly.

  • Page 9: Wiring Schematic

    BLACK GRAY MOTOR GREEN Before motor is removed, it should be tested to be sure it is inoperative. Check the continuity of the motor. ORANGE CHECK CONTINUITY Black to Orange If open, replace motor Red to Orange If open, replace motor Gray to Orange If open, replace motor Green to Motor Frame...
  • Page 10 MODELS 1050-J, 1051-J, 1052-B Service Parts Page 1 of 4 ITEM NO. PART NO. DESCRIPTION 92008659 Back Panel 93150459 Screw, #8-18 x 1/2 PH. TR. HD. - Standard 93150458 Screw, #10-16 x 3-1/2 PH. TR. HD. - Standard 92005968 Control Panel Bracket...
  • Page 11 FRONT MODELS 1050-J, 1051-J, 1052-B Service Parts Page 2 of 4 ITEM NO. PART NO. DESCRIPTION 91014197 Switch Assembly, Top Limit (Includes Switch) 99260330 Nut, Kep #10-32 93170263 Bolt - Special 7/16-20 x 1-5/8 93390127 Top Rail Assembly, Right 93390126...
  • Page 12 MODELS 1050-J, 1051-J, 1052-B Service Parts Page 3 of 4 ITEM NO. PART NO. DESCRIPTION 99260330 Nut, Kep #10-32 93170263 Bolt, Special 7/16-20 x 1-5/8 92004582 Link, Main 2-Hole 91005183 Link Assembly, Peened 91009323 Motor (Includes Centrifugal Switch & Pinion)

  • Page 13: Parts Lists

    MODELS 1050-J, 1051-J, 1052-B Service Parts Page 4 of 4 Model 1052 ITEM NO. PART NO. DESCRIPTION 93150459 Screw, 8-18 x 1/2 PH. TR. HD. - Standard 93470012 Rollers 93260447 Nut, Whizlock 5/16-18 93042445 Owners Manual (Models 1050 & 1051) 91011634 Door Liner Assembly (Includes Item No.
