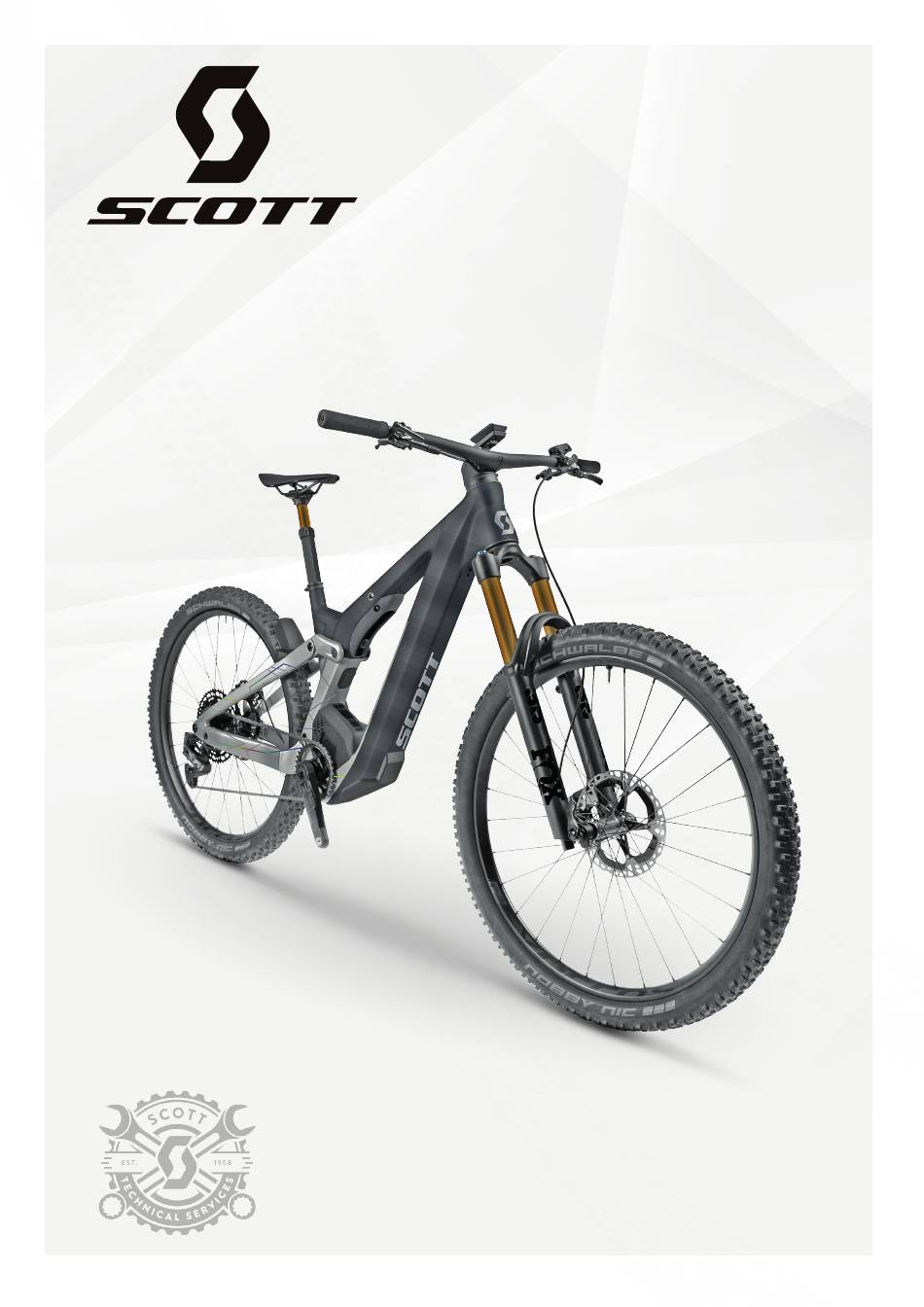

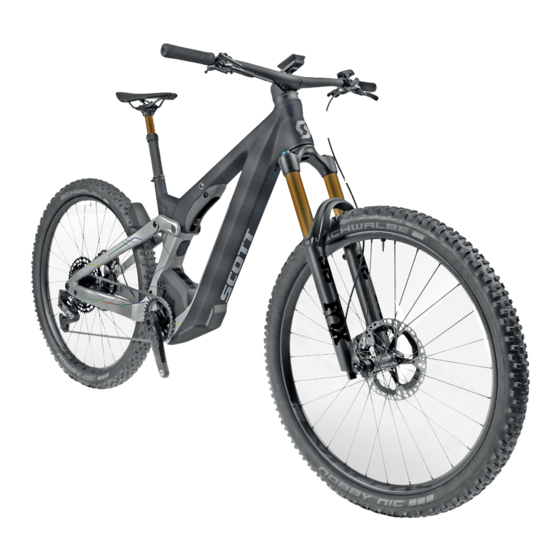

  • Page 1 PATRON MY22 TECH MANUAL...

  • Page 2: Technical Data

    Technical Data: Seatpost: 31.6 mm Seatpost Clamp: 34.9 mm Travel: 160 mm F & R Shock Length: 205 mm E2E Shock Stroke: 60 mm Hardware M/Frame: Trunnion Hardware Linkage: 17 x 10 mm Chainring Max: 38 T Chain Line: 52 mm Tyre Width Max: 2.6”...
  • Page 3 Geometry: MY22 Patron eRIDE Small Medium Large X/Large HEAD TUBE ANGLE 64.5° 65° 65° 65° HEAD TUBE LENGTH 120 mm 125 mm 135 mm 145 mm TOP TUBE HORIZONTAL 579.4 mm 595 mm 625.6 mm 656.4 mm STANDOVER HEIGHT 766 mm 766 mm 766 mm 766 mm...
  • Page 4 PLEASE TAKE NOTE OF THE BELOW ICONS THROUGHOUT THIS MANUAL FOR SAFE PRACTISE EASY TECHNICAL STEP IMPORTANT TECHNICAL STEP (Take your time, get it right) NO GREASE WITH GREASE THREADLOC BEARING FIT WARNING/CAUTION TORQUE CHECK ENGLISH / PATRON TECH MANUAL...
  • Page 5 Hangers & Axles: The Patron has only one rear hanger, this is the SRAM UDH. This is available from your SRAM supplier, it is only available via Scott if you do not have a supplier in your region. 286000 - SCO Dropout Sram UDH 21...
  • Page 6 The new rear axle is the same as the Spark and contains a “plug in“ tool T30/T25 and M6 Hex key: 290016 - SCO Axle RWS Rear 148x12 Spark Plug 22 The Axle must be assembled with grease, and torqued to 10Nm.
  • Page 7 Maximum Seatpost Insertion: Is the same for both carbon and allow front triangles. S= 245mm M=265mm L=300mm XL=315mm ENGLISH / PATRON TECH MANUAL...
  • Page 8 Cockpit: The Patron has the new E-bike specific Hixon Handlebar with integrated cable routing: 292623 SCO eRIDE Bar SY Hixon IC Patron Wty 22 The Patron Headset will be: 288252 SYN Headset ZS66/28.6 – ZS66/46 There is a new spacer kit for the Patron Stem and handlebar: Spacer kit will include Stem and Top cover, headtube cover and 2pcs of 5mm and 3pcs of 10mm spacers.
  • Page 9 Cable Guides & Covers: The Patron cable routing is internal, the following guides and covers are available: Chainstay Protector: 292692 SCO eRIDE CST protector Patron 22 Main Pivot cover: 292633 SCO eRIDE M/P cover Patron 22 Cable Guide Kit & Chain Guide. 294279 SCO eRIDE cableguide set 294278 SCO eRIDE Chainguide Patron 22...
  • Page 10 The Patron Features the new thinner cable housings from Jagwire. We have them as a set available in markets with no Jagwire service. Each kit contains 3 cables and housings a 1800mm. 294433 SCO Cable kit Spark 22 seatpost / shock / fork, 3mm / outer x3 1.8m / 1mm inner x4 1.5m plus end caps The shock covers will be different for alloy and carbon front triangles.
  • Page 11 Shock/Suspension: The shock bush kit has a custom size (17x10mm) for the Patron frame and not a standard aftersales spare part from your FOX agent. 294280 SCO eRIDE Shock mount bush Fox Patron 22 We will carry the rear shocks as spare parts. They are solely for sales in markets without a fox service distribution.
  • Page 12 There is a new twinloc system in MY22, with 4 different options in one kit. (Please refer to the Twinloc chapter of the MY22 techbook for more information when available). For bikes with no dropper seatpost the lower lever should be removed and the SP41 cable mount swapped.
  • Page 13 Linkage Overview: The Patron MY22 has a simple Bearing system that can be easily maintained, there are however some points that should be noted. There is a new Swingarm repair kit for the Patron: 291731 SCO eRIDE Swingarm Rep kit Patron 22...
  • Page 14 Linkage/Seatstay Overview Main Linkage Overview ENGLISH / PATRON TECH MANUAL...
  • Page 15 Chainstay/Seatstay Overview Shock Installation Overview 294281 SCO eRIDE Shock mount bolt kit Patron 22 ENGLISH / PATRON TECH MANUAL...
  • Page 16 Linkages: We have opened a separate part number for each coloured linkage. Alloy only. Each outer link comes with a preload ring, lock screw and seatstay bearings. Ensure that the thread on the preload ring has been greased. 290043 SCO eRIDE Linkage outer Patron 22 The inner Link is sold separately: 291727 SCO eRIDE Linkage inner Patron 22 ENGLISH / PATRON TECH MANUAL...
  • Page 17 Drive Unit & Battery Assembly: Patron features the new BS3 system from Bosch, with a 750Wh battery. Drive Unit Assembly ENGLISH / PATRON TECH MANUAL...
  • Page 18 292626 SCO eRIDE Motor mounts Patron 22 The kit includes the T25 M5 and M8 bolts The motor cover kit contains the cover, fixings and screws. The motor cover is the same for both alloy and Carbon Front triangles. 291730 SCO eRIDE Motor Cover Patron 22 ENGLISH / PATRON TECH MANUAL...
  • Page 19 Speed sensor including cable is provided by Bosch. The speed sensor holder is available from SCOTT. Patron 910 MY22 the Speed Sensor in red has to be turns 180° to face downwards. 292632 SCO eRIDE S-sensor clip Patron 22 Battery Assembly The battery is inserted into a plastic battery tube, which in turn is screwed into the frame.
  • Page 20 We have two different battery covers, one kit for alloy, and one for carbon front triangles. The kit contains fixations and screws. 291729 SCO eRIDE Bat Cover Patron CB 22 291728 SCO eRIDE Bat Cover Patron AL 22 Charging Port Assembly: 292625 SCO eRIDE Charging door Patron 22 ENGLISH / PATRON TECH MANUAL...

  • Page 21: Cable Routing

    Cable Routing: Top Tube Battery Power Kiox Tail Light Front Light Speed Sensor ENGLISH / PATRON TECH MANUAL...
  • Page 22 KOIX DISPLAY CABLE ROUTING TWINLOC ROUTING ENGLISH / PATRON TECH MANUAL...
  • Page 23 PAS SENSOR ROUTING BATTERY POWER CABLE ROUTING ENGLISH / PATRON TECH MANUAL...
  • Page 24 DROPPER POST CABLE ROUTING REAR DERALLIEUR CABLE ROUTING ENGLISH / PATRON TECH MANUAL...
  • Page 25 CHARGING PLUG CABLE ROUTING REAR BRAKE CABLE ROUTING ENGLISH / PATRON TECH MANUAL...

  • Page 26: Rear Light

    Rear Light: The Patron will have a rear light mounted on the seatstays. The aftermarket light from Syncros will not included the connection cable. This must be purchased from Bosch seperately. (Light Cable for Raer Light 1400mm BCH3330_1400) 288342 SYN eRIDE integrated light fender Rear and Front lights cables will be pre- installed on all bikes (with and without rear light) ex factory.
  • Page 27 ASSEMBLY: For the following instructions please follow the tool type and torque settings indicated on each bolt. Use Bearing Fit, Grease, and Threadloc as showned (all carbon friendly): ENGLISH / PATRON TECH MANUAL...
  • Page 28 Push the bearings into the main frame. Push the right side bearing into the right and left. chainstay. ENGLISH / PATRON TECH MANUAL...
  • Page 29 Install the spacer Tube. Press in the left bearing into the chainstay. ENGLISH / PATRON TECH MANUAL...
  • Page 30 Press in the left and right side Press the bearings into the linkage seatstay bearings. bars. ENGLISH / PATRON TECH MANUAL...
  • Page 31 Pull the cable out of the rear of the If used with the Syncros fender light, seatstay and back into chainstay. pull the light cable (red) through the seatstay. From front ot rear. Be careful not to pinch or damge the Remembering to add the seal.
  • Page 32 Mount the Syncros Light fender with Guide the light cable (red) through the two screws. the chainstay. Then pass the brake hose (purple) through and out of the chainstay. Brake hose routing direction depends on brake type. *Check cable routing diagram on previous pages* ENGLISH / PATRON TECH MANUAL...
  • Page 33 Secure the Speed Sensor to the Insert the red and blue spacers. Make mount, then attach to the seatstay. sure the spacers are aligned in the correct position as indicated. ENGLISH / PATRON TECH MANUAL...
  • Page 34 Connect the seatstay & chainstay. Guide the Brake, Speed Sensor, and Light cables through the chainstay and into the front triangle. ENGLISH / PATRON TECH MANUAL...
  • Page 35 Place the dark washers onto the Install the drive side spacer as bearings. indicated. ENGLISH / PATRON TECH MANUAL...
  • Page 36 Assemble the chainstay and insert the Insert the pivot nut. pivot axle. ENGLISH / PATRON TECH MANUAL...
  • Page 37 Tighten Axle Bolt. Insert expansion washer. Then the end bolt, and tighten. ENGLISH / PATRON TECH MANUAL...
  • Page 38 Mount rear brake, torque to Insert the Igus bushings for the shock manufacturers recommendation. in the front triangle. NO GREASE ENGLISH / PATRON TECH MANUAL...
  • Page 39 Loosen the grub screw on the linkage. Connect the linkage to the shock. Make sure the linkage is correctly positioned! ENGLISH / PATRON TECH MANUAL...
  • Page 40 Tighten Shock Bolt. Tighten the lock grub screw. ENGLISH / PATRON TECH MANUAL...
  • Page 41 Set the preload ring. Insert the inner linkage and shock into the frame. Take note of the indications for the orientation and positioning of the pre- Make sure the linkage is correctly load ring on the linkage. positioned! ENGLISH / PATRON TECH MANUAL...
  • Page 42 Place the washer on the bearing, making sure the lighter golden side is outer most. ENGLISH / PATRON TECH MANUAL...
  • Page 43 Assemble the right and left outer linkages to the inner linkage. Hand tighten the linkage bolt outer. Don’t set final torque. ENGLISH / PATRON TECH MANUAL...
  • Page 44 Hand push drive-side linkage bar in Lower the shock and attach the position. There should be NO GAP twinloc cable. between linkage bar and main frame bearing seal. ENGLISH / PATRON TECH MANUAL...
  • Page 45 Place the shock into the correct Set the torque on the linkage bar on position. Lightly tighten the trunnion the non drive side. This should be bolts. Do not set the final torque. done after the front shock bolts are fitted to prevent the linkage pushing against the inside of the frame.
  • Page 46 Set the preload ring on the non-drive side to close the gap to main frame bearing seal, then screw in linkage grub screw. ENGLISH / PATRON TECH MANUAL...
  • Page 47 Tighten trunnion shock bolts. Install the shock cover bracket. ENGLISH / PATRON TECH MANUAL...
  • Page 48 Install the shock cover, nose first, twist lock at the rear. ENGLISH / PATRON TECH MANUAL...
  • Page 49 Install the red & blue washers (pay attention to the orientation of the washer as indicated). Connect the seatstays to the linkages. ENGLISH / PATRON TECH MANUAL...
  • Page 50 Apply the bolts and tighten. ENGLISH / PATRON TECH MANUAL...

  • Page 51: Battery Assembly

    Battery Assembly: Route Rear Derailleur, Rear Brake, Dropper Post, Battery power cable (battery to motor), and the Kiox display cables through headset. *Please also check the routing on previous cable routing pages* ENGLISH / PATRON TECH MANUAL...
  • Page 52 Connect the battery head connection to the battery tube. Place all the cables into the grey channels of the battery tube. Apart from the charging plug cable (purple) & battery power cable (blue). ENGLISH / PATRON TECH MANUAL...
  • Page 53 Secure the battery tube front bolt. Attach the battery tube lower bolts and battery lock bracket. ENGLISH / PATRON TECH MANUAL...
  • Page 54 Install the charger plug housing, both parts. Thread the the cable through the housing and connect to the charger plug head cable. Press the charger plug head into the housing. ENGLISH / PATRON TECH MANUAL...
  • Page 55 Secure the cables with zip ties to the Attach the plug cover bracket. cable guide plate above the motor bracket in the seat tube. NOT DROPPER! ENGLISH / PATRON TECH MANUAL...
  • Page 56 Fix the battery cover mount into place. ENGLISH / PATRON TECH MANUAL...

  • Page 57: Motor Assembly

    Motor Assembly: Assemble the motor bracket bolts. ENGLISH / PATRON TECH MANUAL...
  • Page 58 Connect the display cable, light cable, Install the motor into the frame. and drive cable to the drive unit. ENGLISH / PATRON TECH MANUAL...
  • Page 59 Insert the motor attachment bolt. Place and tighten the bottom motor bolts. Do not tighten. ENGLISH / PATRON TECH MANUAL...
  • Page 60 Tighten top motor bolt. Install the upper motor cover bracket. ENGLISH / PATRON TECH MANUAL...
  • Page 61 Install the lower motor cover bracket. Place motor cover over the motor. ENGLISH / PATRON TECH MANUAL...
  • Page 62 Fix in place both sides, left & right. Attach the plug cover. ENGLISH / PATRON TECH MANUAL...

  • Page 63: Battery Installation And Removal

    Battery Installation & Removal: Open the battery cover. Slide the battery into the battery tube. Make sure the battery is the correct way around! ENGLISH / PATRON TECH MANUAL...
  • Page 64 Close the battery door and make sure Re-install the battery cover and the catch is engaged correctly. tighten. ENGLISH / PATRON TECH MANUAL...
  • Page 65 To remove the battery, unlock Slide the battery out of the battery the cover. Release the battery tube. door, making sure the catch has disengaged. ENGLISH / PATRON TECH MANUAL...
  • Page 66 Shock Removal: Remove the shock cover. Unscrew both linkage/seatstay bolts, left & right sides. ENGLISH / PATRON TECH MANUAL...
  • Page 67 Remove the spacers. Unscrew the main linkage bolts both sides. ENGLISH / PATRON TECH MANUAL...
  • Page 68 Remove linkages completely. loosen and remove the twinloc cable. ENGLISH / PATRON TECH MANUAL...
  • Page 69 Unscrew the shock bolts both sides. Lower out the shock, and remove the inner linkages. First by releasing the grub screw then the shock bolt. ENGLISH / PATRON TECH MANUAL...
  • Page 70 SCOTT Sports SA reserves the right to change the content of this techbook, particularly colors, materials and specifications, at any time without prior notice. Any liability shall be exempted. Products shown may not be available in all regions, please check with your local SCOTT retailer for availability. EDITOR...
