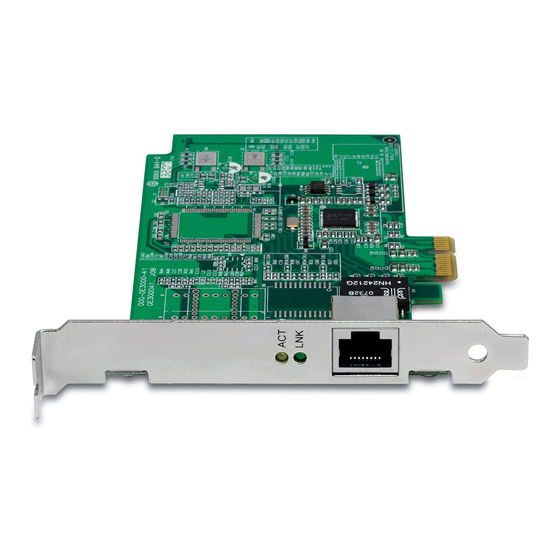

  • Page 2 Preface Thank you for purchasing TEG-ECTX and TEG-ECSX. This manual describes how to install and use the PCI Express Gigabit Adapter. The PCI Express Gigabit Adapter allows you to use either RJ-45 or fiber cable to connect to network. The TEG-ECTX/TEG-ECSX is a high performance network adapter...

  • Page 3: Packaging Contents

    Packaging Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to local authorized reseller. • TEG-ECTX or TEG-ECSX • Quick Installation Guide •...
  • Page 4 Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Largesend Offload Advanced Configuration Power Management Interface (ACPI) Supports PCI Message Signaled Interrupt (MSI) 48K Bytes buffer memory Two LEDs: LNK (link) (Green), ACT (activity) (Yellow) 0 °C to 45°C (32°C to 113°C) operating temperature range...
  • Page 5 Driver Support The Adapter supports a wide range of drivers for commonly used network operating systems: Microsoft Windows 2000 / 2000 Server / XP (32/64-bit) / 2003 Server/ Vista (32/64-bit) Linux 2.4.x, 2.6.x Novell Netware 3.12/4.1/4.11/5.x/6.x FreeBSD 5.4, 6.0 Unix Ware 7.1.3, 7.1.4, OPEN Server 6.0 LEDs •...

  • Page 6: Software Installation

    Software Installation Step 1: Insert the Driver CD-ROM into your computer’s CD-ROM Driver Step 2: Click Install Driver, choose the driver which suitable for your operation system. Step 3: Follow the InstallShield Wizard instructions Step 4: Shutdown your computer and following the hardware...

  • Page 7: Hardware Installation

    PCI Express Adapter firmly into an available PCI Express Slot. Step 5: Turn ON the computer and wait until the Windows desktop appears. Step 6: Replace the cover back to your computer and follow the next session “Connecting to Your Network” procedure.

  • Page 8: Connecting To Your Network

    Connecting to your Network For TEG-ECTX Step 1: Connect a Cat5e Cable from the computer to an available Ethernet port on your router or switch. Step 2: When the cable is properly connected to the devices, turn the power on.

  • Page 9: Cabling Requirement

    Cabling Requirement For connector type, cabling requirements, and maximum segment distance as list below. Speed Media Port Cable Distan Speed Half/Full Duplex 10BaseT RJ-45 10/20 UTP/STP 100M Mbps Cat 3, 4, or 100BaseTX RJ-45 100/200 UTP/STP 100M Mbps Cat 5...

  • Page 10: Diagnostics Utility

    Step 1: Insert the Driver CD-ROM into your computer’s CD-ROM Driver Step 2: Click Diagnostics Utility button on the CD-ROM, choose the utility which suitable for your operation system. Step 3: Click Next Step 4: Click Next to continue or click Browse to choose an alternate location. -10-...
  • Page 11 Step 5: Click Finish to exit the installation. Step 6: Click Start Program Realtek Diagnostics to launch the Diagnostics Utility. -11-...
  • Page 12 Diagnostics Utility Configuration General This page shows the general information of the selected network adapter. VLAN This page shows information about VLANs on current the selected network adapter. User can add, remove or change the VLAN ID here. -12-...
  • Page 13 This page shows driver information of the selected network adapter. Advanced Setting This page displays working parameters of the network adapter. User can modify the parameters here. For Windows 98SE and ME, please reboot the computer to take the changes effected. -13-...
  • Page 14 Diagnostics This page performs hardware tests of the selected network adapter. Send and Receive Two computers with its own adapter in the same LAN can perform send & receive experiment with broadcast packet here. -14-...
  • Page 15 Statistics This page shows statistics of the current selected network adapter, including throughput, number of good packets have been sent and received, and number of error packets have been sent and received. Cable This page shows the connected cable length and status.
  • Page 16 Wake On LAN (for TEG-ECTX only) This page shows three ways to wake up a computer in suspends or sleep mode. 1) Ethernet Address 2) IP Address 3) NetBIOS Name. A computer can be waked up only if related configurations in BIOS and the network adapter are enabled.

  • Page 17: Specifications

    Net Weight 80g (0.18lb.) approx. 3.3VDC, 727mA, 2.4W Max. Power Consumption Temperature Operation 0°C to 45° C (32°F to 113°F) Storage -10°C to 70°C (14°F to 158°F) 10%-95% non-condensing Humidity Emissions FCC part 15 Class B, CE Mark Class B -17-...

  • Page 18: Limited Warranty

    Limited Warranty TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase. TEG-ECTX/TEG-ECSX– 5 Years Warranty If a product does not operate as warranted above during the applicable warranty...
  • Page 19 DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE. Governing Law: This Limited Warranty shall be governed by the laws of the state of California. AC/DC Power Adapter, Cable, Cooling Fan, and Power Supply carry 1 year warranty.
  • Page 20 -20-...
