Summary of Contents for TRENDnet TEG-ECSX

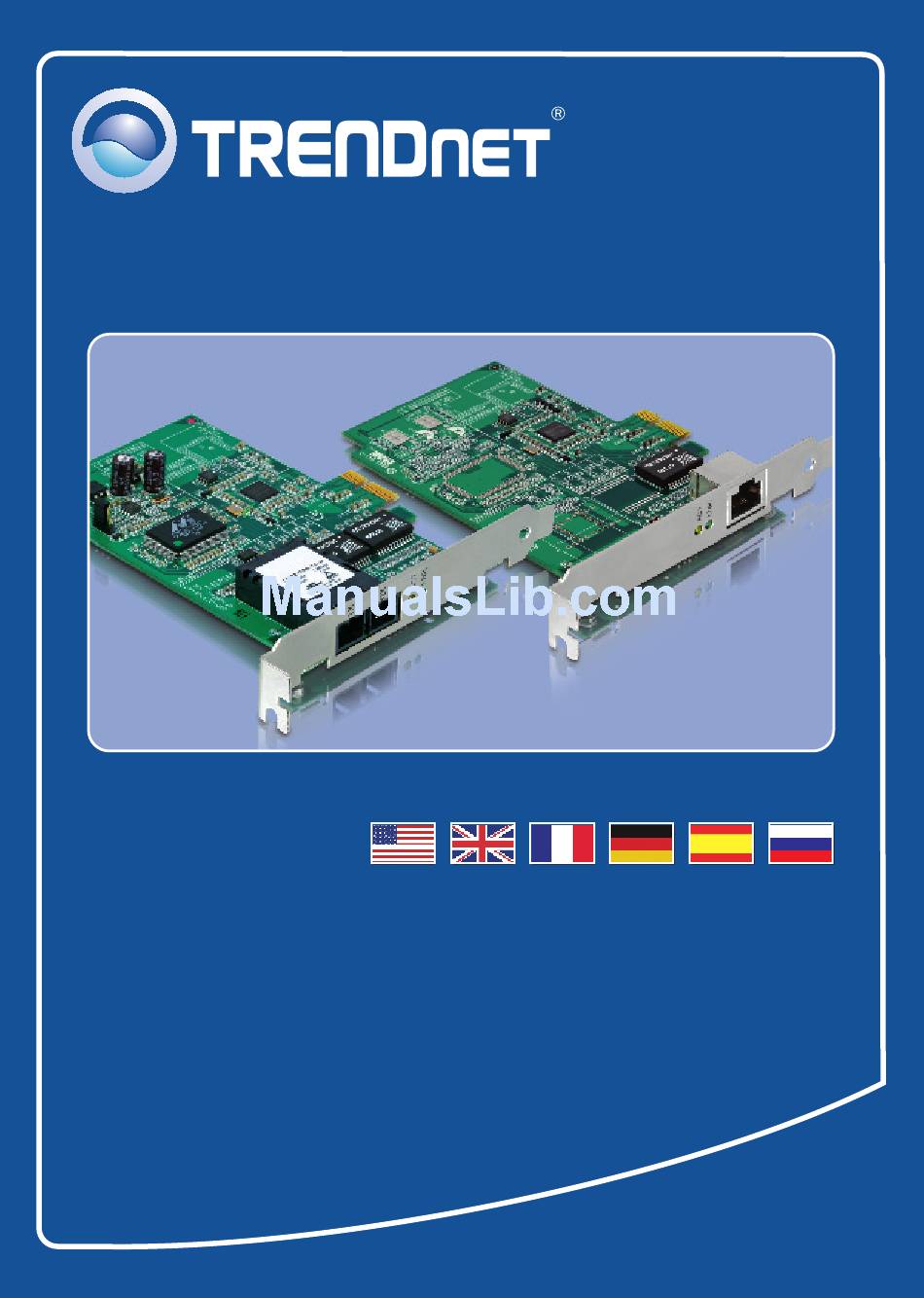

- Page 1 Quick Installation Guide TEG-ECTX TEG-ECSX H/W: V1...
- Page 2 Table of Contents Table of Contents English ..................... 1. Before You Start ................How to Install ..................Troubleshooting ..................Version 10.30.2008...
-
Page 3: English
PCI Express 1.0a slot CD-ROM Drive CPU: 300MHz or above / 800MHz or above (Windows Vista) Memory: 256MB RAM or above / 512MB RAM or above (Windows Vista) Windows 2000/2000 Server/XP(32-/64-bit)/2003 Server/Vista(32-/64-bit) RJ-45 Ethernet cable (TEG-ECTX) 50/125ìm or 62.5/125ìm multi-mode fiber cable... -
Page 4: How To Install
2. How to Install Note: Do not connect the TEG-ECTX/TEG-ECSX to your computer until instructed to do so. 1. Insert the Driver CD-ROM into your computer’s CD-ROM Drive. 2. Click Run autorun.exe (Windows Vista only). 3. Click Install Driver, and then click your operating system. - Page 5 6. Click Finish. 7. Shutdown your computer and then open your computer's case. 8. Insert the PCIe card firmly into an available PCIe slot, and then turn ON the computer and wait until the Windows desktop appears. 9. Drivers will install automatically.
- Page 6 Connect the TEG-ECTX to your network 1. Connect a RJ-45 network cable from the computer to an available Ethernet port on your Gigabit router or Gigabit switch. English...
- Page 7 User Guide on the Utility and Driver CD- ROM. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet...
-
Page 8: Troubleshooting
Device Manager. In the list of device types, double-click on Network Adapters. If you see the device with a yellow question mark or exclamation point next to it, double-click on it, click on Drivers and click Update Drivers. Third, if the device manager fails to recognize the presence of a new networking adapter, verify that the network adapter is firmly seated in the PCIE Slot. - Page 9 El uso de un adaptador distinto al mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.
- Page 10 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2008. All Rights Reserved. TRENDnet.
