3.2.2. B: Connecting C2C with cable 842174

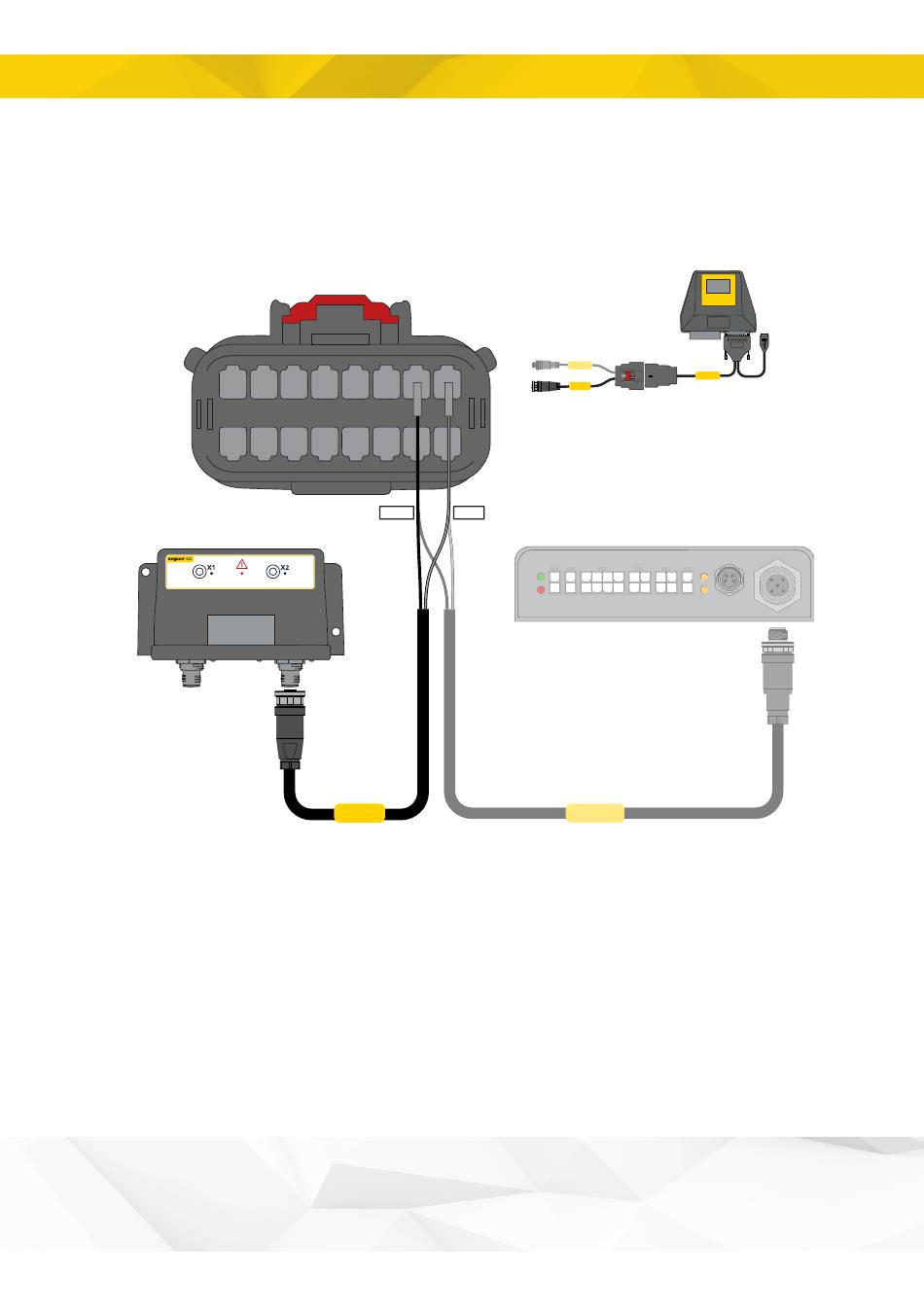

Insert cable 842174 into connector X31 as illustrated. If a QCM electronics module will be
installed or is installed on the machine, connect CAN high and CAN low from the modules
as illustrated.
1
9
C2C
X31
8
16
CAN-H CAN-L
842174
9
3 Installation
CM
X31
8000240
8001362
842174
QCM
X1 X2 X3 X4 X5 X6
2 2 8 7 6 5 4 3 4 3 2
1 1 4 3 2 1 2 1 2 1 1
8000240
X7 X8
