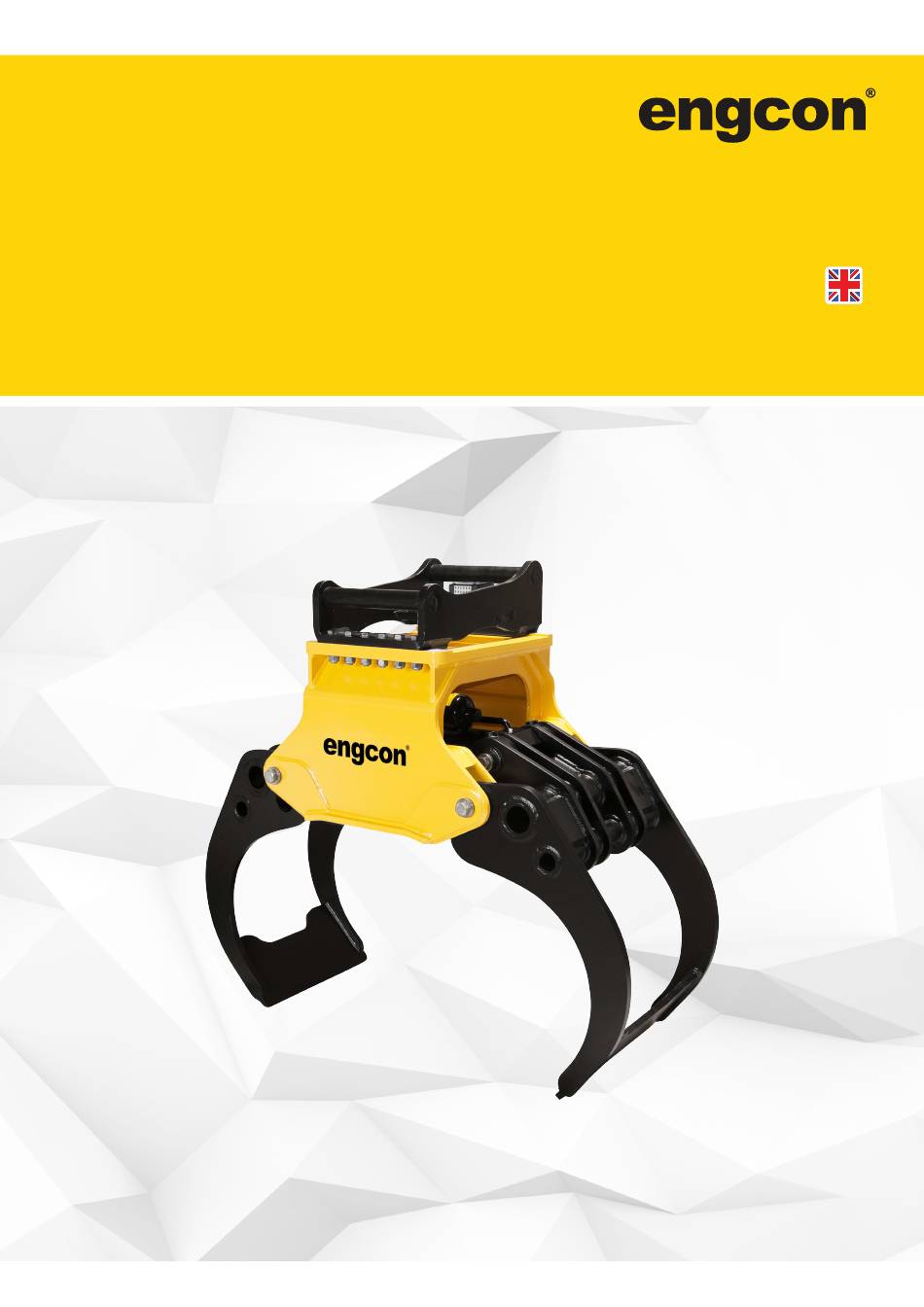

- Page 1 User manual TIMBER GRAB TG25HD | TG28HD | TG42HD | TG55HD Article 9000119 | Version 1.8 Original Instructions...
- Page 2 Dear Customer, Thank you for choosing a product from engcon. engcon is the market leader in tiltrotators and tools for excavators. We represent innovation, knowledge and experience, and we develop our products with a focus on the customer's needs. Please visit our website for contact information and details about the rest of our product range.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Introduction 1.1. General......................4 1.2. Scrapping and recycling.................. 4 1.3. Warranty......................5 1.4. Technical support and spare parts..............5 1.5. Product approval..................... 6 1.5.1. EU Declaration of Conformity..............6 2. Safety 2.1. General......................7 3. -
Page 4: Introduction
1.2. Scrapping and recycling engcon makes constant efforts to reduce its environmental impact. engcon's products comprise at least 99 per cent recyclable material. All assembly and service work must take place in compliance with legislation and ordinances governing the environment, health and occupational safety. -
Page 5: Warranty
1 Introduction 1.3. Warranty This product was designed, dimensioned and manufactured by engcon. It is forbidden to modify, alter or convert this product such that it no longer corresponds to the manufacturer's specifications. When replacing parts or making repairs, contact an authorized workshop. -
Page 6: Product Approval
SS-EN ISO 12100:2010, SS-EN 474-1:2006+A5:2018 and SS-EN 474-5:2006+A3:2013 This declaration and engcon's warranties will cease to be valid immediately if spare parts other than engcon original spare parts are used, or if any changes or other interventions are made without engcon's permission. -
Page 7: Safety
2 Safety 2. Safety 2.1. General It is important that you read and understand all warnings prior to installation work on this product or before you use it and any accessories supplied. The warning texts highlight potential risks and describe how to avoid them. The following warning levels are used in this user manual: DANGER Indicates that an accident will occur if the regulation is... -
Page 8: Design And Function
3. Design and function 3.1. General engcon's timber grab is ideal for handling round timber and light sorting work. The hinges are fitted with expander pins to prevent play. The tool has a bolt-on gate/attachment point that allows the attachment point to be changed easily when necessary. -
Page 9: Installation
WARNING If you have any doubts concerning the safety aspects of your knowledge, the equipment or work, contact a dealer or engcon Nordic AB. Incorrect installation affect safety. WARNING Welding is not permitted. It can have a negative impact on safety. Risk of personal injury and damage to property. -
Page 10: Mechanical
Risk of personal injury and damage to property. WARNING If you have any doubts concerning the safety aspects of your knowledge, the equipment or work, contact a dealer or engcon Nordic AB. Incorrect installation affect safety. -
Page 11: Electrical And Hydraulics
4 Installation 4.3. Electrical and hydraulics 4.3.1. Installing hydraulic hoses 1. Make sure the tool is level and resting stably. 2. Connect the base machine’s machine hitch/tiltrotator to the tool. 3. Stop the engine and depressurise the base machine's hydraulic outlet by operating the tool's functions. WARNING The hydraulic system must be de-pressurised... -
Page 12: On Completion
4 Installation 4.4. On completion 1. Affix the warning decals supplied in a conspicuous place in the operator's cab, without obscuring operator visibility. WARNING Replace damaged or illegible signs and decals before using the machine. Risk of personal injury and damage to property. -
Page 13: Operation
5 Operation 5. Operation 5.1. Before and during use Check your base machine manufacturer's recommendations for calculating tipping loads, and be sure to include the increased weight and reach the product entails. Open and close the grab using the regular controls in the base machine. DANGER Do not exceed tipping load limits. - Page 14 5 Operation WARNING The hydraulic system must be de-pressurised before work on the system is begun. Risk of personal injury and damage to property. WARNING Be aware of your surroundings when working with the grab, as material can become loose and be thrown clear.
-
Page 15: Maintenance
6 Maintenance 6. Maintenance 6.1. General Intervals for greasing and inspections to be performed by the user: - Daily, carried out on all configurations before the machine is put into use for the working day. - Every 16 operating hours, grease according to the lubrication schedule. If your product is equipped with a rotator, there are instructions for the rotator section in the tiltrotator user manual. -
Page 16: Daily Inspections
6 Maintenance 6.2. Daily inspections The grab is equipped with a pressure accumulator. WARNING Be aware of the risks with pressurised devices. Risk of personal injury. WARNING Avoid contact with hydraulic oil. Risk of burns. WARNING Never use your hands to search for leaks in the hydraulic system. -
Page 17: Special Maintenance
Welding is not permitted. It can have a negative impact on safety. Risk of personal injury and damage to property. For welding, contact your dealer or engcon Nordic AB. WARNING Replace damaged or illegible signs and decals before using the machine. Risk of personal injury and damage to property. -
Page 18: Expander Pin
6 Maintenance Guard During transport and extended layups, use the protection supplied on the EC-Oil block. Figure 7. 6.3.2. Expander pin The information in this section makes sure the expander pins are properly installed and that the system is detachable in connection with service or joint bearing changes. 6.3.2.1. - Page 19 6 Maintenance - After 3 hours - After 10 hours or 1 day* - After 40 hours or 4 days* * If no additional torque is added when retightening the pins, the installation is successful. If the expander sleeves have not bedded in after one week's operation, contact your dealer.
-
Page 20: Lubricate Every 16 Operating Hours
This process makes sure the sleeves bed in. 6.4. Lubricate every 16 operating hours engcon recommends greasing at 16 hour intervals. See chapter 6.4.1. Timber grab lubrication When working in water, the lubrication interval is reduced to 8 hours. -
Page 21: Tightening Torque
Bolts and threaded holes must be thoroughly clean and the threads oiled. Top bracket Type Dimension Quality Quantity Torque TG25HD 197 Nm TG28HD 197 Nm TG42HD 12/14/16* 197 Nm TG55HD 665 Nm Table 3. -
Page 22: Decals
7 Decals 7. Decals Machine instructions, decals and warning signs must be kept clearly legible. Contact your supplier to order replacements. WARNING Replace damaged or illegible signs and decals before using the machine. Risk of personal injury and damage to property. 7.1. - Page 23 7 Decals Keep clear. Moving and rotating equipment. Hazard zone 10 feet. Crushing hazard. Stay clear of moving parts. Tipping hazard. Never exceed the base machine´s approved tipping load. Suspended load hazard. Stay clear of suspended loads. Important to subtract tiltrotator weight when calculating lifts. Read and understand the user manual before operating this machinery.
-
Page 24: Technical Data
8 Technical data 8. Technical data 8.1. Timber grab Figure 11. Description TG25HD TG28HD TG42HD TG55HD Max grab width (B) 1450 1540 1900 2510 Max load tonnes Height, fully open (A) 1039 1146 Height, fully closed (D) Width (E) Clamping force (tip - tip) at 21 12.42... -
Page 25: Glossary
9 Glossary 9. Glossary 9.1. Designations Term Description Base machine The machine carrying the equipment concerned. Excavator or backhoe loader. EC-Oil Automatic oil connection system for changing hydraulic tools from the cab. EC-Oil block H (Hitch) Located in the machine or in the quick hitch. EC-Oil block T (Top) Located on the upper section of the hydraulic tool and/or the tiltrotator. - Page 26 Notes ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 27 Notes ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 28 Uk Ltd 200B Ashchurch Business Centre, Tewkesbury GL20 8TD +44 1684 297168, uk@engcon.com www.engcon.com...
