NVIDIA DGX H100/H200 Service Manual
Viewing the Fan Module LEDs
1. Removing and Attaching the Bezel

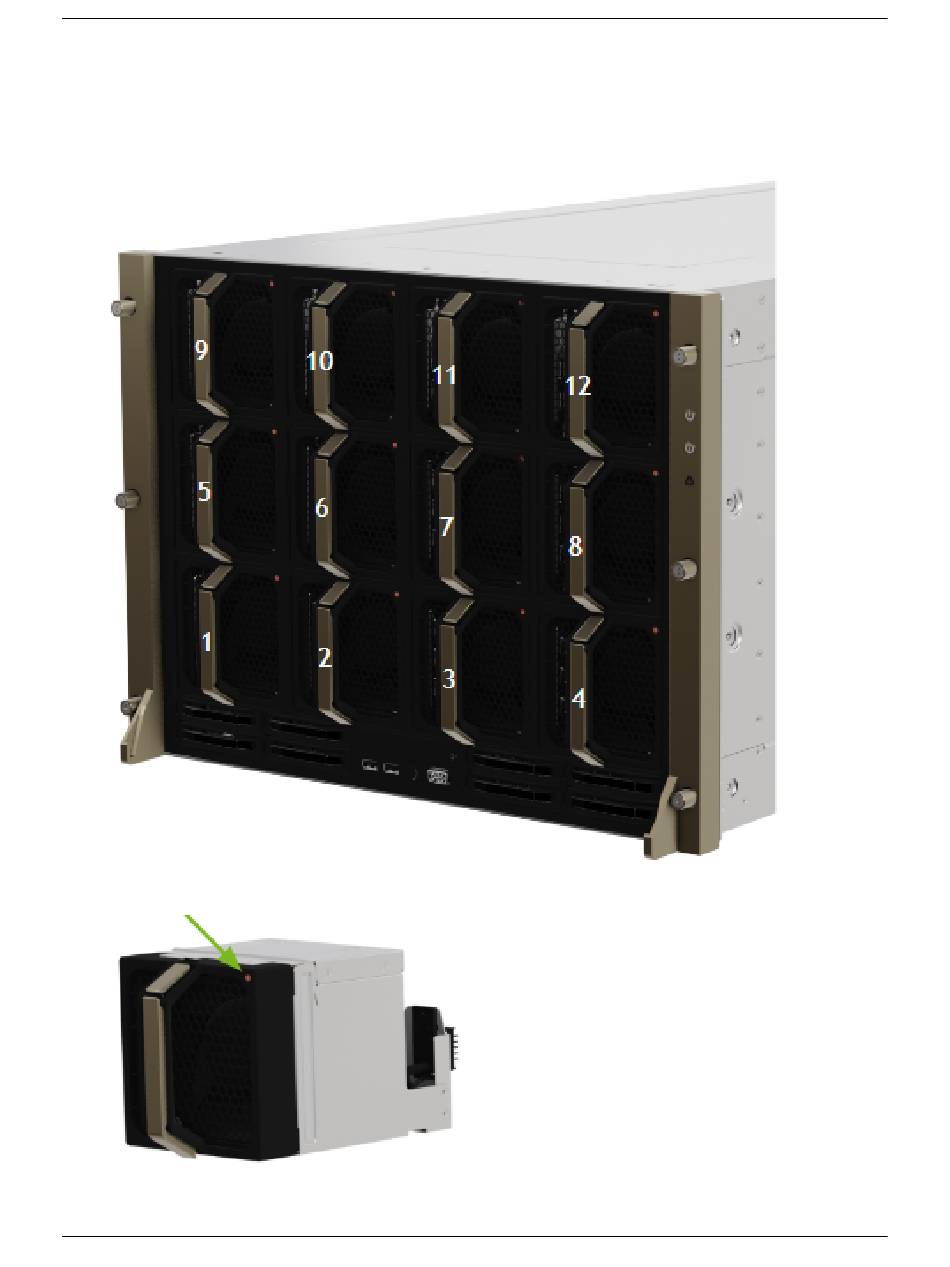

After you remove the bezel, the system looks like the following figure.
2.
Identify the failed fan using the fan module fault LED as shown in the following figure.
3.
Look for the lit fault LED on the upper right corner of the faulty fan module as shown in the
8
to expose the fan modules.
Chapter 2. Front Fan Module Replacement
