NVIDIA DGX H100/H200 Service Manual
▶
Do not hold the motherboard tray by the ejection handles. The handles can bend or break.
▶
Be careful with the connectors at the back of the module to prevent damage.
4. Place the motherboard tray on a solid, flat surface.

5.4. Remove the Motherboard Tray Lid

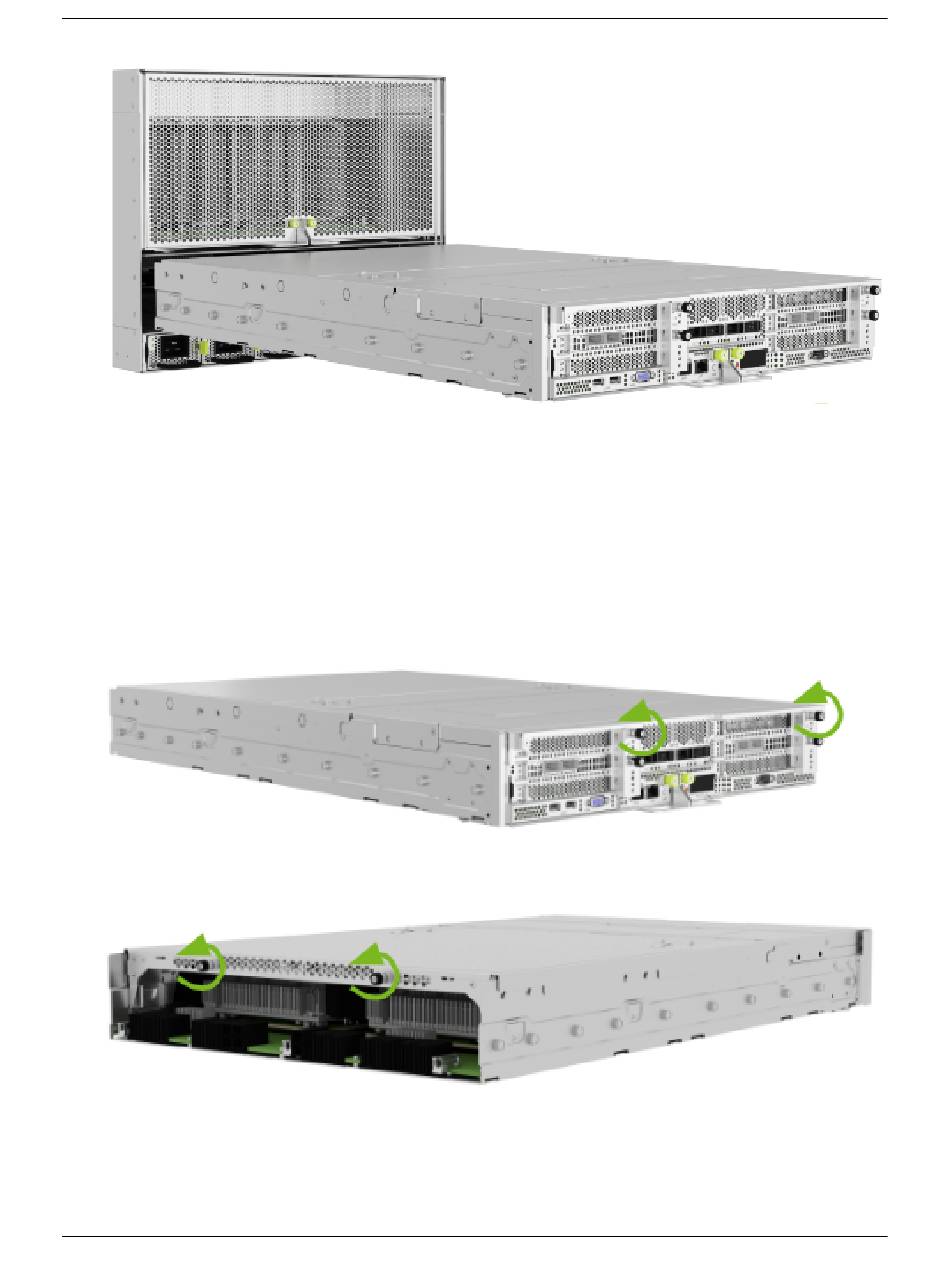

1. Loosen the two screws on the port side of the motherboard tray, as shown in the following figure:
2. Loosen the two screws on the connector side of the motherboard tray, as shown in the following
figure:
3. To remove the tray lid, perform the following motions:
▶
Lift on the connector side of the tray lid so that you can push it forward to release it from
the tray.
