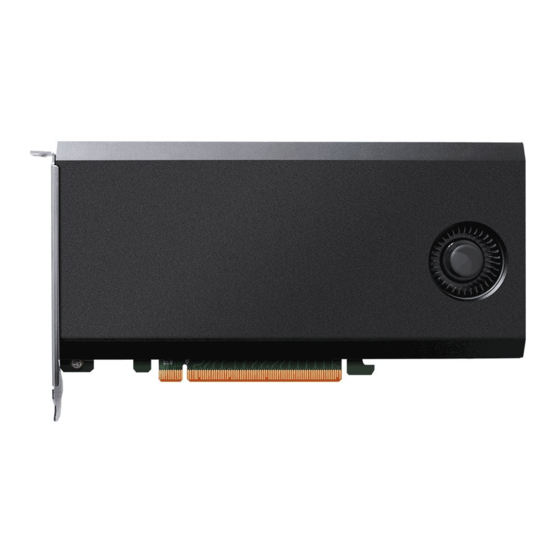

- Page 1 7101B PCIe 3.0 x16 NVMe RAID Controller with P-Class SSDs User Manual V1.0.0...
-
Page 2: System Requirements
System Requirements System with an empty PCIe 3.0 x16 slot Windows 10 or later Linux Kernel 3.19 or later rSSD 7101B Hardware Overview Front View... -
Page 3: Set Up Windows
2. In Device Manager under Disk drives, make sure the appropriate number of NVMe SSDs are displayed 3. Download files from http://www.highpoint-tech.com/USA_new/CS- product_nvme_drive_download.htm 4. Open the rSSD Manager folder, run the rSSD Manager, and follow the onscreen instructions 5. Open the Driver folder, run Setup, and follow the onscreen instructions 6. - Page 4 Using the HighPoint rSSD Manager Starting the HighPoint rSSD Manager Double click the Desktop icon to start the Web browser. It will automatically log-in to the HighPoint rSSD Manager using the default password. The password can be set after the first log-in. To change the password, select Setting and then Security...
- Page 5 Verify the rSSD 7101B Status The Advanced Config. Tab will display the status of the installed rSSD 7101B The Virtual Disk is listed under Logic Device Information. The individual NVMe SSDs are listed under Physical Device Information.
- Page 6 Manage the RAID Disk Creating a new array 1. Select Create Array on the left side 2. Review the array settings and create the RAID Array...
- Page 7 Deleting an array 1. Under Local Device information, select Maintenance on the right 2. Select the Delete button that appears from the pop-out 3. Warning: Deleting the RAID disk will destroy all data on the existing RAID array. Please make sure to back up important data before proceeding.
- Page 8 Product Information and Settings The Setting page includes Enclosure, Email Notification, Security, and System Enclosure Information: reports rSSD 7101B PCI Bus information and PCIe link status Email Notification: allows you to configure email notifications; instructs the manager to send all, or specific Event Log notifications to an email address of your choice Security: set the manager’s log-in port number and password...
- Page 9 Event Log All rSSD Manager operations and disk status updates will be recorded to this Event Log. The Event Log can be downloaded and saved to a file by clicking the Download button The Clear button can be used to delete all entries and reset the event log Warning: we recommend downloading and saving a copy of the current Event Log before using the Clear option SHI (Storage Health Inspector)
- Page 10 Online Help redirects you to additional documentation concerning the rSSD Manager. Register Product takes you to the HighPoint Online Web Support Portal. On this page you can create a new customer profile where you can register your product, or post an online support ticket Configuration Record collects the storage information and send sit to the HighPoint support team.
-
Page 11: Customer Support
Customer Support If you encounter any problems with the rSSD 7101B or have any questions regarding this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department Web Support: http://www.highpoint-tech.com/websupport HighPoint Technologies, Inc. Website: http://www.highpoint-tech.com...
