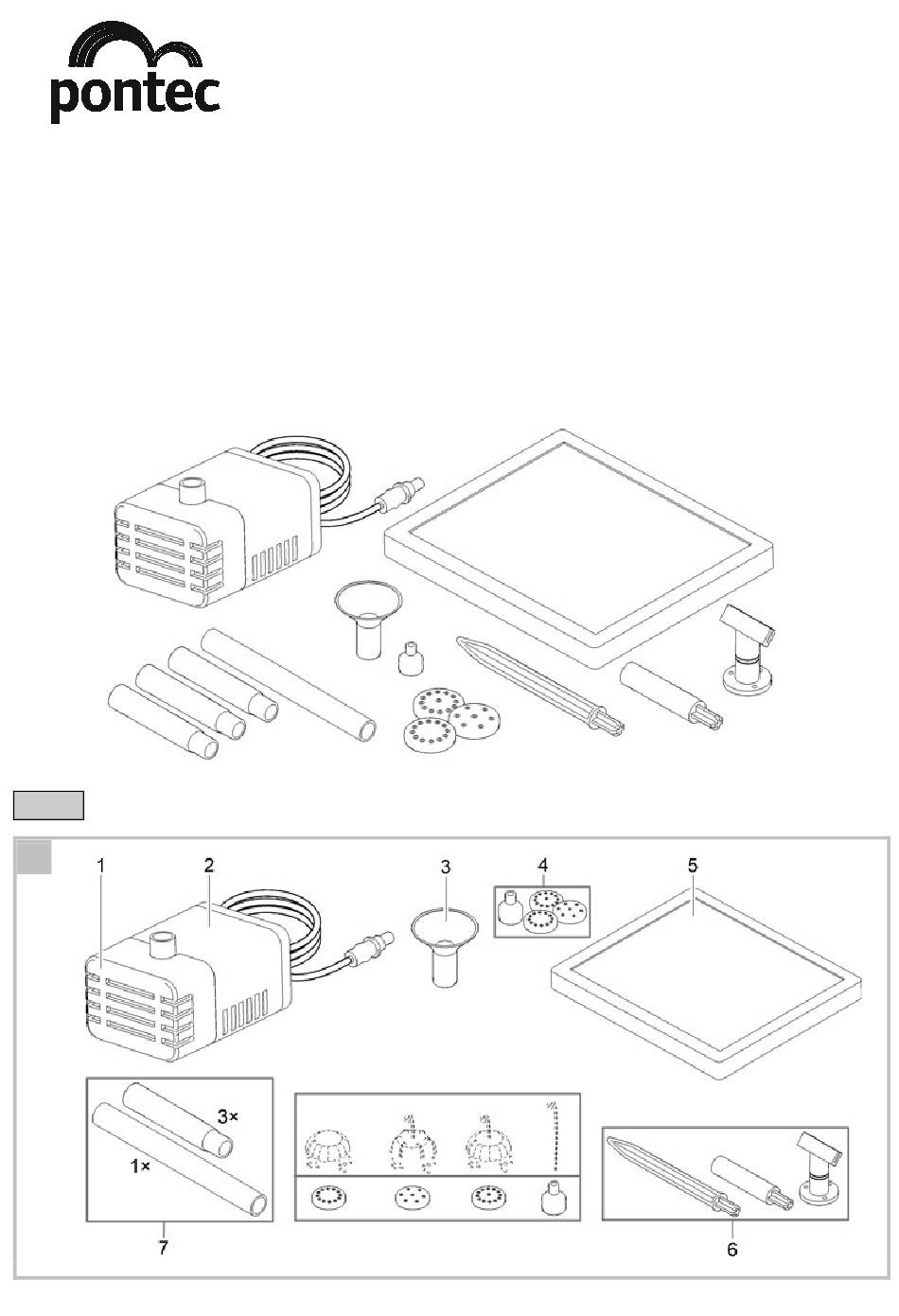

- Page 1 Operating instructions PondoSolar 150 - - PSO0001...
- Page 2 PSO0002 PSO0036...
- Page 3 - EN - WARNING Original manual. This manual belongs with the unit and must always be passed on together with the unit. WARNING Disconnect all electrical devices in the water from the power sup- ply before reaching into the water. Otherwise there is a risk of se- vere injuries or death by electrocution.
-
Page 4: Product Description
Product Description A Quantity Description Filter housing Pump with outlet and 5 m connection cable Nozzle holder Nozzle attachment Solar module Ground stake set Nozzle extension Installation and connection How to proceed: B 1. Assemble the nozzle unit and fit onto the pump. –... - Page 5 Storage/winter protection If the ambient temperature leaves the permissible temperature range, uninstall the unit. (→ Technical data) • Thoroughly clean the unit. • Check the unit for damage and replace damaged components. • Store the pump submerged and in a frost-free environment. Malfunction remedy Malfunction Cause...
- Page 6 Dimensions Rated voltage Max. power Max. flow rate Max. head height Immersion depth Water tempera-ture 45 × 47 × 47 mm 6 V DC ≤ 150 l/h ≤ 0.6 m ≤ 0.6 m +4 … +35 °C 220 × 190 × 25 mm 6 V DC 1.4 W Dust tight.
- Page 7 PSO0004...
- Page 8 PfG GmbH Tecklenburger Straße 161 48477 Hörstel | Germany info@pfg-gmbh.com www.pontec.com 40684/04-24...
