Pollard 750-1824 Assembly Instructions

www.pollardbros.com
Includes:
(1) Top Tray (18" x 24") (4) Uprights
32
x
1/4" x 5/8" Round Head
Machine Screw
Note: (4) 1/4" x 3/4" Round Head Machine Screws replace (4) 1/4" x 5/8" Round Head Machine Screws for 30"
and 36" high Tables.
Steps:
1
Place Top tray upside down on a at surface
(edges up).
2
Attach uprights to the outside of the tray matching
the four holes on the upright and tray. Secure with
(4) 1/4" x 5/8" Round Head Machine Screws, 1/4"
Hex Nuts and 1/4" Lock Washers. HAND TIGHTEN
ONLY.

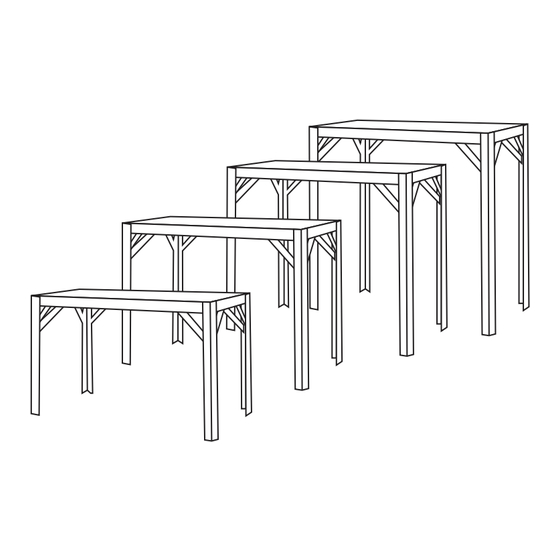

750-1824 Machine Table
Assembly Instructions
Tools Needed:
wrench at head screwdriver
(8) Braces
32
x
1/4" Hex Nut
32
x
1/4" Lock Washer
