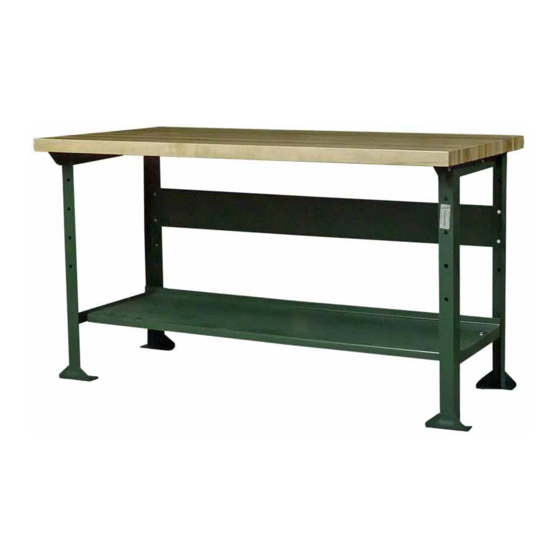

144 Maple Top Open Leg Bench
Assembly Instructions
Tools Needed:
wrench
at head screwdriver
Includes:
(2) or (3) Bench Legs (1) Formed Channel Stringer
(1) Maple Bench Top
6
14
x
x
3/8" Hex Nut
3/8" x 2 1/2" Flat Head Machine Screw
8
x
8
x
3/8" Lock Washer
3/8" x 3/4" Hex Head Machine Screw
Note: Additional hardware is provided for 8' & 10' benches.
Steps:
1
Stand legs upright and face as shown. Note: 6'
benches and under come with two legs, and 8'
benches and over come with three legs.
Advertisement
Table of Contents
Related Manuals for Pollard 144
Summary of Contents for Pollard 144
- Page 1 144 Maple Top Open Leg Bench Assembly Instructions Tools Needed: wrench at head screwdriver Includes: (2) or (3) Bench Legs (1) Formed Channel Stringer (1) Maple Bench Top 3/8” Hex Nut 3/8” x 2 1/2” Flat Head Machine Screw 3/8”...
- Page 2 (6) 3/8” x 2½” Flat Head Machine Screws and 3/8” Hex Nuts No Washers needed. After top is in place, make sure bench is square and then, tighten all bolts, starting with the stringer. Pollard Brothers Manufacturing 5504 N. Northwest Highway Chicago IL 60630 (773)763-6868 (773)763-4466 (800) 551-5566...
