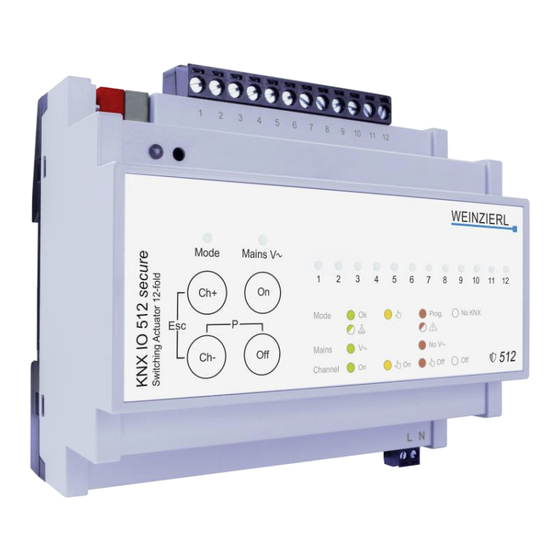

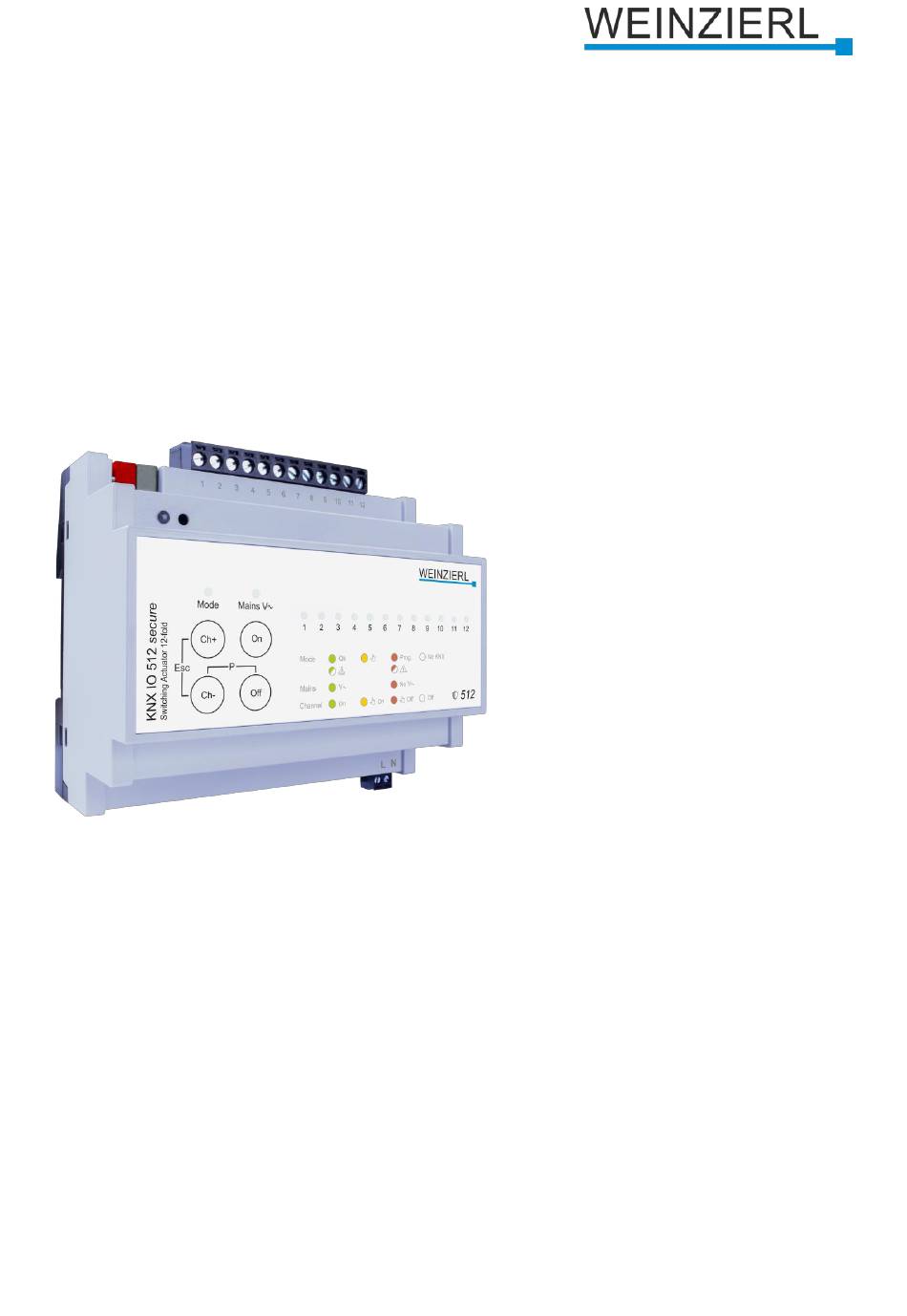

- Page 1 Switching Actuator 12-fold KNX IO 512 secure Operation and installation manual (Art. # 5491) WEINZIERL ENGINEERING GmbH Achatz 3-4 DE-84508 Burgkirchen an der Alz Phone:+49 8677 / 916 36 - 0 E-Mail: info@weinzierl.de Web: www.weinzierl.de © 2023 WEINZIERL ENGINEERING GmbH...
-
Page 2: Table Of Contents
Logic / Timer / Calculation ....................37 Function 1 – 16: Timer ....................... 38 6.15 Function 1 – 16: Logic ......................40 6.16 Function 1 – 16: Compare ....................42 6.17 Function 1 – 16: Calculation ....................45 6.18 © 2023 WEINZIERL ENGINEERING GmbH Page 2/49... -
Page 3: Application
2 Installation and commissioning The KNX IO 512 secure is designed for installation on a DIN rail (35 mm) with a width of 1 unit (18 mm). An installation friendly design with pluggable screw terminals helps to reduce the cost of commissioning. -
Page 4: Knx Programming Mode
LED lights up green Mains voltage is present LED lights up red Mains voltage is not present Manual operation cannot be started because LED flashes red for 3 seconds Mains voltage is not present © 2023 WEINZIERL ENGINEERING GmbH Page 4/49... - Page 5 LED lights up orange Channel is switched on and is selected in manual operation Attention: If no mains voltage is present, the channel is displayed as switched off despite the relay being closed. © 2023 WEINZIERL ENGINEERING GmbH Page 5/49...
-
Page 6: Reset To Factory Settings
In the factory default settings, the device has the physical address 15.15.255 and no group addresses are connected. Also, KNX Data Security is disabled and the initial key (FDSK) must be used for secure commissioning. 4 Connection diagram © 2023 WEINZIERL ENGINEERING GmbH Page 6/49... -
Page 7: Pin Assignment
Ch 11 Output operated as closing contact Channel 12 connection Ch 12 Output operated as closing contact Positive connection for KNX bus Ground connection for KNX bus Outer conductor connection Neutral conductor connection © 2023 WEINZIERL ENGINEERING GmbH Page 7/49... -
Page 8: Knx Security
Encrypted telegrams are longer than the previously used unencrypted ones. For secure programming via the bus, it is therefore necessary that the interface used (e.g. USB) and any intermediate line couplers support the so called KNX long frames. © 2023 WEINZIERL ENGINEERING GmbH Page 8/49... -
Page 9: Ets Database
KNX IO 512 secure (www.weinzierl.de) or from the ETS online catalogue. The KNX IO 512 secure supports KNX Data Security to protect the device against unauthorized access from the KNX bus. If the device is programmed via the KNX bus, this is done with encrypted telegrams. - Page 10 The initial key is reactivated after a reset to factory default settings. The serial number in the certificate enables the ETS to assign the correct key to a device during a download. © 2023 WEINZIERL ENGINEERING GmbH Page 10/49...
-
Page 11: Secure Group Communication
6.2 Secure group communication Each object of the device can communicate either encrypted or unencrypted. The encryption is set under “Security” in the properties of the used group address: © 2023 WEINZIERL ENGINEERING GmbH Page 11/49... - Page 12 A key is changed by the ETS e.g. when the encryption of a group address is switched off and on again. © 2023 WEINZIERL ENGINEERING GmbH Page 12/49...
-
Page 13: Description
6.3 Description This page shows the device description and the corresponding wiring scheme. © 2023 WEINZIERL ENGINEERING GmbH Page 13/49... -
Page 14: General Settings
6.4 General settings Device name (30 characters) Any name can be assigned to the KNX IO 512 secure. The device name should be meaningful, e.g. “Living room”. This helps clarity in the ETS project. Send delay after bus power return A send delay of telegrams after the return of the bus voltage can be set via this parameter. - Page 15 Sends values cyclically to the KNX bus to indicate that the device is currently ready for operation. The cycle time can be selected between 1 minute and 24 hours. Group object Type KNX Size Direction GO 1 Heartbeat - Trigger 1.001 1 Bit To KNX © 2023 WEINZIERL ENGINEERING GmbH Page 15/49...
- Page 16 Outputs the total energy consumption of all channels via a group object entry. To do this, the consumption on the channel must be specified (see point 6.5 Channel 1 – 12: General under Average energy consumption). ▪ Both Combination of the two previous options © 2023 WEINZIERL ENGINEERING GmbH Page 16/49...
- Page 17 Only on read Send status objects only for read requests ▪ Only on change Send status objects on value change ▪ Cyclic and on change Status objects send cyclically and on value change © 2023 WEINZIERL ENGINEERING GmbH Page 17/49...
- Page 18 The choice is yours: ▪ Disabled Status objects are disabled and hidden ▪ Only on read Send status objects only for read requests ▪ Cyclic Send status objects cyclically © 2023 WEINZIERL ENGINEERING GmbH Page 18/49...
- Page 19 This parameter defines the cycle time. Values range from 1 minute to 7 days. Group object Type KNX Size Direction GO 10 Mains power uptime in s – State 13.100 4 Byte To KNX © 2023 WEINZIERL ENGINEERING GmbH Page 19/49...
-
Page 20: Test Channels
“Refresh” button. Only the physical address needs to be programmed to activate this function. When the channels are activated via the ETS, control via the bus is deactivated. The device is reset to normal operation one minute after the last button is pressed. © 2023 WEINZIERL ENGINEERING GmbH Page 20/49... -
Page 21: Diagnostics
"Refresh" buttons. To activate the function, only the physical address needs to be programmed. Show reset buttons This parameter activates buttons for resetting the diagnostic data of the channels. © 2023 WEINZIERL ENGINEERING GmbH Page 21/49... -
Page 22: Channel 1 - 12: General
▪ Universal output ▪ On/Off delay ▪ Staircase function ▪ Valve actuator (PWM for thermal servo) More detailed descriptions of the functions can be found in the sections “Channel 1 – 12: ...” © 2023 WEINZIERL ENGINEERING GmbH Page 22/49... - Page 23 “Channel 1 – 12: Disable function” parameter page appear for further configuration. If the disable function has been enabled via the “Disable” group object, the control values received are not evaluated. © 2023 WEINZIERL ENGINEERING GmbH Page 23/49...
- Page 24 Behavior on mains power loss (with Function != “Disabled”) The behavior that is maintained at the output during the mains voltage failure can be configured here. The choice is yours: ▪ No reaction ▪ Switch on ▪ Switch off © 2023 WEINZIERL ENGINEERING GmbH Page 24/49...
- Page 25 Status objects send cyclically according to elapsed operating time. ▪ Cyclic by real-time and operating time Status objects send cyclically according to past real time and past operating time. Various values can be selected for the respective times. © 2023 WEINZIERL ENGINEERING GmbH Page 25/49...
- Page 26 This parameter defines the cycle time. Values range from 1 minute to 7 days. Group object Type KNX Size Direction GO 20 Channel 1 – 12: Switch cycle counter – State 13.100 4 Byte To KNX © 2023 WEINZIERL ENGINEERING GmbH Page 26/49...
-
Page 27: Channel 1 - 12: Locking Function
Behavior on start The status that is set when the lock is enabled at the output can be configured here. The choice is yours: ▪ No reaction ▪ Switch on ▪ Switch off © 2023 WEINZIERL ENGINEERING GmbH Page 27/49... - Page 28 Polarity of object The mode of action of the object can be used to set how the lock is to be enabled - either by receiving a 1 or by receiving a 0. © 2023 WEINZIERL ENGINEERING GmbH Page 28/49...
-
Page 29: Channel 1 - 12: Universal Output
A parameter for the scene function is also displayed. Group object Type KNX Size Direction GO 11 Channel 1 – 12: Output - Switch 1.001 1 Bit From KNX © 2023 WEINZIERL ENGINEERING GmbH Page 29/49... -
Page 30: Channel 1 - 12: Scene Function
This allows the user to customize the scene without ETS download. Number This parameter sets any scene number between 1 and 64 to the scene. There must not configured any scene numbers twice. © 2023 WEINZIERL ENGINEERING GmbH Page 30/49... -
Page 31: Channel 1 - 12: On/Off Delay
The duration of the switch-off delay is configured in this parameter. --1---------0------ Input: Output: --1---------|-T-0— Retriggerable If these parameters are activated, the respective delay time is restarted upon receipt of the corresponding switching signal. © 2023 WEINZIERL ENGINEERING GmbH Page 31/49... -
Page 32: Channel 1 - 12: Staircase Function
If these parameters are activated, the respective delay time is restarted upon receipt of the corresponding switching signal. Reaction to 'OFF' telegram This parameter can be used to set whether an OFF telegram on the object of the staircase function should be processed or ignored. © 2023 WEINZIERL ENGINEERING GmbH Page 32/49... - Page 33 LED lamps often have a long follow-up time, in which the lamp still lights even though it is already switched off. With such lamps longer interrupt times must be set to generate a “visible” interruption. © 2023 WEINZIERL ENGINEERING GmbH Page 33/49...
-
Page 34: Channel 1 - 12: Valve Actuator (Pwm For Thermal Servo)
The received control value is saved automatically by the device, to continue faultless after a possible bus power loss. Group object Type KNX Size Direction GO 11 Channel 1 – 12: Valve actuator (PWM) - control value 5.001 1 Byte From KNX © 2023 WEINZIERL ENGINEERING GmbH Page 34/49... - Page 35 As soon as this extended telegram pause has occurred, it can be assumed that the corresponding controller has failed or the connection between the controller and the valve actuator has been interrupted. © 2023 WEINZIERL ENGINEERING GmbH Page 35/49...
- Page 36 As soon as telegrams from the controller are received again, the protection control value (PWM) is overwritten by the received value. The protection does not react again, until the waiting time in the set monitoring interval is exceeded between individual telegrams. © 2023 WEINZIERL ENGINEERING GmbH Page 36/49...
-
Page 37: Logic / Timer / Calculation
The functions for timer and logic can be linked to one another by means of the associated group objects. This also allows to create complex structures. For this purpose, the output of a function is set to the same group address as the input of the next function. © 2023 WEINZIERL ENGINEERING GmbH Page 37/49... -
Page 38: Function 1 - 16: Timer
The ON telegram (1) received on the input is delayed on the output. Input: --1---------0------ Output: --|-T-1-----0------ Group object Type KNX Size Direction Timer – Switch-on delayed – Input 1.002 1 Bit From KNX Timer – Switch-on delayed – Output 1.002 1 Bit To KNX © 2023 WEINZIERL ENGINEERING GmbH Page 38/49... - Page 39 Delay [s] This parameter defines the delay when sending at the output. Output Via this parameter the sent value on the output can be inverted: ▪ Not inverted ▪ Inverted © 2023 WEINZIERL ENGINEERING GmbH Page 39/49...
-
Page 40: Function 1 - 16: Logic
It is visible in the group object entry in the ETS software. This makes it easier to work with the associated group objects later, as the assigned name is displayed there as a designation. © 2023 WEINZIERL ENGINEERING GmbH Page 40/49... - Page 41 This parameter defines the number of inputs for the logic gate. Input (A, B, C, D) This parameter specifies whether the input is to be filled via an external (from the bus) or internal value (from the device). © 2023 WEINZIERL ENGINEERING GmbH Page 41/49...
-
Page 42: Function 1 - 16: Compare
It is visible in the group object entry in the ETS software. This makes it easier to work with the associated group objects later, as the assigned name is displayed there as a description. © 2023 WEINZIERL ENGINEERING GmbH Page 42/49... - Page 43 Send value is enabled. Input B This parameter specifies whether the input is to be filled via an external (from the bus), static (from the ETS) or internal value (from the device). © 2023 WEINZIERL ENGINEERING GmbH Page 43/49...
- Page 44 The output sends when a telegram is received at an input. The condition for this is that both inputs are valid (have received at least one telegram). The output sends a 1 if the respective condition is fulfilled, otherwise a 0. © 2023 WEINZIERL ENGINEERING GmbH Page 44/49...
-
Page 45: Function 1 - 16: Calculation
This parameter defines the type of comparison operation: ▪ Average value of input A and B (input A + input B) / 2 ▪ Convert value Convert input A to another type ▪ Limit value Limit input A © 2023 WEINZIERL ENGINEERING GmbH Page 45/49... - Page 46 Send value is enabled. For a combination of internal and external inputs, both should have an equivalent type. Otherwise, a new calculation function with the “Convert value” operation may help. © 2023 WEINZIERL ENGINEERING GmbH Page 46/49...
- Page 47 Value range: 0 - 4294967295 ▪ Floating point number (DPT 9.001 - 2 Bytes) Value range: -671088.64 - +670433.28 ▪ Floating point number (DPT 14.001 - 4 Bytes) Value range: -3.4E+38 - +3.4E+38 © 2023 WEINZIERL ENGINEERING GmbH Page 47/49...
- Page 48 The output sends when a telegram is received at an input. The condition for this is that both inputs are valid (have received at least one telegram). The output sends a 1 if the respective condition is fulfilled, otherwise a 0. © 2023 WEINZIERL ENGINEERING GmbH Page 48/49...
- Page 49 Product database for ETS 5/6 WEINZIERL ENGINEERING GmbH www.weinzierl.de/de/products/512/ets6 Achatz 3-4 DE-84508 Burgkirchen an der Alz Data sheet www.weinzierl.de/de/products/512/datasheet Phone: +49 8677 / 916 36 CE declaration E-Mail: info@weinzierl.de www.weinzierl.de/de/products/512/ce-declaration Web: www.weinzierl.de Tender text www.weinzierl.de/de/products/512/tender-text 2024-09-18 © 2023 WEINZIERL ENGINEERING GmbH Page 49/49...
