Weinzierl KNX TP Push Button 420 secure Operation And Installation Manual

Knx tp push button insert with knx data security for match 55 series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

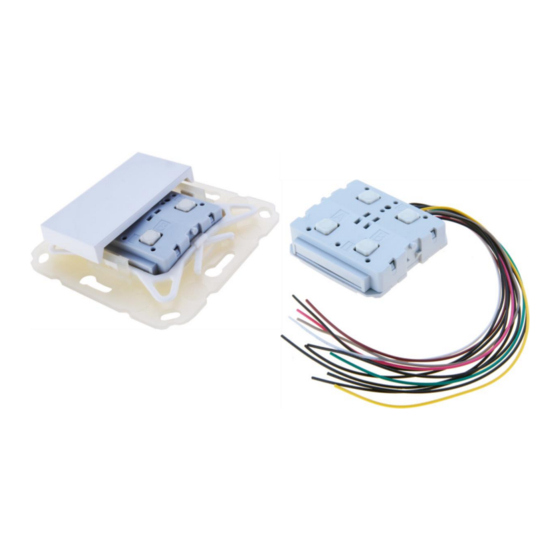

KNX TP Push Button Insert with KNX Data Security
For MATCH 55 series
KNX TP Push Button 420 secure
KNX TP Push Button Interface 420 secure
Operation and installation manual
(Art. # 5375 Insert with mounting kit and single rocker)
(Art. # 5325 Insert with mounting kit and double rocker)
(Art. # 5385 Insert with connection cable for push button interface)
(Art. # 5482 Insert without mounting kit)
WEINZIERL ENGINEERING GmbH
Achatz 3-4
84508 Burgkirchen an der Alz
GERMANY
+49 8677 / 916 36 – 0
Tel.:
E-Mail: info@weinzierl.de
Web: www.weinzierl.de
© 2023 Weinzierl Engineering GmbH
Seite 1/50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNX TP Push Button 420 secure and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weinzierl KNX TP Push Button 420 secure

Summary of Contents for Weinzierl KNX TP Push Button 420 secure

  • Page 1 KNX TP Push Button Insert with KNX Data Security For MATCH 55 series KNX TP Push Button 420 secure KNX TP Push Button Interface 420 secure Operation and installation manual (Art. # 5375 Insert with mounting kit and single rocker) (Art.

  • Page 2: Table Of Contents

    Button function “Generic” ....................39 7.15 7.16 Sequence controller ......................42 7.17 Logic / Timer ........................45 Function 1 – 10: Timer ....................... 46 7.18 Function 1 – 10: Logic ......................48 7.19 © 2023 Weinzierl Engineering GmbH Seite 2/50...

  • Page 3: Application

    1 Application The KNX TP Push Button 420 secure is a push button insert with integrated bus coupling unit. The device is available with one or two rockers. Each rocker offers two pressure points (up/down). The device is part of the MATCH 55 push button series. With the supplied installation kit, the push button fits mechanically to numerous switch ranges available on the market with internal dimensions of 55 mm.

  • Page 4: Knx Programming Mode

    In the factory default settings, the device has the physical address 15.15.255 and no group addresses are connected. Also, KNX Data Security is disabled and the initial key (FDSK) must be used for secure commissioning. © 2023 Weinzierl Engineering GmbH Seite 4/50...

  • Page 5: Wiring Scheme

    Black Common ground LED Bottom [1] LED1 Black Common ground All black connecting cables are internally connected to ground in the device. The KNX connection is located on the underside of the device. © 2023 Weinzierl Engineering GmbH Seite 5/50...

  • Page 6: Mounting And Delivery

    5 Mounting and delivery 5.1 Mounting Mounting of the KNX TP Push Button 420 secure ①: ▪ Insert the device ① from above into the holding frame ②. The device snaps into the ③ retaining lugs of the holding frame on the left and right and sits flush on the four retaining lugs ④.

  • Page 7: Delivery

    5.2 Delivery KNX TP Push Button 420 secure, single rocker (Art. # 5375): ▪ Push button insert ① ▪ Holding frame ② ▪ ⑤ Wall mounting frame ▪ Single rocker (no picture) KNX TP Push Button 420 secure, double rocker (Art. # 5325): ▪...

  • Page 8: Ets Database

    KNX TP Push Button 420 secure (www.weinzierl.de) or from the ETS online catalogue. The KNX TP Push Button 420 secure supports KNX Data Security to protect the device against unauthorized access from the KNX bus. If the device is programmed via the KNX bus, this is done with encrypted telegrams.
  • Page 9 The initial key is reactivated after a reset to factory default settings. The serial number in the certificate enables the ETS to assign the correct key to a device during a download. © 2023 Weinzierl Engineering GmbH Seite 9/50...
  • Page 10 In the ETS project in the properties of the device, secure commissioning can be activated and the device certificate can be added: © 2023 Weinzierl Engineering GmbH Seite 10/50...

  • Page 11: Secure Group Communication

    A key is changed by the ETS e.g. when the encryption of a group address is switched off and on again. © 2023 Weinzierl Engineering GmbH Seite 11/50...

  • Page 12: Description

    7.3 Description This page shows the device description and the associated wiring scheme. © 2023 Weinzierl Engineering GmbH Seite 12/50...

  • Page 13: General Settings

    7.4 General settings Device name (30 characters) An arbitrary name can be assigned for the KNX TP Push Button 420 secure. The device name should be meaningful, e.g. “Living Room”. This helps the clarity of the ETS project. Send delay after bus power return A send delay of telegrams after the return of the bus voltage can be set via this parameter.
  • Page 14 Here the operating mode of the LEDs in normal operation can be set, it is selectable: ▪ Disabled LED is disabled always. ▪ Enabled LED is enabled always. ▪ Via group object LED is operated only via group object. ▪ Bus traffic LED indicates bus communication. © 2023 Weinzierl Engineering GmbH Seite 14/50...

  • Page 15: Button A0: General

    3 inputs/buttons is according to the 1st. Button function The following functions are selectable: ▪ Switching ▪ Dimming ▪ Shutter ▪ Send value ▪ Color ▪ Scene ▪ Impulse counter ▪ Generic © 2023 Weinzierl Engineering GmbH Seite 15/50...

  • Page 16: Button Function "Switching

    The time for detection of a long button press can be set in the general parameters and is valid for all inputs/buttons. User control The parameter “User control” determines whether telegrams are sent when the input is changed (e.g. key switches) or when the button is operated short/long (e.g. button for switching/dimming). © 2023 Weinzierl Engineering GmbH Seite 16/50...
  • Page 17 The telegram can be configured here, which is sent on the according object when the lock is activated. Behavior of object a/b at end (only for button lock) The telegram can be configured here, which is sent on the according object when the lock is deactivated. © 2023 Weinzierl Engineering GmbH Seite 17/50...

  • Page 18: Button Function "Dimming

    12. Dimming direction after switch on (only for toggle direction) This parameter is only visible on toggle direction and determines the dimming direction of the next dimming command following an ON telegram. © 2023 Weinzierl Engineering GmbH Seite 18/50...

  • Page 19: Button Function "Shutter

    GO 12 Button A0: Drive stop – Step/Stop 1.007 1 Bit To KNX The time for detection of a long button press can be set in the general parameters and is valid for all inputs/buttons. © 2023 Weinzierl Engineering GmbH Seite 19/50...
  • Page 20 Release after long actuation after turning time: No reaction Actuation during drive: Stop/Step command via object 12 Very long actuation: Additional function ▪ Hold (Deadman switch) On actuation: Drive command via object 11 On release: Stop/Step command via object 12 © 2023 Weinzierl Engineering GmbH Seite 20/50...
  • Page 21 GO 13 Button A0: Additional function – Dimming relative 3.007 4 Bit To KNX ▪ Drive up ▪ Drive down Group object Type KNX Size Direction GO 13 Button A0: Additional function – Up/Down 1.008 1 Bit To KNX © 2023 Weinzierl Engineering GmbH Seite 21/50...
  • Page 22 The telegram can be configured here, which is sent when the lock is activated. Behavior at end (only for button lock) The telegram can be configured here, which is sent when the lock is deactivated. © 2023 Weinzierl Engineering GmbH Seite 22/50...

  • Page 23: Button Function "Send Value

    Type KNX Size Direction GO 11 Button A0: Send blind position – Set position 5.001 1 Byte To KNX GO 12 Button A0: Send slat position – Set position 5.001 1 Byte To KNX © 2023 Weinzierl Engineering GmbH Seite 23/50...
  • Page 24 The telegram can be configured here, which is sent when the lock is activated. Behavior at end (only for button lock) The telegram can be configured here, which is sent when the lock is deactivated. © 2023 Weinzierl Engineering GmbH Seite 24/50...

  • Page 25: Button Function "Color

    5.010 1 Byte To KNX GO 12 Button A0: Value G – Set color 5.010 1 Byte To KNX GO 13 Button A0: Value B – Set color 5.010 1 Byte To KNX © 2023 Weinzierl Engineering GmbH Seite 25/50...
  • Page 26 After the delay time has expired, the list starts again at the first color position on the next short button press. When the button lock is used, the color position is always reset when unlocking. © 2023 Weinzierl Engineering GmbH Seite 26/50...
  • Page 27 With this function, a byte value can be sent. A parameter for selecting the value is displayed. Group object Type KNX Size Direction GO 15 Button A0: Additional function – Send value 5.001 1 Byte To KNX © 2023 Weinzierl Engineering GmbH Seite 27/50...
  • Page 28 The telegram can be configured here, which is sent when the lock is activated. Behavior on end (only for button lock) The telegram can be configured here, which is sent when the lock is deactivated. © 2023 Weinzierl Engineering GmbH Seite 28/50...

  • Page 29: Button Function "Scene

    If only one scene position is activated, it is sent on short button press. If several scene positions are used, the activated positions are switched through with each short button press. The behavior for selecting and sending the scene positions can be determined by the following parameter. © 2023 Weinzierl Engineering GmbH Seite 29/50...
  • Page 30 This function is used to override the behavior as set in the parameter Reset scene position. ▪ Call scene The scene configured in the appearing parameter is sent. ▪ Save last scene A telegram for “save scene” with the last sent scene is triggered. ▪ Additional function © 2023 Weinzierl Engineering GmbH Seite 30/50...
  • Page 31 With this parameter the button lock can be enabled. If the lock has been activated via the group object, no telegrams are triggered by state changes of the input/button. Group object Type KNX Size Direction GO 16 Button A0: Lock – Activate 1.001 1 Bit From KNX © 2023 Weinzierl Engineering GmbH Seite 31/50...

  • Page 32: Button Function "Impulse Counter

    Here, the scaled counter can be activated, the parameters of “Scaled counter” are displayed when activated. Rate of change (e.g. [kW], [m/s], [km/h]) The counter for a rate of change can be activated here. If activated, the “Rate of change” parameters are displayed. © 2023 Weinzierl Engineering GmbH Seite 32/50...

  • Page 33: Impulse Counter "Scaled Counter (E.g. [Kwh])

    The datapoint type of output object of the counter variable can be selected here: ▪ Integer (32 Bit) – DPT 13 Group object Type KNX Size Direction GO 11 Button A0: Counter – Value 13.013 4 Byte To KNX © 2023 Weinzierl Engineering GmbH Seite 33/50...
  • Page 34 Behavior on reaching limit value (object) (only for monitoring limit value) Here it is possible to determine whether a 0 or a 1 is sent via the object “Counter threshold – State” when the limit value is reached. © 2023 Weinzierl Engineering GmbH Seite 34/50...
  • Page 35 Behavior on end of lock (only for lock function) With this parameter the behavior of the counter can be configured when the lock is deactivated: ▪ Counter continue ▪ Counter reset and continue © 2023 Weinzierl Engineering GmbH Seite 35/50...

  • Page 36: Impulse Counter "Rate Of Change (E.g. [Kw], [M/S], [Km/H])

    Here the time base of the rate of change can be specified: ▪ Pulses per second (e.g. [m/s], [km/h]) Value from parameter Scaling factor is multiplied by 1 ▪ Pulses per hour (e.g. [kW]) Value from parameter Scaling factor is multiplied by 3600. © 2023 Weinzierl Engineering GmbH Seite 36/50...
  • Page 37 Both sending conditions are active. Monitoring limit value When limit monitoring is activated, the following object is displayed: Group object Type KNX Size Direction GO 14 Button A0: Rate threshold – State 1.002 1 Bit To KNX © 2023 Weinzierl Engineering GmbH Seite 37/50...
  • Page 38 The rate of change counter measures the wind speed: Scaling factor (Output in m/s): 1/4 = 0.25 Scaling factor (Output in km/h): 1/4 * 3.6 = 0.9 Time base: Pulses per second Measuring interval: 10 s © 2023 Weinzierl Engineering GmbH Seite 38/50...

  • Page 39: Button Function "Generic

    GO 13 Button A0: Pressed short – ... Depending on function To KNX Button – Pressed long ▪ Group object Type KNX Size Direction GO 14 Button A0: Pressed long – ... Depending on function To KNX © 2023 Weinzierl Engineering GmbH Seite 39/50...
  • Page 40 With this function a scene can be sent, a parameter for selecting the scene is displayed. Group object Type KNX Size Direction GO ... Taster A0: ... – Call scene 18.001 1 Byte To KNX © 2023 Weinzierl Engineering GmbH Seite 40/50...
  • Page 41 Polarity of object (only for button lock) This parameter can be used to determine how the lock is to be activated, either by receiving a 1 or a 0. The corresponding telegram switches the lock off again. © 2023 Weinzierl Engineering GmbH Seite 41/50...

  • Page 42: Sequence Controller

    Sequence call via binary object This parameter activates the following binary object to control the sequence: Group object Type KNX Size Direction GO 141 Sequence controller: Sequence 1 – Binary 1.001 1 Bit From KNX © 2023 Weinzierl Engineering GmbH Seite 42/50...
  • Page 43 ▪ When the corresponding value is received, the function Sequence ‘Off’ is started; any further starting of this function by receiving this value is no longer possible until the sequence has been started. © 2023 Weinzierl Engineering GmbH Seite 43/50...
  • Page 44 GO 143 Sequence controller: Sequence 1 – Scene ‘Off’ 18.001 1 Byte From KNX If “Start once (until sequence ‘Off’)” is set for sequence call up with scene object, sequence ‘Off’ must first be executed to start the sequence again. © 2023 Weinzierl Engineering GmbH Seite 44/50...

  • Page 45: Logic / Timer

    This determines the waiting time from starting the sequence (output A) or from sending the previous output (output B – H), which waits until the output telegram of the corresponding output has been sent. 7.17 Logic / Timer © 2023 Weinzierl Engineering GmbH Seite 45/50...

  • Page 46: Function 1 - 10: Timer

    The name is visible in the group object entry in the ETS software. This makes it easier to work with the associated group objects, because the given name is displayed there as a label. © 2023 Weinzierl Engineering GmbH Seite 46/50...
  • Page 47 Each timer can be stopped by sending the opposite value to its input group object. For example: An already started switch-on timer can be stopped by sending OFF (0) to its input group object. © 2023 Weinzierl Engineering GmbH Seite 47/50...

  • Page 48: Function 1 - 10: Logic

    The name is visible in the group object entry in the ETS software. This makes it easier to work with the associated group objects, because the given name is displayed there as a label. © 2023 Weinzierl Engineering GmbH Seite 48/50...
  • Page 49 Logic – Gate input – Input 1.002 1 Bit From KNX Logic – Gate output – Output 1.002 1 Bit To KNX The output transmits when a telegram is received on the input. © 2023 Weinzierl Engineering GmbH Seite 49/50...
  • Page 50 WEINZIERL ENGINEERING GmbH www.weinzierl.de/en/products/420/ets6 Achatz 3-4 84508 Burgkirchen an der Alz Data sheet GERMANY www.weinzierl.de/en/products/420/single/datasheet Tel.: +49 8677 / 916 36 – 0 www.weinzierl.de/en/products/420/double/datasheet www.weinzierl.de/en/products/420/interface/datasheet E-Mail: info@weinzierl.de Web: www.weinzierl.de CE Declaration www.weinzierl.de/en/products/420/ce-declaration 2023-04-04 © 2023 Weinzierl Engineering GmbH Seite 50/50...
