Operation and installation manual
KNX IO 534 (4D)
(Art. # 5314)
Dimming actuator with 4 PWM dimming outputs
Application with RGB / RGBW / Tunable White support
KNX IO 534 (4D)
Application area
The KNX IO 534 (4D) is a compact RGB / RGBW / Tunable
White dimming actuator with 4 PWM outputs.
The dimming actuator can be used e.g. for LED panels or stripes
with RGB / RGBW / Tunable White configuration or as 4 inde-
pendent PWM dimmer channels. Every configuration allows con-
trolling the channel by switching, rel. dimming and dimming
value.
Several comfort functions are integrated as well, including
scenes, slumber fading, staircase light and sequencer.
Two push buttons and three LEDs allow a local operation and a
visualization of the device state.
In addition to the output channels the device includes 16 inde-
pendent functions for logic or timer control.

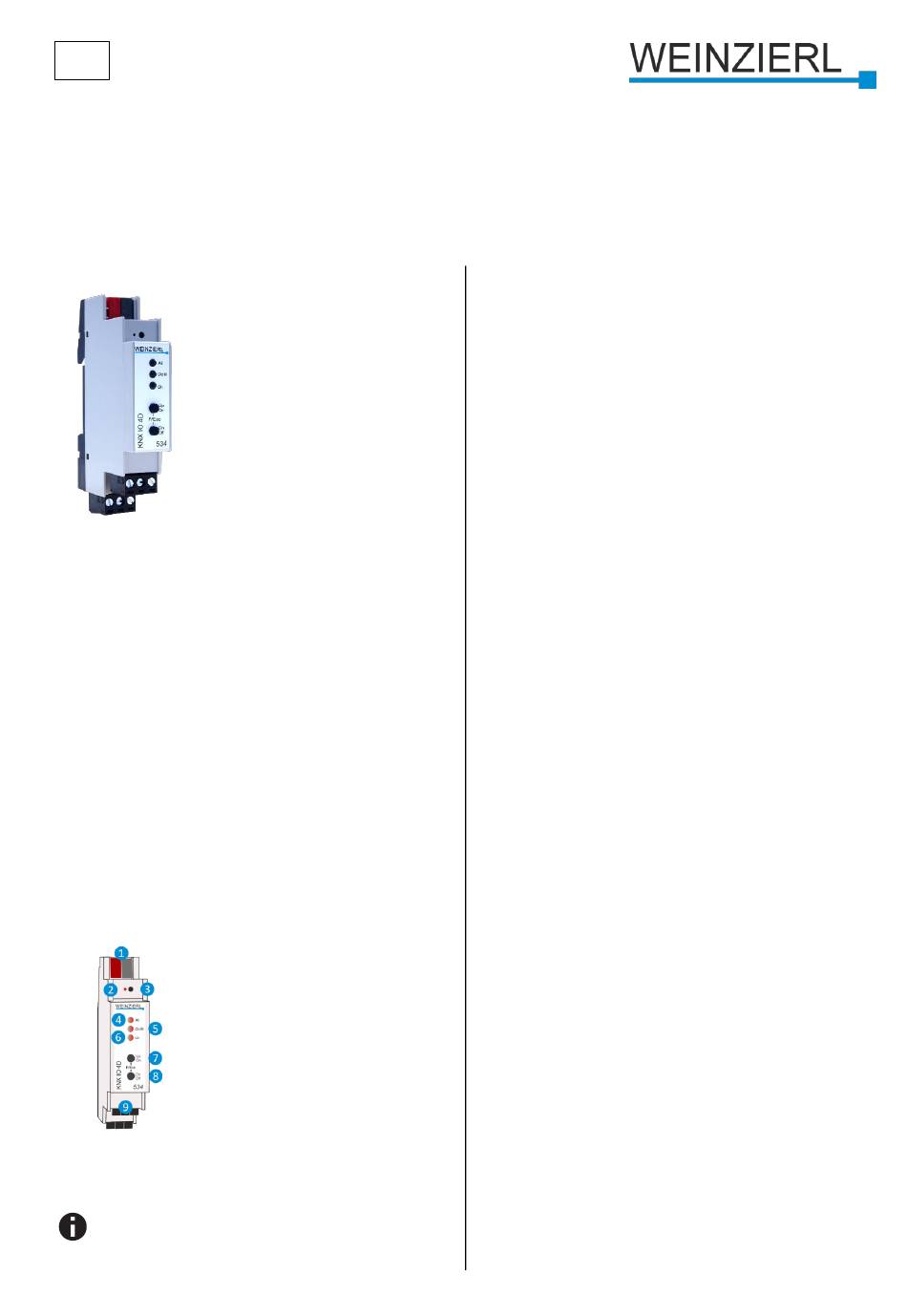

1. Installation and connection
The KNX IO 534 is designed for installation on a DIN rail (35
mm) with a width of 1 units (18 mm). An installation-friendly de-
sign with pluggable screw terminals helps to reduce the cost of
commissioning. It features the following controls and displays:
❶
❷
❸
❹
❺
❻
❼
❽
❾
This device is powered by the KNX bus. An external power sup-
ply is not necessary.
The device is not working without bus power.
©2019 WEINZIERL ENGINEERING GmbH
KNX bus connector
Programming LED
Button f. programming mode
LED All (multicolor)
LED Ch/M (multicolor)
LED Ch (multicolor)
Button Up/On
Button Dn/Off
Pluggable screw terminals
A. KNX Programming mode
The KNX programming mode is activated/deactivated either by
pressing the flushed KNX programming button
neously pressing the buttons
gramming mode via the device front buttons can be enabled /
disabled via the ETS® by changing the value of Prog. mode on
device front.
When the programming mode is active, the programming LED
❷ ❺
and LED Ch/M light red.
B. Manual operation and status display
❺
The LED Ch/M lights up or flashes if the device is success-
fully powered by the KNX bus.
The channel for manual operation can be selected by pressing
❼ ❽
button A or B short. The selected channel is indicated by
a continuous light or cyclic flashing of LED Ch/M
where the number of flash cycles indicates the number (A=1,
B=2, C=3, D=4) of the channel. On continuous light all channels
are controlled simultaneously in manual operation.
❼ ❽
Pressing button A or B
operation for the selected channel of the dimming actuator. This
is indicated by continuous light or cyclic flashing of the LED
❺
Ch/M in orange. The flashing frequency corresponds again
to the channel selection.
In manual operation, the respective channel can be switched on
❼
by pressing button On and switched off by pressing button
❽
Off short. In addition, it can be dimmed brighter with long but-
❼
ton press on and darker with long button press on
The manual operation mode can be exit by pressing the buttons
❼ ❽
(Esc) and simultaneously.
❹
LED A indicates the status of the dimming actuator. It lights
up when the channel is switched on and is off when the channel
is switched off.
❸
or by simulta-
❼ ❽
and . Accessing the pro-
❺
in green,
for a long time switches to manual
❽
.
