Weinzierl KNX IO 511 Operation And Installation Manual

EN
Operation and installation manual
KNX IO 511 (1O2I)
(Art. # 5232)
Switching actuator with 1 output and 2 binary inputs
KNX IO 511 (1O2I)
Application
The KNX IO 511 (1O2I) is a compact switching actuator with 1
bi-stable output and 2 binary inputs. The actuator provides the
function for universal outputs including scene control, timer,
staircase lighting and heating valves (PWM for thermoelectric
valve drives).
The inputs can be connected to conventional switches with an
external voltage of 12 to 230 V. In ex-factory settings the inputs
are connected internally to the actuator. The actuator combined
with input B1 serves as a latching relay. Input B2 is used for zero
crossing detection.
Two push buttons and three LEDs allow a local operation and a
visualization of the device state.
In addition to the output and input channels the device includes
16 independent functions for logic or timer control.
1. Installation and Connection

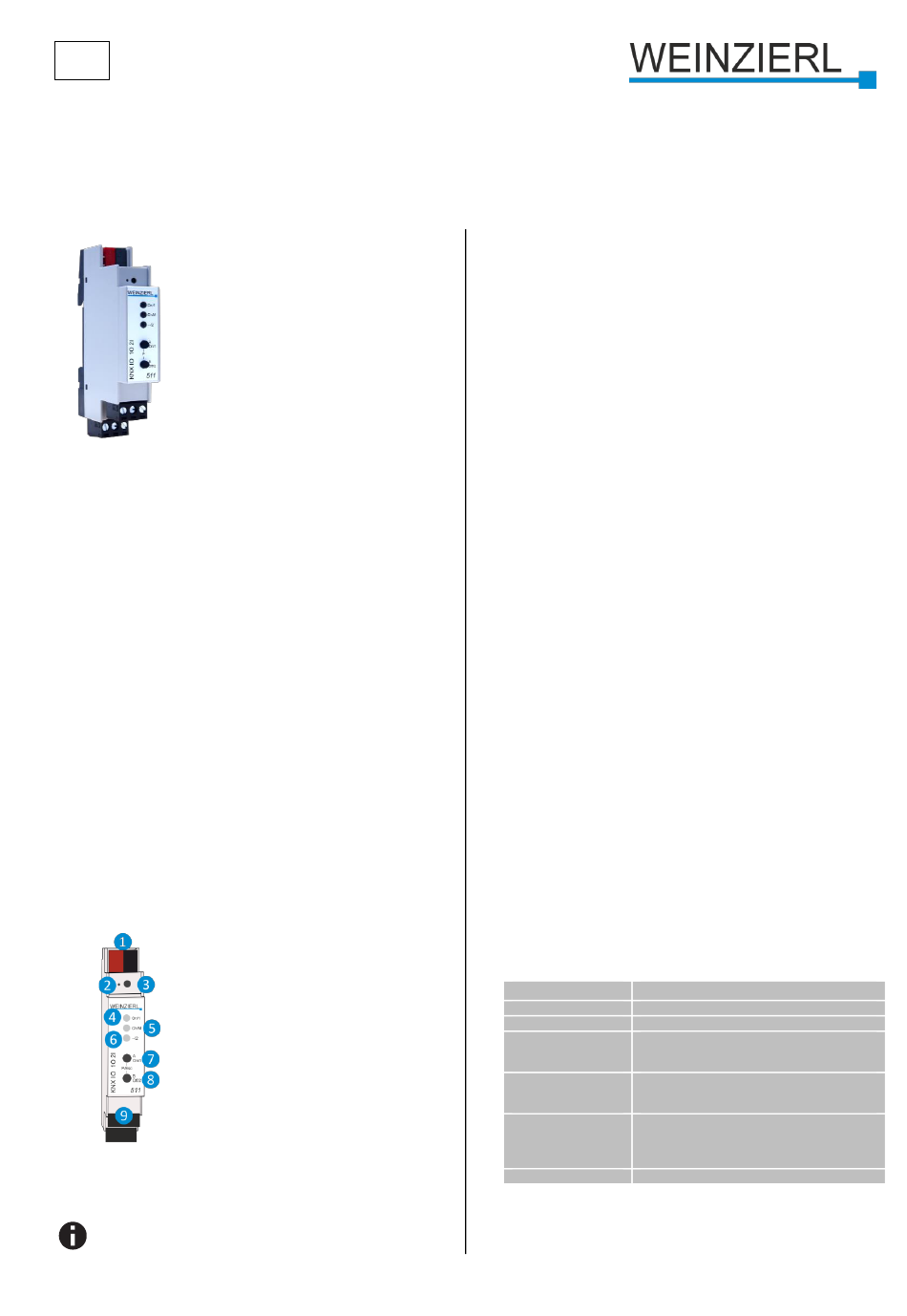

The KNX IO 511 (1O2I) is designed for installation on a DIN rail
(35 mm) with a width of 1 unit (18 mm). An installation-friendly
design with pluggable screw terminals helps to reduce the cost
of commissioning. It features the following controls and displays:
❶ KNX bus connector
❷ Programming LED
❸ Button f. programming mode
❹ LED On/1 (multicolor)
❺ LED Ch/M (multicolor)
❻ LED --/2 (multicolor)
❼ Button A (On/1)
❽ Button B (Off/2)
❾ Pluggable screw terminals
This device is powered by the KNX bus. An external power
supply is not necessary.
The device is not working without bus power.
©2019 WEINZIERL ENGINEERING GmbH
A. KNX Programming mode
The KNX programming mode is activated/deactivated either by
pressing the flushed KNX programming button
neously pressing the buttons
gramming mode via the device front buttons can be enabled /
disabled via the ETS® by changing the value of Prog. mode on
device front.
When the programming mode is active, the programming LED
❷ ❺
and LED Ch/M light red.
B. Manual operation and status display
❺
The LED Ch/M lights up or flashes if the device is successful-
ly powered by the KNX bus.
❼
By pressing button A long, the manual operation mode will
be entered for channel (A). This is indicated by cyclic single
❺
flashing of LED Ch/M in orange.
The actuator (channel A) can be switched on with button On
and switched off with button Off
can be exit by pressing the buttons (Esc)
ously.
❹
The LED A is used to display the status of the channel (A). It
lights when the channel is on and is switched off when the chan-
nel is off.
❽
By pressing button B long, the manual operation mode will
be entered for channel pair B (Ch B In1/In2).This is indicated by
cyclic double flashing of LED Ch/M
If manual operation of channel pair B is activated, the bus tele-
grams of In1 and In2 can be triggered by button 1
if input channel is configured by ETS.
❹ ❻
LED 1 and LED 2 are used to indicate state of selected
channel pair while manual operation. They light green when the
❼ ❽
button 1 or 2 is pressed.
The manual operation mode can be exit by pressing the buttons
❼ ❽
(Esc) und simultaneously.
Summary of the states of LED Ch/M
LED Status Meaning
LED lights green Device is working in standard operation mode.
LED lights red Programming mode is active.
Programming mode is not active.
LED flashes 1x orange
Manual operation is active.
Switching first channel (A)
Programming mode is not active.
LED flashes 2x orange
Manual operation is active.
Switching channel pair (B In1/In2)
Programming mode is not active.
Manual operation is not active.
LED blinks red
The device is not properly loaded e.g.
after an interrupted download.
LED blinks green The device is currently loaded by the ETS.
❸
or by simulta-
❼ ❽
and . Accessing the pro-
❽
. The manual operation mode
❼ ❽
und simultane-
❺
in orange.
❼
and 2
❺
:
Page 1/15
