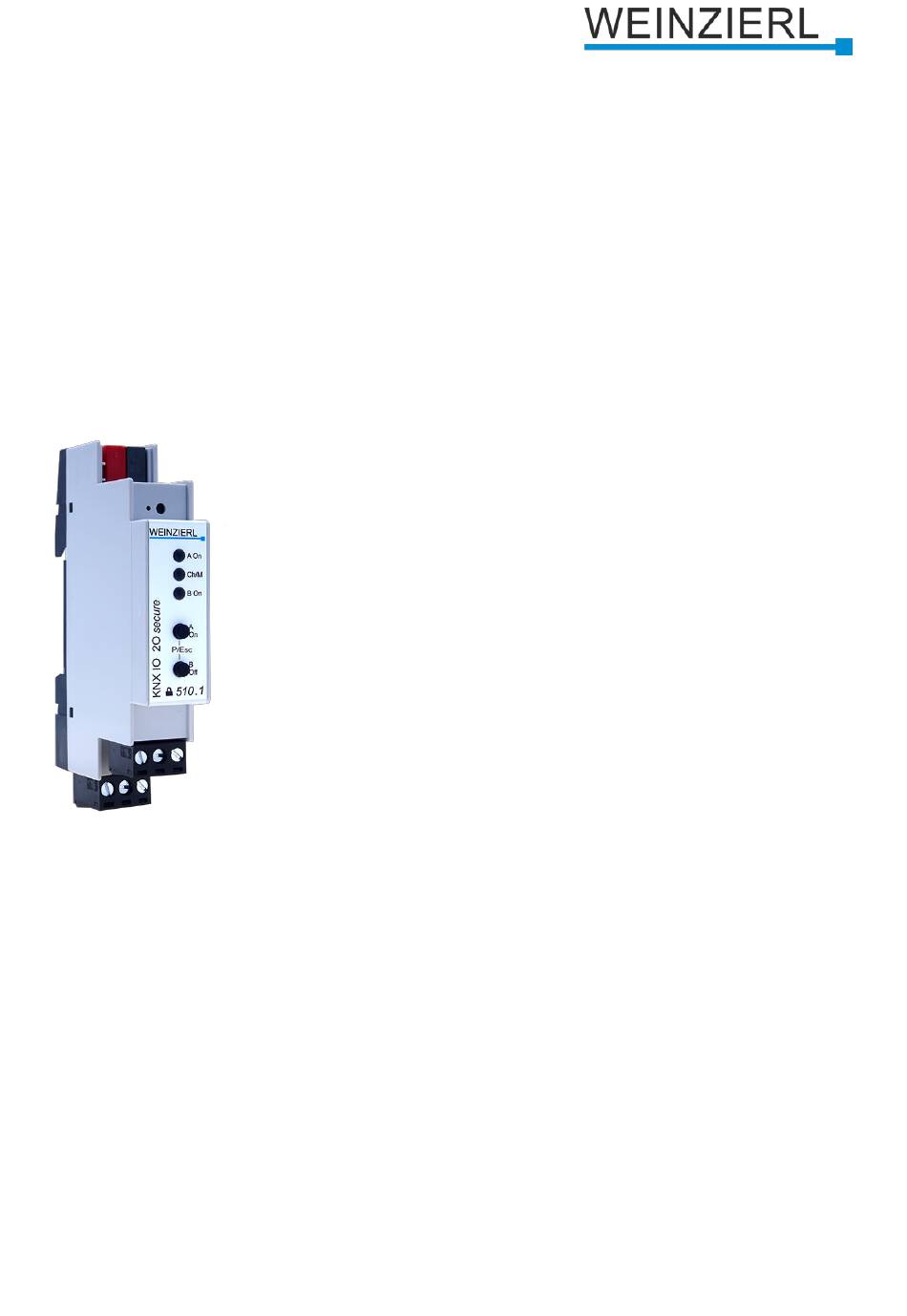

Switching actuator with 2 outputs
KNX IO 510.1 secure (2O)
Operation and installation manual
(Art. # 5444)
WEINZIERL ENGINEERING GmbH
Achatz 3-4
84508 Burgkirchen an der Alz
GERMANY
+49 8677 / 916 36 – 0
Tel.:
E-Mail: info@weinzierl.de
Web: www.weinzierl.de
© 2022 WEINZIERL ENGINEERING GmbH
Seite 1/30
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Weinzierl KNX IO 510.1 secure
Summary of Contents for Weinzierl KNX IO 510.1 secure
- Page 1 Switching actuator with 2 outputs KNX IO 510.1 secure (2O) Operation and installation manual (Art. # 5444) WEINZIERL ENGINEERING GmbH Achatz 3-4 84508 Burgkirchen an der Alz GERMANY +49 8677 / 916 36 – 0 Tel.: E-Mail: info@weinzierl.de Web: www.weinzierl.de ©...
-
Page 2: Table Of Contents
Actuator A / B: Valve actuator (PWM for thermal servo) ............. 22 6.12 Logic / Timing........................25 Function 1 – 16: Timer ....................... 26 6.13 Function 1 – 16: Logic ......................28 6.14 © 2022 WEINZIERL ENGINEERING GmbH Seite 2/30... -
Page 3: Application
The device supports KNX Data Security. 2 Installation and connection The KNX IO 510.1 secure (2O) is designed for a DIN rail (35 mm) with a width of 1 unit (18 mm). An installation-friendly design with pluggable screw terminals helps to reduce costs of commissioning. -
Page 4: Knx Programming Mode
The programming mode is not active. Manual operation is not active. LED flashes red The device is not loaded correctly e.g. after aborting a download. LED flashes green The device is currently loaded by the ETS. © 2022 WEINZIERL ENGINEERING GmbH Seite 4/30... -
Page 5: Reset To Factory Default Settings
Channel A is located on the upper and channel B on the lower terminal. It is allowed to connect on the upper terminal compared to the lower terminal a different phase or voltage. © 2022 WEINZIERL ENGINEERING GmbH Seite 5/30... -
Page 6: Pin Assignment
Ch B Connection channel B Output connected as closing contact Ch B Common connection for channel B e.g. the voltage to be switched Positive connection for KNX bus Ground connection for KNX bus © 2022 WEINZIERL ENGINEERING GmbH Seite 6/30... -
Page 7: Knx Security
Encrypted telegrams are longer than the previously used unencrypted ones. For secure programming via the bus, it is therefore necessary that the interface used (e.g. USB) and any intermediate line couplers support the so called KNX long frames. © 2022 WEINZIERL ENGINEERING GmbH Seite 7/30... -
Page 8: Ets Database
KNX IO 510.1 secure (2O) (www.weinzierl.de) or from the ETS online catalogue. The KNX IO 510.1 secure (2O) supports KNX Data Security to protect the device against unauthorized access from the KNX bus. If the device is programmed via the KNX bus, this is done with encrypted telegrams. - Page 9 The initial key is reactivated after a reset to factory default settings. The serial number in the certificate enables the ETS to assign the correct key to a device during a download. © 2022 WEINZIERL ENGINEERING GmbH Seite 9/30...
-
Page 10: Secure Group Communication
6.2 Secure group communication Each object of the device can communicate either encrypted or unencrypted. The encryption is set under “Security” in the properties of the used group address: © 2022 WEINZIERL ENGINEERING GmbH Seite 10/30... - Page 11 A key is changed by the ETS e.g. when the encryption of a group address is switched off and on again. © 2022 WEINZIERL ENGINEERING GmbH Seite 11/30...
-
Page 12: Description
6.4 General settings Device name (30 characters) An arbitrary name can be assigned for the KNX IO 510.1 secure (2O). The device name should be meaningful, e.g. “Living Room”. This helps the clarity of the ETS project. © 2022 WEINZIERL ENGINEERING GmbH... - Page 13 Cyclic sending of values to the KNX bus, to indicate that the device is operational. For the Cycle time values between 1 min and 24 h are selectable. Group object Type KNX Size Direction GO 1 Heartbeat – Trigger 1.001 1 bit To KNX © 2022 WEINZIERL ENGINEERING GmbH Seite 13/30...
-
Page 14: Actuator A / B: General
“Actuator A / B: Scene function” are displayed for further configuration of scenes 1 – 16. Group object Type KNX Size Direction GO 12 Actuator A / B: Scene – Activ./Lrn. 18.001 1 bit From KNX © 2022 WEINZIERL ENGINEERING GmbH Seite 14/30... - Page 15 To KNX * for function = “Valve actuator (PWM for thermal servo)” Time for cyclic state Is selected state object “Cyclic and on change”, in this parameter the cycle time can be set. © 2022 WEINZIERL ENGINEERING GmbH Seite 15/30...
- Page 16 Thus it is possible to lock during the lecture or concert, switches that are accessible to unauthorized persons, in order to prevent unmeant switching. Nevertheless, the individual lamps can controlled by use of the priority object without canceling the lock. © 2022 WEINZIERL ENGINEERING GmbH Seite 16/30...
-
Page 17: Actuator A / B: Lock Function
This parameter configures, which state the output should set, if the lock activates. The following options are selectable: ▪ No reaction ▪ Switch on ▪ Switch of This output state can still be changed by the priority object. © 2022 WEINZIERL ENGINEERING GmbH Seite 17/30... - Page 18 This parameter defines, if the lock should be activated by receiving a 1 or by receiving a 0. The following options are selectable: ▪ Lock active on 1 ▪ Lock active on 0 © 2022 WEINZIERL ENGINEERING GmbH Seite 18/30...
-
Page 19: Actuator A / B: Universal Output
A parameter for the scene function is also displayed. Group object Type KNX Size Direction GO 11 Actuator A / B: Output – Switch 1.001 1 bit From KNX 6.8 Actuator A / B: Scene function © 2022 WEINZIERL ENGINEERING GmbH Seite 19/30... -
Page 20: Actuator A / B: On/Off Delay
Direction GO 11 Actuator A / B: Output – Switch 1.001 1 bit From KNX On delay time The duration of the switch-on delay is configured in this parameter. Input: --1---------0------ Output: --|-T-1-----0------ © 2022 WEINZIERL ENGINEERING GmbH Seite 20/30... -
Page 21: Actuator A / B: Staircase Function
Reaction on ‘OFF’ telegram This parameter can be used to set whether an OFF telegram on the object of the staircase function should be processed or ignored. © 2022 WEINZIERL ENGINEERING GmbH Seite 21/30... -
Page 22: Actuator A / B: Valve Actuator (Pwm For Thermal Servo)
The received control value is saved automatically by the device, to continue faultless after a possible bus power loss. Group object Type KNX Size Direction GO 14 Actuator A / B: Valve actuator (PWM) – Control value 5.001 1 byte From KNX © 2022 WEINZIERL ENGINEERING GmbH Seite 22/30... - Page 23 Monitoring interval (only for activated stuck protection) If the stuck protection is activated, this parameter sets the monitoring interval. If the state of the output remains unchanged for this time, the lock protection is triggered. © 2022 WEINZIERL ENGINEERING GmbH Seite 23/30...
- Page 24 Monitoring interval (only for activated protection on missing control value) If the protection on missing control value is enabled, this parameter sets the monitoring interval. If no further telegram is received by the device during this time, the protection function takes effect. © 2022 WEINZIERL ENGINEERING GmbH Seite 24/30...
-
Page 25: Logic / Timing
The functions for timer and logic can be linked to one another by means of the associated group objects. This also allows to create complex structures. For this purpose, the output of a function is set to the same group address as the input of the next function. © 2022 WEINZIERL ENGINEERING GmbH Seite 25/30... -
Page 26: Function 1 - 16: Timer
The name is visible in the group object entry in the ETS software. This makes it easier to work with the associated group objects, because the given name is displayed there as a label. © 2022 WEINZIERL ENGINEERING GmbH Seite 26/30... - Page 27 Each timer can be stopped by sending the opposite value to its input group object. For example: An already started switch-on timer can be stopped by sending OFF (0) to its input group object. © 2022 WEINZIERL ENGINEERING GmbH Seite 27/30...
-
Page 28: Function 1 - 16: Logic
The name is visible in the group object entry in the ETS software. This makes it easier to work with the associated group objects, because the given name is displayed there as a label. © 2022 WEINZIERL ENGINEERING GmbH Seite 28/30... - Page 29 Logic – Gate input – Input 1.002 1 Bit From KNX Logic – Gate output – Output 1.002 1 Bit To KNX The output transmits when a telegram is received on the input. © 2022 WEINZIERL ENGINEERING GmbH Seite 29/30...
- Page 30 ETS5 Database WEINZIERL ENGINEERING GmbH www.weinzierl.de/en/products/510.1/ets5 Achatz 3-4 84508 Burgkirchen an der Alz Data sheet GERMANY www.weinzierl.de/en/products/510.1/datasheet Tel.: +49 8677 / 916 36 – 0 CE Declaration E-Mail: info@weinzierl.de www.weinzierl.de/en/products/510.1/ce-declaration Web: www.weinzierl.de 2022-02-02 © 2022 WEINZIERL ENGINEERING GmbH Seite 30/30...
