AXIAL FAN
User's manual
www.ventilation-system.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arc and is the answer not in the manual?

Questions and answers

Summary of Contents for Vents Arc

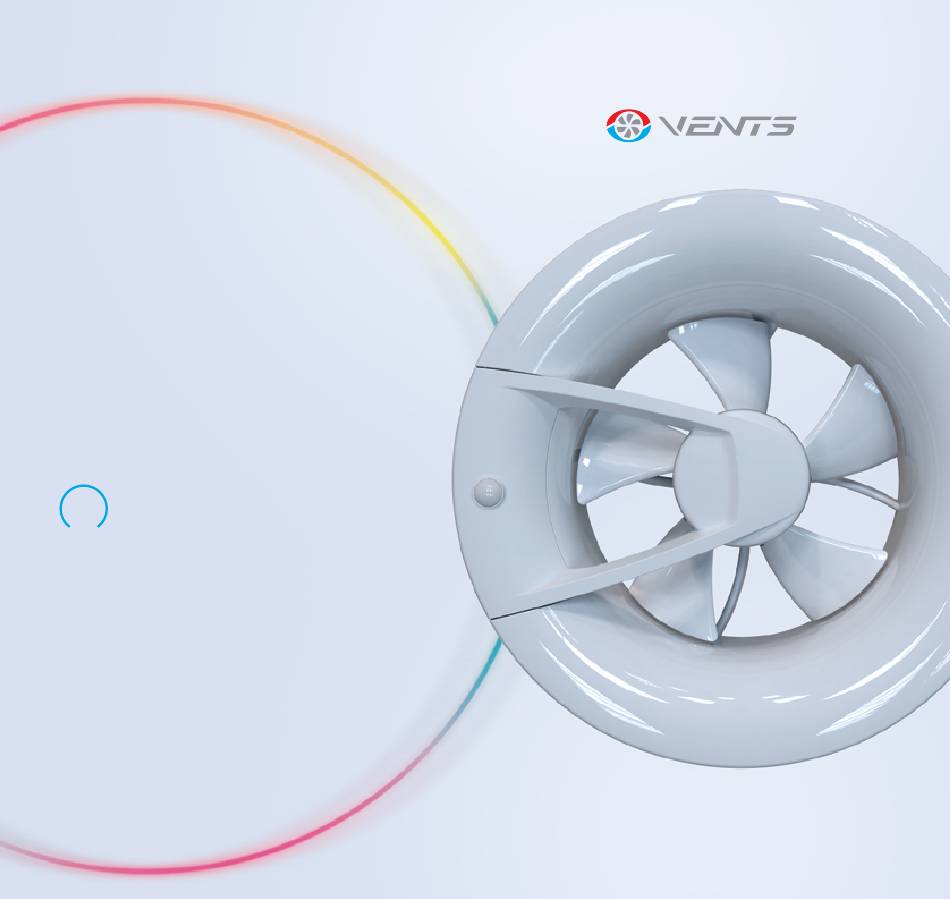

  • Page 1 Arc Smart AXIAL FAN User’s manual www.ventilation-system.com...
  • Page 2: Table Of Contents

    Manufacturer’s warranty ..........................................23 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the Arc unit and all its modifications.
  • Page 3 READ THE USER’S MANUAL CAREFULLY BEFORE PROCEEDING WITH INSTALLATION WORKS. COMPLIANCE WITH THE MANUAL REQUIREMENTS ENSURES RELIABLE OPERATION AND LONG SERVICE LIFE OF THE UNIT. KEEP THE USER’S MANUAL AVAILABLE AS LONG AS YOU USE THE UNIT. YOU MAY NEED TO REREAD THE INFORMATION ON THE PRODUCT SERVICING. This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision...
  • Page 4 Cleaning and user maintenance shall not be done by children without supervision. Children shall not play with the appliance. Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances. The appliance may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases.
  • Page 5 Ensure that the unit is switched off from the supply mains before removing the guard. All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.
  • Page 6 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
  • Page 7 The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time in order to incorporate the latest technological developments. Never touch the unit with wet or damp hands. Never touch the unit when barefoot. BEFORE INSTALLING ADDITIONAL EXTERNAL DEVICES, READ THE RELEVANT USER MANUALS.
  • Page 8: Delivery Set

    DELIVERY SET 1 pc. Screws with dowels 3 pcs. Plastic screwdriver (for Arc models only) 1 pc. User’s manual 1 pc. Packing box 1 pc. Mounting template 1 pc. Ø 100 mm spigot 1 pc. Ø 125 mm spigot 1 pc.
  • Page 9: Fan Modifications

    Overall dimensions Dimensions [mm] Ø d Ø D FAN MODIFICATIONS Functions Model Humidity Air quality Temperature Motion sensor Light sensor Wi-Fi sensor sensor sensor Arc Smart...
  • Page 10: Fan Control

    FAN CONTROL The Arc unit is controlled using a multi-position switch. Main operating modes • By default, the fan either runs continuously at low speed or does not rotate, depending on the operating mode selected. • If one or more sensors are triggered, the fan switches to the speed set for the selected fan mode and runs until the sensor signal disappears.
  • Page 11 The fan has 8 preset operation modes, which are regulated by a multi-position switch. Mode 1: the fan operates in constant ventilation mode at a speed of 20 m /h; the motion sensor, light sensor at 60 m /h and humidity sensor at 90 m /h are active.
  • Page 12 Arc Smart fan is controlled via an app on the mobile device. Vents Home – App Store Vents Home – Play Market To start using the fan, connect to it as a Wi-Fi access point with the name (FAN: + 16 character ID number) indicated on the control board and on the fan casing.
  • Page 13: Interval Ventilation

    Setup Mode To recover the Wi-Fi password or connect to a fan to change settings, the provided. To activate the mode, it is necessary to power off fan for not less than 3 second and to power on the device for not more than 2 seconds. Do this three times with the switch on the casing, until the LED under the lens starts blinking blue.
  • Page 14 Light sensor: the light sensor works in automatic mode. It accumulates statistical information about the natural light level in the room and reacts only to sudden changes in light levels. Natural changes in light levels during the day do not trigger the sensor.
  • Page 15 Index for air quality classification (IAQ) on levels of volatile organic compounds in air and its colour coding IAQ Index Air quality Influence (long term) Recommended action 0—50 Excellent Fresh air; best for well-being No action required 51—100 Good Does not irritate mucous or No action required respiratory passages and does not affect well-being...
  • Page 16: Installation

    INSTALLATION The fan can be installed on the ceiling or on the wall, with air discharge into a round air duct of suitable diameter. A fan with direct air discharge upwards must not be installed. The unit can be installed in bathroom zone 1 (except for the power cable from above), provided that the installation and wiring are in accordance with IEC 60364-7-701 (current version) and in accordance with the national standards of the country of...
  • Page 17 Fan installation sequence: 1. Cut off power supply to the unit and make sure that the electricity is switched off. For 12 V power supply, install an external DC power switch (not included in the delivery set). 2. Run the power cable to the vent hole. The power cable can be routed on top or bottom of the fan or on top of the fan if the power cable is routed through the wall.
  • Page 18 3. Remove the front panel from the fan and the cover. To lead the cable from above, you need to make a hole in the upper part of the front panel of the fan. To mark the place of cutting, use the template. The fan casing has a smaller thickness where the template needs to be attached. WARNING! Use a power tool with an abrasive attachment or a suitable hand tool to cut the hole.
  • Page 19 4. Use the template to mark and drill the holes for the fan mounting, install the fan. 5. Run the power supply cable through the cable gland in the selected way and connect the fan to the power mains as shown in the wiring diagram.
  • Page 20 А1 12 V А1 ~100-240 V 6. Install the cover and the front panel back on the fan casing. Connect the power supply to the fan.
  • Page 21: Technical Maintenance

    TECHNICAL MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and make sure electricity has been turned off. • Remove the front panel, wipe the fan with a dry cloth or a brush. •...
  • Page 22: Troubleshooting

    TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line No power supply. is connected correctly, otherwise When the unit is connected to power troubleshoot a connection error. mains, the fan does not rotate and does not respond to any controls. Internal connection fault.
  • Page 23: Manufacturer's Warranty

    MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/ EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 24 • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. • Unit connection to power mains with a voltage different from the one stated in the user's manual. •...
  • Page 25 Arc __________________________________________________________ Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
  • Page 28 V255EN-02...
