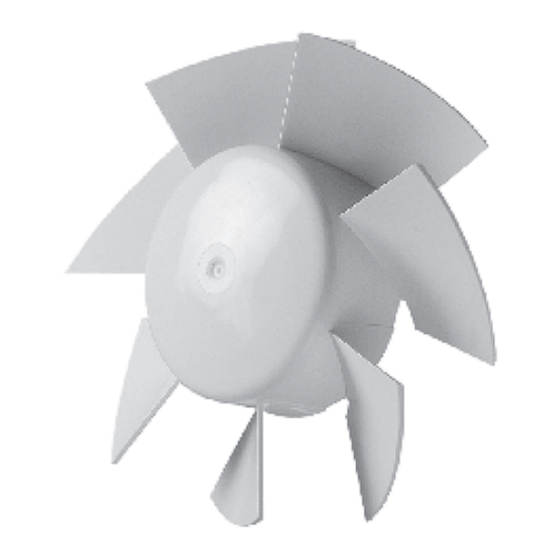

  • Page 1 Electrical fan for domestic use "VV"and "VVR" series MANUAL...
  • Page 3: General Technical Characteristics

    FUNCTIONS GENERAL TECHNICAL CHARACTERISTICS Fans are designed to be used in domestic areas The fans' markings, parameters, overall dimensions and (such as living quarters, offices, shops, garages, structural specifications are given in tables 1 and 2, kitchens, toilets and other quarters, that are and on figure 1.
  • Page 4: Delivery Set

    DELIVERY SET VV 180 Delivery set includes the following: VV 230 - fan - 1 item; VVR 180 - certificate; VVR 230 - package box; figure 1 - screws - 4 items; - dowel - 4 items; - joint - 1 item. SAFETY REQUIREMENTS Electric shock protection of he fans is a class 1.
  • Page 5: Installation

    INSTALLATION Make an opening D1 in a wall or in a glass: for fans VV/VVR 180, D1=185 -188 mm; for fans VV/VVR 230, D1=247 - 250 mm. Install the fan in the opening and secure it with the securing bars (figure 2) or with 4 screws, which fix the fan to the wall by the dowels.
  • Page 6 The air flow direction must be in a direction, that an arrow on the fan case shows. figure 3 For a VV series fan a power source connection В scheme is shown on figure 3. When using a VVR series fan, it is possible to reverse an air flow direction.
  • Page 8: Manufacturer's Warranty

    TECHNICAL SERVICING MANUFACTURER'S WARRANTY The fan should be serviced only when the main Manufacturer hereby guarantees normal performance of the power is off. fan over 60 months since the date of its sale via retail Technical servicing consists of a periodical cleaning of the dust and dirt from the surfaces.
