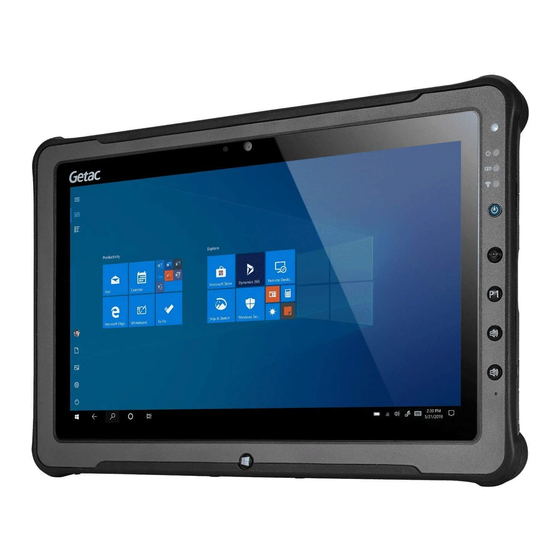

F110 USER MANUAL Rugged Mobile Computing Solutions...
Page 2
All brand and product names are trademarks or registered trademarks of their respective companies. NOTE The information in this manual is subject to change without notice. For the latest version of the manual, please visit the Getac website at www.getac.com.
Table of Contents Chapter 1 Getting Started ..............1 Getting the Tablet PC Running ..........2 Unpacking ................2 Installing the SIM Card (Optional) and Battery Packs ..3 Connecting to AC Power ............5 Using the Tether ..............6 Turning On and Off the Tablet PC ........
Page 4
Advanced Menu ..............50 Security Menu ..............51 Boot Menu ................53 Exit Menu ................53 Chapter 7 Using Getac Software ............ 54 OSD Control Panel ..............55 G-Manager ................56 G-Camera (Optional) ..............57 Chapter 8 Care and Maintenance ........... 58 Protecting the Tablet PC ............
Chapter 1 Getting Started This chapter first tells you step by step how to get the Tablet PC up and running. Then, you will find a section briefly introducing the external components of the Tablet PC.
Getting the Tablet PC Running Unpacking After unpacking the shipping carton, you should find these standard items: F110 Tablet PC AC adapter AC power cord Battery pack x 2 Stylus Tether Document(s) Driver disc (optional) Inspect all the items.
Installing the SIM Card (Optional) and Battery Packs 1. Locate the battery cover. Slide the two small locks outward to the unlocked position ( ) and then release the latch ( ) to open the battery cover. 2. Select models only: With the SIM card’s chip side facing up and the beveled corner pointing to the slot, insert the card all the way into the slot.
Page 9
3. Note the orientation of the battery pack. Hold the battery pack at an angle and insert its small tabs to the corresponding notches in the battery compartment. Then, lift the yellow protection sheet in the battery compartment and plug the battery connector. Battery 1 Battery 2 4.
Connecting to AC Power CAUTION: Use only the AC adapter included with your Tablet PC. Using other AC adapters may damage the Tablet PC. NOTE: The battery pack is shipped to you in power saving mode that protects it from charging/discharging.
Using the Tether A tether is provided for attaching the stylus to your Tablet PC. 1. Insert one of the tether’s loop ends through the hole of the stylus (as indicated by below). Then, insert the other end through the first loop ...
Turning On and Off the Tablet PC Turning On Press the power button ( ). The Windows operating system should start. NOTE: Tapping the screen during startup may invoke a pre-boot menu (unless the default settings have been changed). If the menu appears, simply select Continue.
Taking a Look at the Tablet PC NOTE: Depending on the model you purchased, the appearance of your Tablet PC may not be exactly the same as those shown in this manual. CAUTION: You need to open the protective covers to access the connectors. When not using a connector, make sure to close the cover completely for water- and dust-proof integrity.
Page 14
Component Description Indicators Power Lights blue when the power is on. Blinks blue when the system is in Sleep mode. Battery Lights amber when the battery is being charged. Charge Lights green when battery charging is completed. Blinks green to indicate the battery’s built-in high temperature protection mechanism is activated.
Page 15
Component Description Up/Down increases the sound volume. button decreases the sound volume. Microphone Receives sound and voice to record voice. Touchscreen Displays and receives information for the Tablet PC. Windows Logo Opens or closes the Start menu. button NOTE: The hardware buttons (except the power button) can be re-defined...
Rear Components Component Description Tether hole Stylus can be tethered to this hole. Stylus/ Serves as the input device by tapping on the digitizer pen touchscreen to make selections and enter information.
Page 17
Component Description Battery pack Inside are two battery packs. cover Inside is the SIM card slot (optional). NOTE: The SIM card slot still exists but cannot be used for models without the WWAN module. Camera indicator Lights up when the camera lens beside it is in use. (optional) ...
Left-Side Components Component Description Combo audio Connects a set of headphones or external speakers connector with amplifier. Supports a headset microphone with 4-pole TRRS 3.5mm jack. HDMI connector Connects a HDMI monitor or TV set. USB 3.1 Gen 2 Connects a USB device.
Component Description a None Or can be one of the below components depending on your model: b Serial port Connects a serial device. c RJ45 connector Connects the LAN cable. d USB 2.0 port Connects a USB device. e Barcode reader Scans and reads barcodes.
Chapter 2 Operating Your Tablet PC This chapter provides information about the use of the Tablet PC. If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user, you may choose to read only the parts containing information unique to your Tablet PC.
Navigating on the Screen The screen of your Tablet PC is touch-sensitive. You can control the location of the cursor/pointer on the screen using the included stylus or your finger to communicate with the Tablet PC. CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the touchscreen.
Page 22
The following table shows how you use the touchscreen to obtain equivalent mouse functions. Equivalent Term/Action Mouse Function Tap: Touch the screen once. Click/Point Double-tap: Touch the screen twice rapidly. Double-click Tap and hold: Tap and hold until a popup menu Right-click appears.
Page 23
Actions Gestures Descriptions = finger down; = finger up) Rotate Use rotating to move a picture or other item on the screen in a circular direction (clockwise or counter- clockwise). The gesture Move two fingers in opposing works in applications directions.
Using the Dual Mode Display (Optional) Dual mode display (if your model has the feature) incorporates both touchscreen and digitizer functions. The display is set to Touchscreen mode by default. Touchscreen mode provides all the functionalities that an ordinary touchscreen has. When the Tablet PC receives signals from the digitizer pen, the display automatically switches to Digitizer mode.
Using Network and Wireless Connections Using the LAN (Optional) To connect the network cable to the LAN module (if your model has the feature, connect one end of the LAN cable to the RJ45 connector on the Tablet PC and the other end to the network hub. The location of the connector depends on your model.
Using the WLAN The WLAN (Wireless Local Area Network) module supports IEEE 802.11ac, compatible with 802.11a/b/g/n. Turning On/Off the WLAN Radio To turn on the WLAN radio: Settings Network & Internet Wi-Fi. Slide the Wi-Fi switch to the On position.
Using the BT Feature The BT technology allows short-range wireless communications between devices without requiring a cable connection. Data can be transmitted through walls, pockets and briefcases as long as two devices are within range. Turning On/Off the BT Radio To turn on the BT radio: ...
Using the WWAN Feature (Optional) A WWAN (Wireless Wide Area Network) uses mobile telecommunication cellular network technologies to transfer data. The WWAN module of your Tablet PC supports 3G and 4G LTE. NOTE: Your model only supports data transmission. Voice transmission is not ...
Using the Fingerprint Scanner (Optional) WARNING: We shall not be liable for any loss or damage whatsoever resulting from your use of the fingerprint scanner or neglect of fingerprint scanner use, or any data loss resulting from such developments as fingerprint authentication malfunctioning.
Page 30
To enroll your fingerprint: 1. Tap Settings Accounts Sign-in options. 2. On the right side under Fingerprint, tap Set up. 3. Follow the onscreen instructions to complete.
Using the Barcode Reader (Optional) NOTE: For enhanced applications and customization of the module, contact your authorized Getac dealer. If your model has the barcode reader module, you can read barcodes of the following types: Code 39 Code 128 ...
Trigger button NOTE: Improper ambient light and scanning angle can affect the scanning results. CAUTION: When or immediately after using the barcode scanner for a long time, do not touch the lens area as the area might be hot. 3. Upon a successful scan, the system beeps and the scan light turns off. The decoded barcode data will be entered into your processing software.
Chapter 3 Managing Power Your Tablet PC operates either on external AC power or on internal battery power. This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.
AC Adapter CAUTION: The AC adapter is designed for use with your Tablet PC only. Connecting the AC adapter to another device can damage the adapter. The AC power cord supplied with your Tablet PC is for use in the country ...
Battery Pack Your Tablet PC has two battery packs. The battery pack is the internal power source for the Tablet PC. It is rechargeable using the AC adapter. CAUTION: Always keep both battery packs installed, especially when the Tablet PC is running on battery power. A battery pack can be removed only when it is not being charged/discharged or if you are hot-swapping the battery pack.
CAUTION: After the Tablet PC has been fully recharged, do not immediately disconnect and reconnect the AC adapter to charge it again. Doing so may damage the battery. Initializing the Battery Pack You need to initialize a new battery pack before using it for the first time or when the actual operating time of a battery pack is much less than expected.
Push-button Battery Low Signals and Actions The battery icon changes appearance to display the current state of the battery. Battery Icon Battery Level Description Discharging The icon shows the charge remaining in 10- percent increments until the charge reaches the low-battery level. The battery charge has reached the low- battery level.
Replacing the Battery Pack CAUTION: There is danger of explosion if the battery is incorrectly replaced. Replace the battery only with the Tablet PC manufacturer’s battery packs. Discard used batteries according to the dealer’s instructions. Do not attempt to disassemble the battery pack. ...
Page 39
3. Pull the ribbon strip to lift the battery pack off the compartment. 4. Fit another battery pack into place. Note the orientation of the battery pack. Hold the battery pack at an angle and insert its small tabs to the corresponding notches in the battery compartment.
Power-Saving Tips Aside from enabling your Tablet PC’s power saving mode, you can do your part to maximize the battery’s operating time by following these suggestions. Do not disable Power Management. Decrease the LCD brightness to the lowest comfortable level. ...
22 - non-conductive dust). All covers must be correctly installed in potentially explosive atmospheres. The battery cover must be secured to F110-Ex with three screws (as indicated below). You can only replace the battery outside the Ex-hazardous area. The bottom I/O cover must be secured to F110-Ex with two screws. While not in an Ex-hazardous area, you can remove this cover in order to access any connector behind it.
Chapter 5 Expanding Your Tablet PC You can expand the capabilities of your Tablet PC by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter.
Connecting a USB Device Your Tablet PC has a USB 3.1 Gen 2 port for connecting USB devices, such as a digital camera, scanner, printer, and mouse. USB 3.1 Gen 2 supports a transfer rate up to 10 Gbit/s. To unlock the left-side cover: Select models have a second USB port, which supports USB 2.0 (transfer rate is 480 MB/s).
Connecting an Audio Device The audio combo connector is the “4-pole TRRS 3.5mm” type so you can connect a compatible headset microphone. To unlock the left-side cover: SAFETY WARNING: To prevent possible hearing damage, do not listen at high volume levels for long periods.
Connecting an HDMI Display Monitor If you want the benefits of a larger display screen with higher resolution, you can connect an external display monitor to your Tablet PC. Your Tablet PC has an HDMI connector. HDMI (High-Definition Multimedia Interface) is an audio/video interface that transmits uncompressed digital data and therefore delivers true HD quality.
Connecting a Serial Device (Optional) If your model has the RS-232 serial port, you can connect a serial device such as a serial mouse or serial communication device.
Using Smart Cards (Optional) If your model has the smart card reader, you can use smart cards. With an embedded microcontroller, smart cards have the unique ability to store large amounts of data, carry out their own on-card functions (e.g., encryption and mutual authentication), and interact intelligently with a smart card reader.
antenna area. For enhanced applications and customization of the module, contact your authorized Getac dealer. The NFC reader requires specialized applications. For further information, ask your system administrator. The tablet models with this option do not comply with ENERGY STAR ®...
Replacing the SSD (Optional) 1. Turn off the Tablet PC and disconnect the AC adapter. 2. Remove the battery packs. 3. To open the SSD access door, push the two locks inwards to the unlocked position (), slide the door downwards (), and then lift the door open. 4.
Page 51
5. Plug the new SSD into place and secure it with the screw. 6. Close the SSD door. Make sure the locks are engaged. 7. Replace the battery packs.
Chapter 6 Using BIOS Setup BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the computer. BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand.
When and How to Use NOTE: The actual setting items on your model may differ from those described in this chapter. The availability of some setting items depends on the Windows version your computer is running. You need to run BIOS Setup Utility when: You see an error message on the screen requesting you to run BIOS ...
Menu Descriptions Information Menu The Information menu contains the basic configuration information of the system. There are no user-definable items in this menu. NOTE: The “Asset Tag” information appears when you have entered the asset number for this Tablet PC using the asset management program. The program is provided in the Asset tag folder of the Driver disc.
Advanced Menu The Advanced menu contains the advanced settings. Wake Up Capability USB Wake Up From S3 allows a USB device activity to wake up the system from S3 (Sleep) state. System Policy allows you to choose between Performance and Balance. ...
technology for increasing the security of application code. It is used by application developers. Device Configuration enables or disables several hardware components. The items available for setting depend on your model. Diagnostics and System Tester H2ODST Tool performs system baseline check. Recovery Partition allows you to restore your Windows 10 system to the ...
Page 57
Set Supervisor/User Password sets the supervisor/user password. You can set the supervisor/user password to be required for starting up the system and/or entering BIOS Setup. Strong Password enables or disables strong password. When enabled, the password you set must contain at least one upper-case letter, one lower-case letter, and one digit.
Boot Menu The Boot menu sets the sequence of the devices to be searched for the operating system. Boot Type Order determines the boot order. You can rearrange the order by dragging the boot device name up or down in the list. Each boot device can be individually set to On or Off.
Chapter 7 Using Getac Software Getac software includes application programs for specific computer components and utility programs for overall management. This chapter briefly introduces the programs.
OSD Control Panel The OSD (On Screen Display) Control Panel provides a user-friendly interface for you to quickly activate or operate certain functions on your Tablet PC with a simple tap of the screen. To open the OSD Control Panel, start the program named OSDC. The following screen appears.
G-Manager G-Manager allows you to view, manage, and configure several system functions and features. The G-Manager home menu presents four categories. Select a category name to open it. For detailed information, see the program’s online help. Select About Help.
G-Camera (Optional) G-Camera is a geo-tagging camera application. Geographical information can be embedded into JPEG files as EXIF 2.2 metadata. NOTE: G-Camera uses the standard location service of Windows. To start the G-Camera application, select G-Camera. In the middle is the preview window with status display. At the two sides are various buttons.
Chapter 8 Care and Maintenance Taking good care of your Tablet PC will ensure a trouble-free operation and reduce the risk of damage to your Tablet PC. This chapter gives you guidelines covering areas such as protecting, storing, cleaning, and traveling.
Protecting the Tablet PC To safeguard the integrity of your Tablet PC data as well as the Tablet PC itself, you can protect the Tablet PC in several ways as described in this section. Using an Anti-Virus Strategy You can install a virus-detecting program to monitor potential viruses that could damage your files.
Taking Care of the Tablet PC Location Guidelines For optimal performance, use the Tablet PC where the recommended temperature is between 0 °C (32 °F) and 55 °C (131 °F). (Actual operating temperature depends on product specifications.) Avoid placing the Tablet PC in a location subject to high humidity, ...
LCD image sticking occurs when a fixed pattern is displayed on the screen for a prolonged period of time. You can avoid the problem by limiting the amount of static content on the display. It is recommended that you use a screen saver or turn off the display when it is not in use. To maximize the life of the backlight in the display, allow the backlight ...
vehicle and in hot weather condition. Also, charging will not start if the battery pack is not within the allowed temperature range. It is recommended that you do not charge the battery pack more than once a day. It is recommended that you charge the battery pack with the Tablet PC’s ...
Page 68
Use a soft cloth to remove dirt on the display. The touchscreen surface has a special protective coating that prevents dirt from sticking to it. Not using a soft cloth may cause damage to the special protective coating on the touchscreen surface.
When Traveling Before traveling with your Tablet PC, make a backup of your hard disk data into flash disks or other storage devices. As an added precaution, bring along an extra copy of your important data. Make sure that the battery pack is fully charged. ...
Chapter 9 Troubleshooting Computer problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved. This chapter tells you what actions to take when solving common computer problems.
Preliminary Checklist Here are helpful hints to follow before you take further actions when you encounter any problem: Try to isolate which part of the Tablet PC is causing the problem. Make sure that you turn on all peripheral devices before turning on the ...
Solving Common Problems Battery Problems The battery does not charge (Battery Charge indicator does not light amber). Make sure that the AC adapter is properly connected. Make sure that the battery is not too hot or cold. Allow time for the ...
Display Problems Nothing appears on the screen. During operation, the screen may automatically turn off as a result of power management. Press any key to see if the screen comes back. The brightness level might be too low. Increase the brightness. ...
Power Management Problems The Tablet PC does not enter Sleep or Hibernation mode automatically. If you have a connection to another computer, the Tablet PC does not enter Sleep or Hibernation mode if the connection is actively in use. Make sure that the Sleep or Hibernation time-out is enabled.
If using an external speaker, make sure that the speaker is properly connected. Distorted sound is produced. Make sure that the volume control is not set too high or too low. In most cases, a high setting can cause the audio electronics to distort the sound. Startup Problems When you turn on the Tablet PC, it does not respond and the Power Indicator does not light up.
Page 76
Plug your Tablet PC into an outlet on a different branch circuit from that used by the affecting device. Consult your dealer or an experienced radio technician for help. I cannot connect to another WLAN device. Make sure that the WLAN feature is turned on. ...
Other Problems The date/time is incorrect. Correct the date and time via the operating system or BIOS Setup program. After you have performed everything as described above and still have the incorrect date and time every time you turn on the Tablet PC, the RTC (Real-Time Clock) battery is at the end of its life.
Resetting the Tablet PC You may have to reset (reboot) your Tablet PC on some occasions when an error occurs and the program you are using hangs up. If you are sure the operation has stopped and you cannot use the “restart” function of the operating system, reset the Tablet PC.
System Recovery Using Windows RE Windows 10 has a recovery environment (Windows RE) that provides recovery, repair, and troubleshooting tools. The tools are referred to as Advanced Startup Options. You can access these options by selecting Settings Update & security. There are several choices: System Restore ...
Using Recovery Partition When necessary, you can restore your Windows 10 system to the factory default state by using the “recovery partition” feature. Recovery partition is a portion of your hard disk drive that is set aside by the manufacturer to hold the original image of your system.
Using the Driver Disc (Optional) NOTE: You can download the latest drivers and utilities from Getac website http://www.getac.com Support. The Driver disc contains drivers and utilities required for specific hardware in your Tablet PC. Since your Tablet PC comes with drivers and utilities pre-installed, you normally do not need to use the Driver disc.
Appendix A Specifications NOTE: Specifications are subject to change without any prior notice. Parts Specifications Whiskey Lake U Platform - Intel® Core™ i5-8265U, 1.6GHz up to 3.9GHz, 6M cache - Intel® Core™ i5-8365U, 1.6GHz up to 4.1GHz, 6M cache - Intel® Core™ i7-8565U, 1.8GHz up to 4.6GHz, 8M cache - Intel®...
Page 83
Parts Specifications Wireless LAN + BT Intel® Wireless-AC 9260, 802.11 AC + BT 5.0 combo (vPro) GPS (option) UART Optional discrete GPS WWAN (option) 3G/4G LTE Camera (option) Front: FHD, IR sensor (option) Rear: 8M pixel, autofocus, LED, video capture Security Kensington lock TPM 2.0...
Appendix B Regulatory Information This appendix provides regulatory statements and safety notices on your Tablet PC. NOTE: Marking labels located on the exterior of your Tablet PC indicate the regulations that your model complies with. Please check the marking labels and refer to the corresponding statements in this appendix.
Please note: The use of a non-shielded interface cable with this equipment is prohibited. Company name: Getac USA Address: 15495 Sand Canyon Rd., Suite 350 Irvine, CA 92618 USA Phone: 949-681-2900...
Canada Canadian Department of Communications Radio Interference Regulations Class B Compliance Notice This Class B digital apparatus meets all requirements of the Canada Interference-Causing equipment regulations. Cet appareil numérique de Classe B respecte toutes les exigences du Règlement Canadien sur le matériel brouileur. This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
Safety Notices About the Battery If the battery is mishandled, it may cause fire, smoke or an explosion and the battery’s functionality will be seriously damaged. The safety instructions listed below must be followed. Danger Do not immerse the battery with liquid such as water, sea water or soda. ...
Page 88
In case of a leaking battery, keep the battery away from flames and do not touch it. Pack the battery tightly during transport. Caution Do not use the battery where static electricity (more than 100V) exists that might damage the protection circuit of the battery. When children are using the system, parents or adults must ensure that ...
Page 89
manufacturer. Discard used batteries according to manufacturer’s instructions. DEUTSCH VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch denselben oder einen vom Hersteller empfohlenen gleich- wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers. FRENCH ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Page 90
Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture. Heat Related Concerns Your device may become very warm during normal use. It complies with the user-accessible surface temperature limits defined by the International Standards for Safety.
On the Use of the RF Device USA and Canada Safety Requirements and Notices IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radio Frequency Interference Requirements and SAR This device meets the government’s requirements for exposure to radio waves.
Page 92
If harmful interference with radio or television reception occurs when the device is turned on, the user must correct the situation at the user’s own expense. The user is encouraged to try one or more of the following corrective measures: Reorient or relocate the receiving antenna.
The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.
Page 94
Greek To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας 2014/53/EU. Icelandic Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 2014/53/EU. Italian Questo prodotto è conforme alla Direttiva Europea 2014/53/EU. Norwegian Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 2014/53/EU.
Page 95
Waste Electrical and Electronic Equipment (WEEE) This symbol means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Proper recycling of your product will protect human health and the environment.
Getac-brand products for free. Getac understands the institutional customers will likely be recycling multiple items at once and as such. Getac wants to make the recycling process for these larger shipments as streamlined as possible. Getac works with recycling vendors with the highest standards for protecting our environment, ensuring worker safety, and complying with global environmental laws.
® Please reference ENERGY STAR related information from http://www.energystar.gov. As an ENERGY STAR® Partner, Getac Technology Corporation has determined ® that this product meets the ENERGY STAR guidelines for energy efficiency. An ENERGY STAR ®...
Page 98
By using less energy, these products help lower consumers’ utility bills, and prevent greenhouse gas emissions. Getac Product Compliance All Getac products with ENERGY STAR ® logo comply with the ENERGY STAR ®...
Battery Recycling For the U.S. and Canada only: To recycle the battery, please go to the RBRC Call2Recycle website or use the Call2Recycle Helpline at 800-822-8837. Call2Recycle® is a product stewardship program providing no-cost battery and cellphone recycling solutions across the U.S. and Canada. Operated by Call2Recycle, Inc., a 501(c)4 nonprofit public service organization, the program is funded by battery and product manufacturers committed to responsible recycling.
California Proposition 65 For California USA: Proposition 65, a California law, requires warnings to be provided to California consumers when they might be exposed to chemical(s) identified by Proposition 65 as causing cancer and birth defects or other reproductive harm. Almost all electronic products contain 1 or more of the chemicals listed under Proposition 65.
Enclosure Replacement Battery The batteries of your product include two battery packs and a button cell (or called RTC battery). All batteries are available from Getac authorized service centers. The battery pack is user-replaceable. Replacement instructions can be found in “Replacing the Battery Pack” in Chapter 3.
