Getac F110 Manual

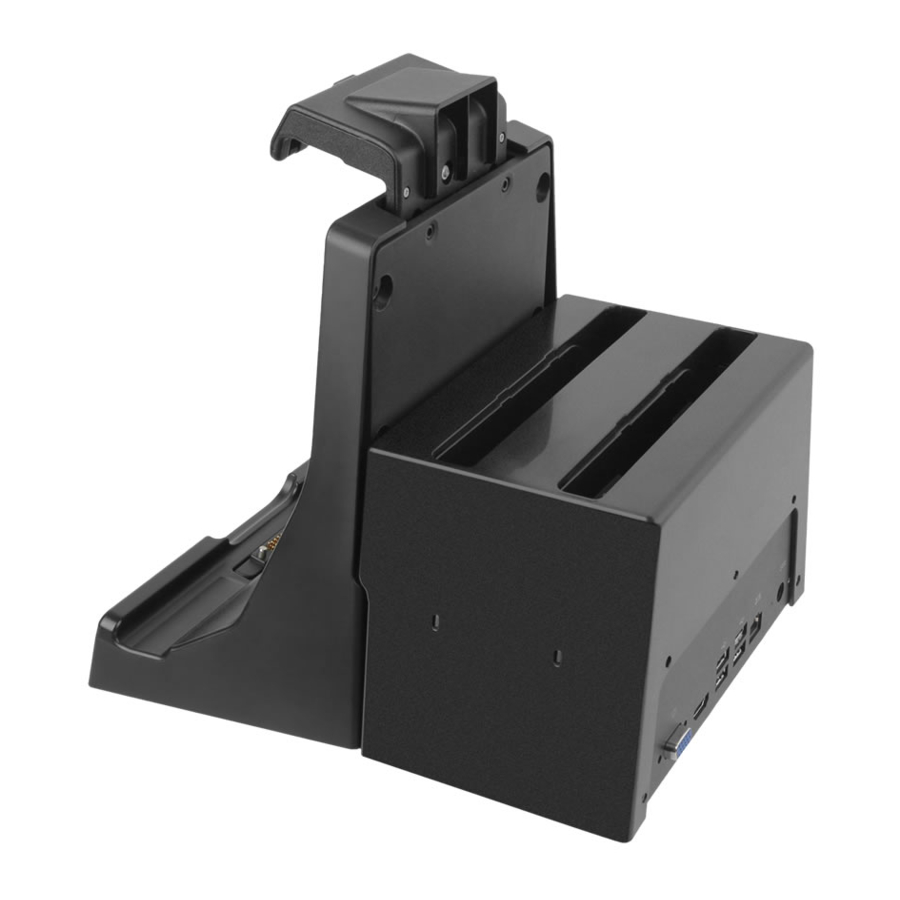

Identifying Components

No.	Component
	Release latch
	Holding clamp
	Docking connector
	DC-In LED
	Battery pack slot
	VGA port
	USB 3.0 port
	USB 2.0 port
	RJ45 port
	Power connector

Installation

1. Push the release latch toward the right. The holding clamp will slide up slowly.

2. Place F110 on the dock. Press down the holding clamp until it clicks into place.

3. Connect the AC adapter as shown below.
   The DC-In LED lights up, indicating power is connected.


Charging Battery Packs

Align the battery pack's connector with the battery bay's connector and insert the battery pack into the bay.

While inserting the battery pack, keep the ribbon strip in a flipped up position. If left unattended, a squeezed strip inside the battery slot can result in poor battery connector contact.

When a battery pack is inserted and the office dock is connected to power, the Charge indicator at the side of the office dock shows the charging status of the battery pack.

• lights amber when the battery is being charged.
• lights green when battery charging is completed.
• blinks amber when the battery charging is in an abnormal state.

All battery packs, including the one(s) in the charger and the ones inside F110 (when docked), will be charged in parallel.

When inserting or removing the battery pack, be sure to do it in a straight up or down manner. Never insert or remove the battery pack in a slanted way because this can damage the connector pins.

Safety Instructions

• Use only the Getac battery pack model BP3S1P2160-S / BP3S2P2160-S in the charger.
• Do not insert any foreign object in any I/O port.
• Do not touch the connectors of the office dock.
• Do not attempt to make connections if there is any object between the computer and the office dock. Doing so could damage the computer and the office dock.
• Do not attempt to move the office dock when it is connected to the computer.
• If the computer malfunctions while the office dock is connected, turn off the computer and disconnect the office dock. Connect the AC adapter to the computer and check to see if the computer operates normally. If the computer operates normally, the office dock may be malfunctioning.
•
  Do not place metal objects or containers of liquid on top of the office dock. If metal objects (such as paper clips and coins) or any liquid spills get inside the office dock, fire or electric shock may result. Immediately unplug the power cable and remove the computer from the office dock.
• Unplug the power cord and remove the computer from the office dock if any of the following occurs:
  • the office dock is damaged
  • smoke is emitted
  • an unusual smell is emitted
  • the office dock is unusually hot

Continuing to use the office dock while any of the above conditions are present may result in fire or electric shock.

• If a ground/earth pin attachment plug on the AC power cord is provided, always plug the cord into a grounded/earthed outlet. Do not disable ground/earth pin of the plug/cord.
• Do not place the product on an unsteady surface.
• Avoid exposing the product to water or an electric shock may occur.
• The charger will stop charging when input voltage from the AC power line is unstable.
• Disconnect the power cord from the charger when not in use. When the charger is connected with AC power, it is still in standby mode even if the battery is fully charged.

Manufacturer
Getac Technology Corporation
5F., Building A, No. 209, Sec.1, Nangang Road
Nangang Dist., Taipei City 11568
Taiwan
