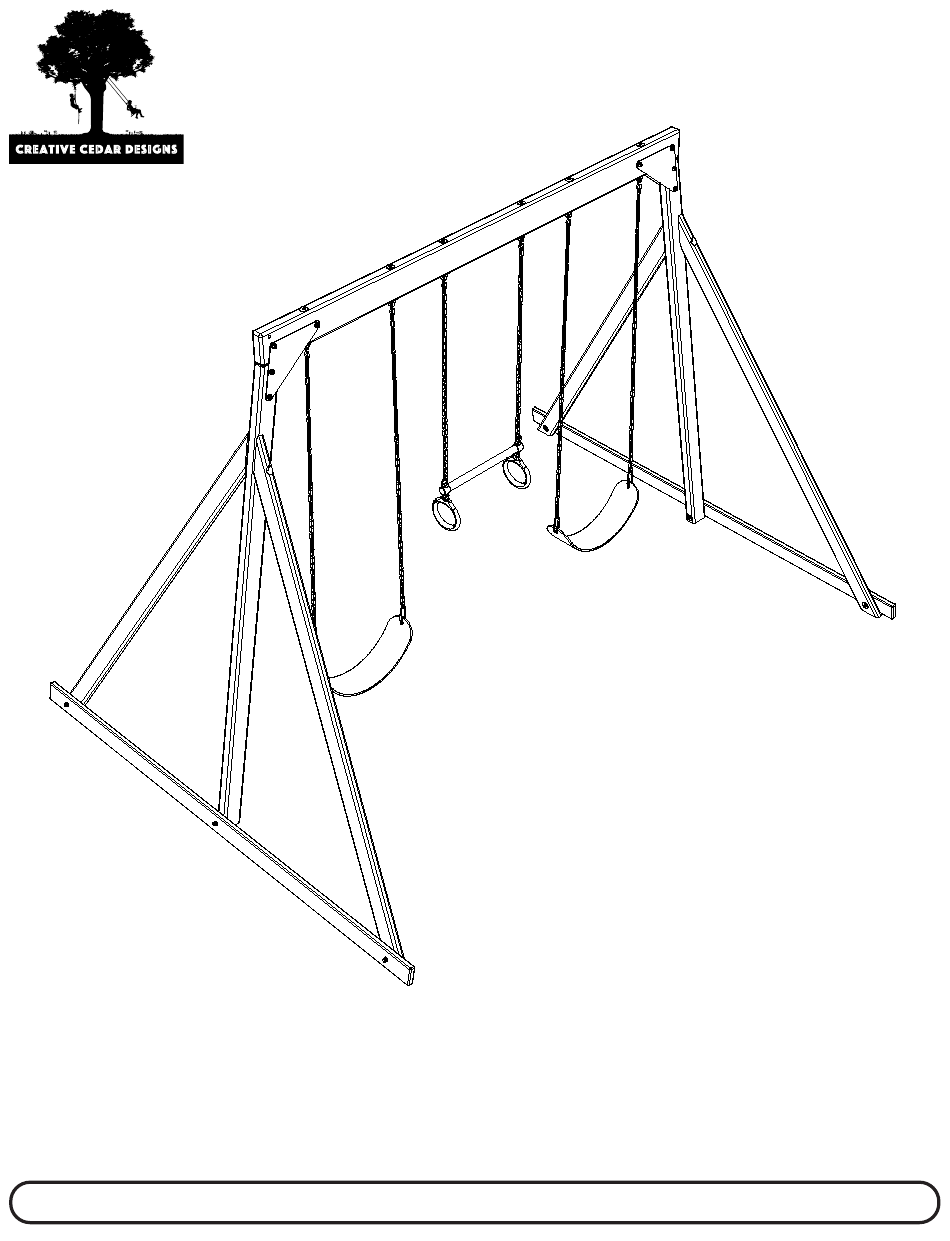

Trailside
3800
ASSEMBLY INSTRUCTIONS
Creative Cedar Designs • PO Box 4901 • Chattanooga, TN 37405
Visit our web site at: www.Creativecedardesigns.com or call us at 888-363-4967
© Creative Cedar Designs 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the Trailside 3800 and is the answer not in the manual?

Questions and answers

Related Manuals for Creative Cedar Designs Trailside 3800

Summary of Contents for Creative Cedar Designs Trailside 3800

  • Page 1 Trailside 3800 ASSEMBLY INSTRUCTIONS Creative Cedar Designs • PO Box 4901 • Chattanooga, TN 37405 Visit our web site at: www.Creativecedardesigns.com or call us at 888-363-4967 © Creative Cedar Designs 2020...
  • Page 2 ATTENTION: READ THIS BEFORE USE OF YOUR PLAYSET OR ACCESSORY: Observing the following statements and warnings reduces the likelihood of serious or fatal injury. This product has been designed for single family home/residential use only and is not intended for use in any public setting. Placement in public settings constitutes misuse of this product. Play Safe Installation Checklist: →...
  • Page 3 LIMITED WARRANTY Creative Cedar Design (CCD) off ers many fun, interactive, and safe play sets. We only guarantee the original purchaser that this product is free of defects for 30 days from the date of purchase. The product registration card, along with a dated purchase receipt, must be returned to CCD within 30 days. Within a 30-day period, CCD will repair or replace, at our option, defective merchandise free of charge, provided that the defective part is a manufacturer’s defect and not seasonal check.
  • Page 4 DIMENSIONS MINIMUM USE ZONE FOR PLAY EQUIPMENT SHALL EXTEND NO LESS THAN 72” FROM ALL SIDES OF THE PLAY STRUCTURE. SWING USE ZONE EXTENDS NO LESS THAN 158” SWINGS MUST HAVE A MINIMUM OF 8” ABOVE THE PROTECTIVE SURFACING.

  • Page 5: Tools Required

    TOOLS REQUIRED DRILL 1/2” SOCKET & HAMMER ADJUSTABLE TAPE MEASURE WRENCH WRENCH PHILLIPS BIT TORX T-20 BIT CARPENTER SAFETY GLASSES SQUARE INCLUDED HARDWARE...

  • Page 6: Board List

    BOARD LIST INCLUDED COMPONENTS (1) 6 Count Std Swing (4) A-Frame Bracket (2) Standard Swing Seat (1) Ring/Trap Combo Hanger M100 BP 010-G BP 009-Y w/ Hardware BP 002 CreativeCedarDesigns.com (1) 4pk Anchor Kit (1) ID Tag (1) Plan BP 001-B w/ Hardware w/ Hardware...
  • Page 7 STEP 1 Swing Beam Assembly 5/16-18 T-Nut (x6) WS135 SWING BEAM TIP: Slide a screwdriver thru the Hanger hook to help tighten it into the T-Nut 1-1/4” Deck Screw (x24) 1. Attach Swing Hangers to swing beam as shown. Note plate & swing hanger must be tight against bottom of swing beam prior to step 5.

  • Page 8: A-Frame Assembly

    STEP 2 A-Frame Assembly WQ137 SWING BEAM A-FRAME WQ136 SWING BEAM SUPPORT WQ137 SWING BEAM A-FRAME WD138 SWING BEAM BASE 5/16 Washer (x10) 5/16-18 x 2-1/2” Hex Bolt (x4) 5/16-18 x 3” Lag Screw (x4) 5/16-18 x 4-1/2” Hex Bolt (x2) 5/16 Lock Washer (x6) 5/16-18 T-Nut (x6) 1.
  • Page 9 STEP 3 (4) M100 A-FRAME BRACKET 5/16-18 x 2-3/4” Hex Bolt (x4) 5/16 Washer (x8) 5/16-18 Lock Nut (x4) 1. Attach A-Frame brackets as shown.

  • Page 10: Swing Beam Assembly

    STEP 4 Swing Beam Assembly A-Frame Assembly 5/16-18 x 2-3/4” Hex Bolt (x2) 5/16 Washer (x4) 5/16-18 Lock Nut (x2) 1. Attach Swing Beam assembly to A-Frame assembly as shown.
  • Page 11 STEP 5 Swing Beam Assembly A-Frame Assembly 5/16-18 x 2-3/4” Hex Bolt (x2) 5/16 Washer (x4) 5/16-18 Lock Nut (x2) 1. Assemble two Roof Panel(s) as shown. NOTE screw thru the shingle from the top into the support.
  • Page 12 STEP 6 Standard Swing Seats NOTE: Swing Hanger must be crimped close. 1. Assemble Standard Swing Seat(s) per accessory plan and mount to swing hangers as shown.
  • Page 13 STEP 7 Ring-Trap NOTE: Swing Hanger must be crimped close. 1. Assemble Ring-Trap per accessory plan and mount to swing hangers as shown.
  • Page 14 STEP 8 5/16” Washer Fold up 1-1/2” Lag Anchor-It Screw Strap Anchor-It 1. Place swing set in fi nal location and mount Anchor(s) at locations circled above. 2. Twist the Anchor into the ground until only the loop is exposed. 3.
  • Page 15 STEP 9 CreativeCedarDesigns.com 3/4” Pan Screw (x2) 1. Attach ID Tag as shown.
  • Page 16 Call our Customer Support Representatives Available Monday - Friday, 9am - 4pm (EST) Technical Support from experienced Customer Service Representatives who have actually built a swing set themselves. Visit our web site at: www.Creativecedardesigns.com © Creative Cedar Designs 2020 12.1.2020...
