Summary of Contents for Creative Cedar Designs SEQUOIA 3200

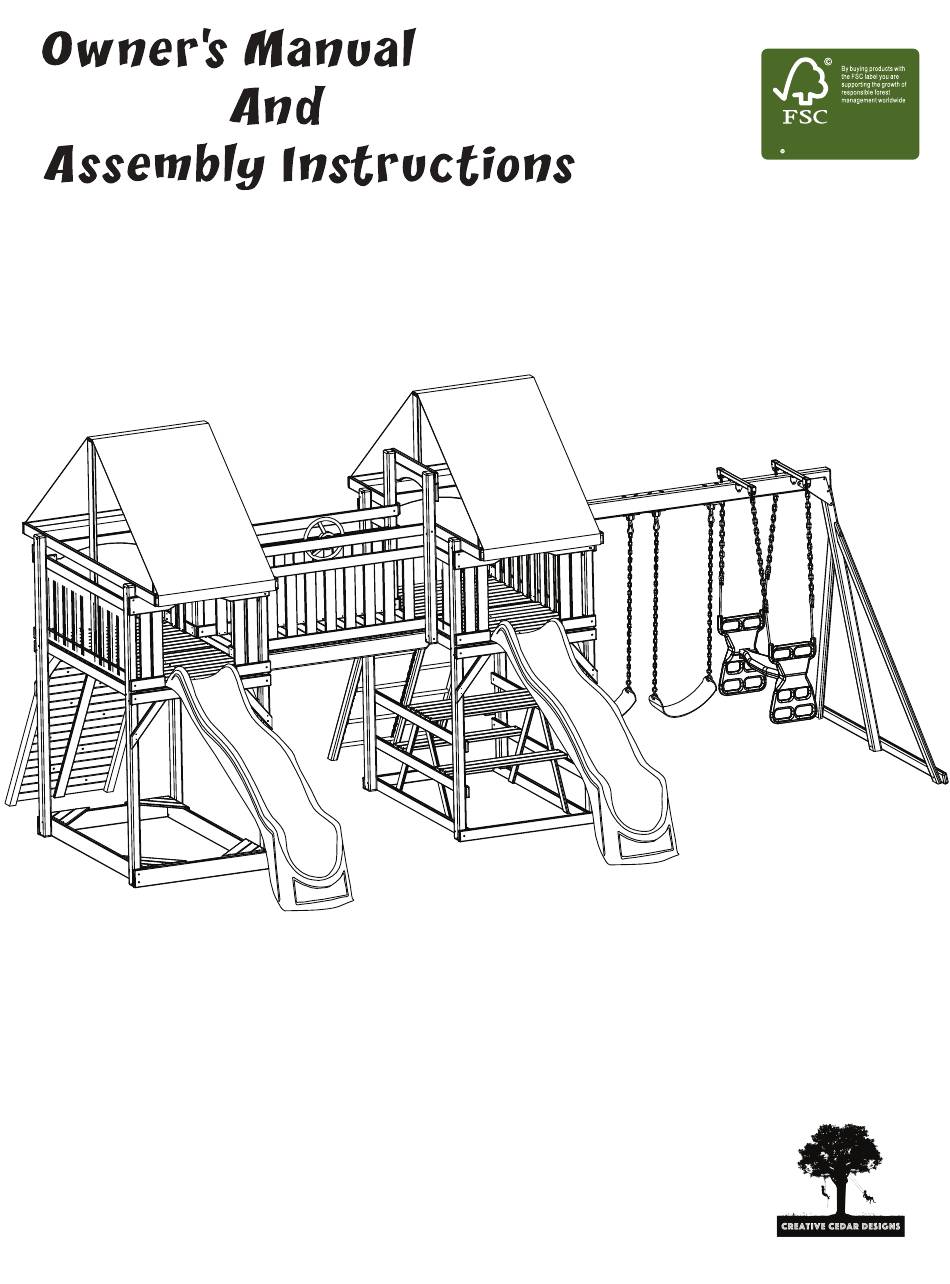

  • Page 1 For FSC certified products look for the FSC label SGS-COC-005310 1996 Forest Stewardship Council A.C. SEQUOIA Model: 3200...

  • Page 2: Table Of Contents

    Thank you for purchasing a Creative Cedar Designs Playcenter. We hope it will bring you and your children many years of safe and enjoyable backyard fun. Table of Contents Letter to Customer Positioning Your Playcenter Tools Required for Assembly Helpful Installation Hints...
  • Page 3 STOP…PLEASE READ!! IF YOU HAVE ANY QUESTION OR ARE MISSING A PART, PLEASE DO NOT CONTACT THE RETAILER THAT YOU PURCHASED THIS PRODUCT FROM. PLEASE VISIT www.creativecedardesigns.com OR CONTACT US DIRECTLY AT OUR OFFICE, 1-888-363-4967 WE WILL ANSWER YOUR QUESTIONS, OR HELP WITH WHAT YOU NEED. For more efficient service, please log onto our website at www.creativecedardesigns.com...
  • Page 4 Creative Cedar Designs equipment is recommended for use by children 3 to 10 years of age. Creative Cedar Designs structures are not intended for public use. Creative Cedar Designs does not warranty any of its residential structures subjected to commercial use.

  • Page 5: Positioning Your Playcenter

    The instructions and owner’s manual for your new Playcenter should be read in its entirety before assembly, to minimize problems and safety issues. We recommend reading the owner’s manual thoroughly after you have identified all of the parts for your Playcenter as discussed in the Helpful Installations Hints section below.

  • Page 6: Helpful Installation Hints

    Helpful Installation Hints 1. Depending on your experience, assembly of this Play set should take approximatley 6 to 12 hours after inventory of parts. 2. Identify all of the parts for your Playcenter. Empty each box and lay out boards so you can see each part.

  • Page 7: Suggested Playground Surfacing

    Suggested Playground Surfacing Playground equipment should never be placed on hard surfaces such as concrete or asphalt. Do not install loose fill surfacing over hard surfaces such as concrete or asphalt. Shredded bark mulch, wood chips, fine sand and fine gravel, are added as shock absorbing materials after assembly.

  • Page 8: Operating Instructions

    Operating Instructions: NOTE: Your children’s safety is our #1 concern. Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Please review these safety rules regularly with your children. 1. This Playcenter is designed for the use of 6 occupants, per tower, who have a combined weight not exceeding 420 pounds, per tower, 4 occupants on the bride, who have a combined weight of 280 pounds, 4 occupants on the swing area, who have a combined weight of 350 pounds, for a total unit capacity of 20 occupents who have a combined total wieght of 1,470 pounds.

  • Page 9: Maintenance Instructions

    Ropes, cables and chains should be removed and replaced if excessive wear is found. Contact Creative Cedar Designs for replacement parts. 6. For rusted areas on metallic members such as monkey bars, hand supports, brackets, etc., sand and repaint, using a non lead-based paint meeting the requirements of Title 16 CRF Part 1303.
  • Page 10 APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material Also see the following website for additional information: https://www.cpsc.gov/PageFiles/122146/324.pdf X3. CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS X3.1 The U.S.

  • Page 11: Assembly Instructions

    The Sequoia Assembly Instructions WARNING: CHOKING HAZARD Unassembled parts may be a choking hazard to children 3 years and younger CAUTION: Adult Assembly Required. Hardware contains small pieces with sharp points. Keep parts out of the reach of children until assembled. Parts of this product can present dangers i mproperly assembled.
  • Page 12 Basic Setup Dimensions Place the set on level ground, not less than 6ft (1.83M) from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines or electrical wires. SAFETY AREA SAFE HEIGHT Ht. = 16'-7" [5M] Ht.
  • Page 13 Parts Identification Wood Components (2) 1 X 5 5/16 X 65 SAND BOX BOARD - LK212 (1) 3 5/16 X 5 5/16 X 89 1/2 SWING BEAM - LA251 (2) 3 5/16 X 2 11/16 X 90 1/2 UPRIGHT - LD201 (2) 1 X 5 5/16 X 44 3/4 SAND BOX BOARD - LK223 (2) 3 5/16 X 2 11/16 X 90 1/2 UPRIGHT - LD202 (2) 1 X 5 5/16 X 44 3/4 SLIDE ARCH RAIL - LK224...
  • Page 14 Parts Identification Wood Components (4) 1 X 3 1/2 X 11 WALL RAIL - LM226 (5) 11/16 X 3 1/2 X 31 1/2 ROCK BRD.- LR264 (4) 1 X 3 1/2 X 7 WALL RAIL - LM227 (1) 11/16 X 3 1/2 X 66 1/4 ROCK WALL BRACE - LR265 (2) 1 X 3 1/2 X 66 15/16 TARP UPRIGHT - LM230 (1) 5/8 X 3 5/16 X 15 3/4 LADDER SAFETY SLAT - LR274 (1) 5/8 X 3 5/16 X 21 1/4 CHAIN LADDER SAFETY SLAT - LR275...
  • Page 15 Parts Identification Accessories (1 PAIR) GLIDER BRACKET (2) CLIMBING ROCK 4-PACK CreativeCedarDesigns.com (1) ID-TAG BP 020 BP011-GYBR w/ HARDWARE w/ HARDWARE w/ HARDWARE (2) GREEN ANGLE BRACKET (8) GREEN L-BRACKET (16) GREEN L-BRACKET (SMALL) M005 M003 M002 (2) TARP (GREEN) (1) GREEN CHAIN LADDER (4) SWING HANGER M010...
  • Page 16 Hardware Identification 5/16" x 4 3/4" Hex Bolts 5/16HB43/4 1/4" 5/16" x 4 1/4" Hex Bolts 5/16HB41/4 1/2" 3/4" 1" 5/16" x 4" Hex Bolts 5/16HB4 (10) 5/16" x 3 5/8" Hex Bolts 5/16HB33/4 2" (64) 5/16" x 2 3/4" Hex Bolts 5/16HB23/4 3"...
  • Page 17 Hardware Identification 2 1/2" Deck Screws #8DS2 1/2 (110) 5/16" Lock Nuts 5/16" T-nuts LN5/16 1 3/4" Deck Screws 5/16TN #8DS13/4 (12) (452) 11/8" Deck Screws #8DS11/8 (274) 5/16" Split Washers 5/16SW 1” Truss Head Screw (106) (16) Fender Washer 5/16FW8X27 5/16"...
  • Page 18 Quick Overview of Parts...
  • Page 19 Quick Overview of Parts...
  • Page 20 Phase Hardware Fender Washer TOWER 'A' ASSEMBLY Phase 1: 5/16" Split Washers 5/16" x 3 5/8" Hex Bolts (16) (16) (24) 2 1/2" Lag Screws 5/16" T-nuts (22) Phase Parts (2) 3 5/16 X 2 11/16 X 90 1/2 UPRIGHT - LD201 (3)1 X 3 X 65 GB / FLOOR JOIST - LM210 Note: It is vital that the fort...
  • Page 21 Phase Hardware Fender Washer TOWER 'B' ASSEMBLY Phase 2: 5/16" x 3 5/8" Hex Bolts 5/16" Split Washers (16) (16) ( 28 ) 2 1/2" Lag Screws 5/16" T-nuts (12) (16) Phase Parts (1 ) X 3 X 65 GB / FLOOR JOIST - LM210 (4) 3 5/16 X 2 11/16 X 90 1/2 UPRIGHT - LD203 (2) X 5 X 65 SANDBOX BOARD - LK212...
  • Page 22 BRIDGE UPRIGHTS Phase Hardware Phase 3: Fender Washer & CROSS BRACES 5/16" x 3 5/8" Hex Bolts 5/16" Split Washers (32) (32) (32) 5/16" T-nuts (32) USE A STEP LADDER FOR SAFETY! Phase Parts (4) 3 5/16 X 2 11/16 X 51 5/16 BRIDGE UPRIGHT - LD280 (4) 1 X 3 1/2 X 33 3/16 TARP CROSS BRACE - LM216 (2)1 X 3 1/2 X 90 TARP CROSS BRACE - LM215 INSERT THE T-NUTS INTO THE CROSS BRACES...
  • Page 23 BRIDGE ASSEMBLY Phase Hardware Fender Washer Phase 4: & INSTALLATION 1" Truss Head Screw 5/16" Split Washers 5/16" x 4 3/4" Hex Bolts 5/16" T-nuts Phase Parts (2) 1 3/8 X 5 5/16 X 64 11/16 BRIDGE JOIST - LF281 (4) GREEN L-BRACKET (SMALL) - M002 TRUSS HEAD SCREW...
  • Page 24 CENTER FLOOR BRACE Phase Hardware Fender Washer Phase 5: 5/16” Split Washer & PICNIC SUPPORT RAILS 1” Truss Head Screw 2 1/2” Deck Screws (16) ( 16) 5/16” x 2 1/2” Lag Screws 5/16” x 1” Hex Bolts 5/16” T-Nut ( 4) Phase Parts (2) 1 x 3 1/2 x 65 CENTER FLOOR SUPPORT - LM214...
  • Page 25 Phase Hardware ROCKWALL ASSEMBLY Phase 6: PLEASE REFER TO 1 3/4" Deck Screws ACCESSORY PLAN FOR (76) INSTALLATION INSTRUCTIONS 1 1/8" Deck Screws AND HARDWARE (19) Phase Parts (1) 2 X 2 11/16 X 67 13/16 ROCKWALL RAIL LEFT - LH260 11/16 X 31 1/2 ROCKWALL BRD.
  • Page 26 RUNG / CHAIN LADDER Phase Hardware Phase 7: ASSEMBLY 2 1/2" Deck Screws (14) Phase Parts (1) 2 X 2 11/16 X 67 13/16 LADDER RAIL LEFT - LH272 (1) 2 X 2 11/16 X 67 13/16 LADDER RAIL RIGHT - LH270 (1) 2 X 2 11/16 X 67 13/16 LADDER MIDDLE RAIL - LH271 (5) Ø1 1/8 X 13 3/4 LADDER RUNG - LJ273 (1)5/8X 3 1/2 X 15 3/4 LADDER SAFETY SLAT - LR274...
  • Page 27 ROCKWALL & LADDER Phase Hardware 5/16" Flat Washers Phase 8: ATTACHMENT 5/16" x 2 3/4" Hex Bolts 5/16" x 1" Hex Bolts (16) 1 3/4" Deck Screws 5/16" Split Washers 5/16" x 2 1/4" Hex Bolts 5/16" T-nuts 5/16" Lock Nuts (10) Phase Parts T-NUT...
  • Page 28 TOWER 'A' Phase Hardware Phase 9: TABLE & BENCHES 1 3/4" Deck Screws (36) 1 1/8" Deck Screws (39) 1 1/8” DECK SCREW STEP 1: Phase Parts 2 - BENCHES REQ’D. 11/16 X 15 TABLE BRACE - LR297 11/16 X 2 9/16 X 35 9/16 PICNIC ANGLE LEGS - LR293 LR298 LM290 (9) 1 X 3...
  • Page 29 SANDBOX SEATS Phase Hardware Phase 10: & GUSSETS 2 1/2" Deck Screws (24) 1 3/4" Deck Screws (24) Phase Parts (8) 1 X 2 9/16 X 17 5/16 GUSSET - LN204 (4) 11/16 X 3 1/2 X 21 SANDBOX SEAT - LR294 MAKE SURE FRAME IS (4) 11/16 X 3 1/2 X 14 SANDBOX SEAT - LR295 SQUARE BEFORE...
  • Page 30 FLOOR BOARD Phase Hardware & BARRIER RAIL Phase 11: Fender Washer ATTACHMENT 1 3/4" Deck Screws 5/16" Split Washers (270) 5/16" T-nuts 5/16" x 4 1/4" Hex Bolts Phase Parts 11/16 (38) X 39 3/8 FLOOR BRD. - LR243 (2) 11/16 X 1 1/4 X 39 3/8 FLOOR BOARD - LS112 11/16 X 1 1/4 X 23 5/8 FLOOR BOARD - LS113 (2) 1 5/16 X 3 1/2 X 64 7/16 BARRIER RAIL - LM283...
  • Page 31 Phase Hardware LOWER WALL RAILS Phase 12: 2 1/2" Deck Screws Fender Washer (24) 5/16" T-nuts 5/16" x 2 1/2" Lag Screws (12) (12) Phase Parts (2) 1 X 3 1/2 X 65 WALL RAIL - LM213 (4) 11/16 X 3 1/2 X 20 11/16 WALL RAIL- LR242 (4) 1 X3 1/2 X 11 WALL RAIL - LM226 (2) 11/16 X 3 1/2 X 64 7/16 WALL RAIL - LR282 (4) 1 X 3 1/2 X 7 WALL RAIL - LM227...
  • Page 32 Phase Hardware UPPER WALL RAILS Phase 13: 2 1/2" Deck Screws Fender Washer (24) 5/16" x 2 1/2" Lag Screws Phase Parts (4) 11/16 X 3 1/2 X 20 11/16 WALL RAIL - LR242 (2) 1 X 3 1/2 X 65 WALL RAIL- LM213 (2) 11/16 X 3 1/2 X 64 7/16 WALL RAIL - LR282 3"...
  • Page 33 SWING BEAM BRACE Phase Hardware Fender Washer Phase 14: & ARCH RAILS 5/16" Split Washers 5/16"x4"HexBolts (20) 2 1/2" Deck Screws 5/16" T-nuts 5/16" x 2 1/2" Lag Screws (16) (16) Phase Parts (2) 1 X 5 5/16 X 44 3/4 LAD./ROCKW ARCH RAIL - LK225 (1) 1 3/8 X 5 5/16 X 65 SWING BEAM CROSS BRACE- LF250 (2) 1 X 3 1/2 X 30 1/2 DOOR TOP RAIL - LM288 (2) 1 X 5 5/16 X 30 1/2 BRIDGE ARCH RAIL - LK287...
  • Page 34 TARP UPRIGHTS Phase Hardware Phase 15: & SUPPORTS 1 3/4" Deck Screws (42) Phase Parts 11/16 X 39 3/8 TARP END SUPP.. - LR234 (2) X 3 X 66 15/16 TARP UPRIGHT - LM230 (2) X 3 X 25 5/16 TARP UPRIGHT - LM231 X 37 3/8 TARP TOP SUPP..
  • Page 35 WALL SLATS Phase Hardware Phase 16: SIDES 1 & 2 1 1/8" Deck Screws (64) TARP UPRIGHT TYPICAL TYPICAL SPACING SPACING Phase Parts 2 3 4 2 3 4 (16) 5/8 X 3 1/2 X 23 5/8 WALL SLAT - LR240 REST ON FLOOR SIDES 1 &...
  • Page 36 WALL SLATS Phase Hardware Phase 17: SIDES 3,4 & 5,6 3/4" Tapping Screws 1 1 / 8 " Deck Screws (48) (16) Phase Parts (12) X 3 1/2 X 23 5/8 WALL SLAT - LR240 (8) GREEN L-BRACKET - M003 WALL SLAT L-BRACKET 3/4"...
  • Page 37 WALL SLATS Phase Hardware Phase 18: SIDES 7,8 & 9 - 12 1 1/8" Deck Screws (104) Phase Parts (26) 5/8 X 3 1/2 X 23 5/8 WALL SLAT - LR240 2 3 4 2 3 4 3 TYPICAL 2 1 2 SPACING 2 1 2 REST ON FLOOR...
  • Page 38 SWING BEAM Phase Hardware Fender Washer Phase 19: ASSEMBLY 5/16" x 4 1/2" 5/16" Flat Washers 5/16" Lock Nuts Hex Head Bolt (18) 5/16" x 3 1/4" 5/16" x 3 1/2" Lag Screws Hex Head Bolt 5/16" x 4" Hex Bolts Phase Parts (1) 3 5/16 X 5 5/16 X 89 1/2 SWING BEAM - LA251 (2) 1 3/8 X 3 5/16 X 82 1/2 SWING ANGLE BRACE - LG252...
  • Page 39 SWING BEAM Phase Hardware Phase 20: ASSEMBLY PLEASE REFER TO ACCESSORY PLAN(S) FOR INSTALLATION INSTRUCTIONS AND HARDWARE Phase Parts (1) GLIDER - BP 018-GY w/ HARDWARE (2) ULTIMATE SWING SEAT - BP014-Y (1) GLIDER SEAT (1 PAIR) GLIDER BRACKET BP 020 w/ HARDWARE (4) ULTIMATE SWING HANGER KC 003 w/ HARDWARE...
  • Page 40 SWING BEAM Phase Hardware Phase 21: ATTACHMENT (1) ID Tag 5/16" x 1 1/4" Hex Bolts 5/16" Split Washers Fender Washer 5/16" T-nuts (2) 3/4 Deck Screw CreativeCedarDesigns.com T-NUTS INSTALLED ON BACKSIDE IN PHASE 14 1 1/4” HEX BOLT, 5/16” SPLIT WASHER &...
  • Page 41 HAND GRIP Phase Parts Phase Hardware Phase 22: ATTACHMENT PLEASE REFER TO ACCESSORY PLAN(S) FOR INSTALLATION INSTRUCTIONS AND HARDWARE ( 2 PAIR ) SAFETY HANDLE BP007-Y w/ HARDWARE *Pre-drill holes with a 1/8” drill bit *Install all safety handles as shown. 1-3/4”...
  • Page 42 STEERING WHEEL Phase Hardware Phase 23: & TARP ATTACHMENT PLEASE REFER TO ACCESSORY PLAN(S) FOR INSTALLATION INSTRUCTIONS AND HARDWARE Phase Parts STEP 1: (1) STEERING WHEEL (2) TARP (GREEN) MARK CENTER OF BARRIER RAIL BP 008-G P005 AND DRILL THROUGH WITH w/ HARDWARE w/ HARDWARE 3/8”...
  • Page 43 SLIDE Phase Hardware Phase 24: ATTACHMENT #14 x 1” Truss Screw Phase Parts LARGE WAVE SLIDE (GREEN) POSITION SLIDE CENTERED IN AN OPENING AND 4” INTO THE TOWER AS SHOWN. INSTALL (4) TRUSS SCREWS PER SLIDE...
  • Page 44 Phase Parts Phase Hardware ANCHORING Phase 25: (8) FLAT WASHER (8) 1-1/2’’ LAG BOLT (2) ANCHOR 4-PACK w/ HDW BP001-B STAKE STAKE FLAT WASHER STAKE 1-1/2’’ LAG BOLT METAL STRAP STAKE ANCHOR STAKE STAKE *Place stakes into the ground next to playset as shown Note: Failure to use stakes can void warranty &...

  • Page 45: Limited Warranty

    LIMITED WARRANTY Creative Cedar Design (CCD) offers many fun, interactive, and safe play sets. We only guarantee the original purchaser that this product is free of defects for 30 days from the date of purchase. The product registration card, along with a dated purchase receipt, must be returned to CCD within 30 days. Within a 30 day period, CCD will repair or replace, at our option, defective merchandise free of charge, provided that the defective part is a manufacturer’s defect and not seasonal check.

  • Page 46: Warranty Claim Procedure

    3. Photos of warranted parts and of the entire play system. If any of the above steps are not completed, there may be delays in the completion of your claim, or possibly warranty cancellation. Mail information to: Creative Cedar Designs 2700 Riverside Dr Chattanooga, TN 37406 Or email at custservice@creativecedardesigns.com...
  • Page 47 PRODUCT REGISTRATION CARD Please complete this Product Registration Card along with a copy of the receipt and return to Creative Cedar Designs, within 30 days of original purchase in order to validate time of purchase for warranty. Or register at www.creativecedardesigns.com Name:________________________________________________________________ Address: _______________________________________________________________ City, State, Zip Code: ___________________________________________________...
  • Page 48 Please complete this Product Registration Card along with a copy of the receipt and return to Creative Cedar Designs, within 30 days of original purchase in order to validate time of purchase for warranty. FOLD HERE Place Stamp Here Creative Cedar Designs 2700 Riverside Dr. Chattanooga, TN 37406...
