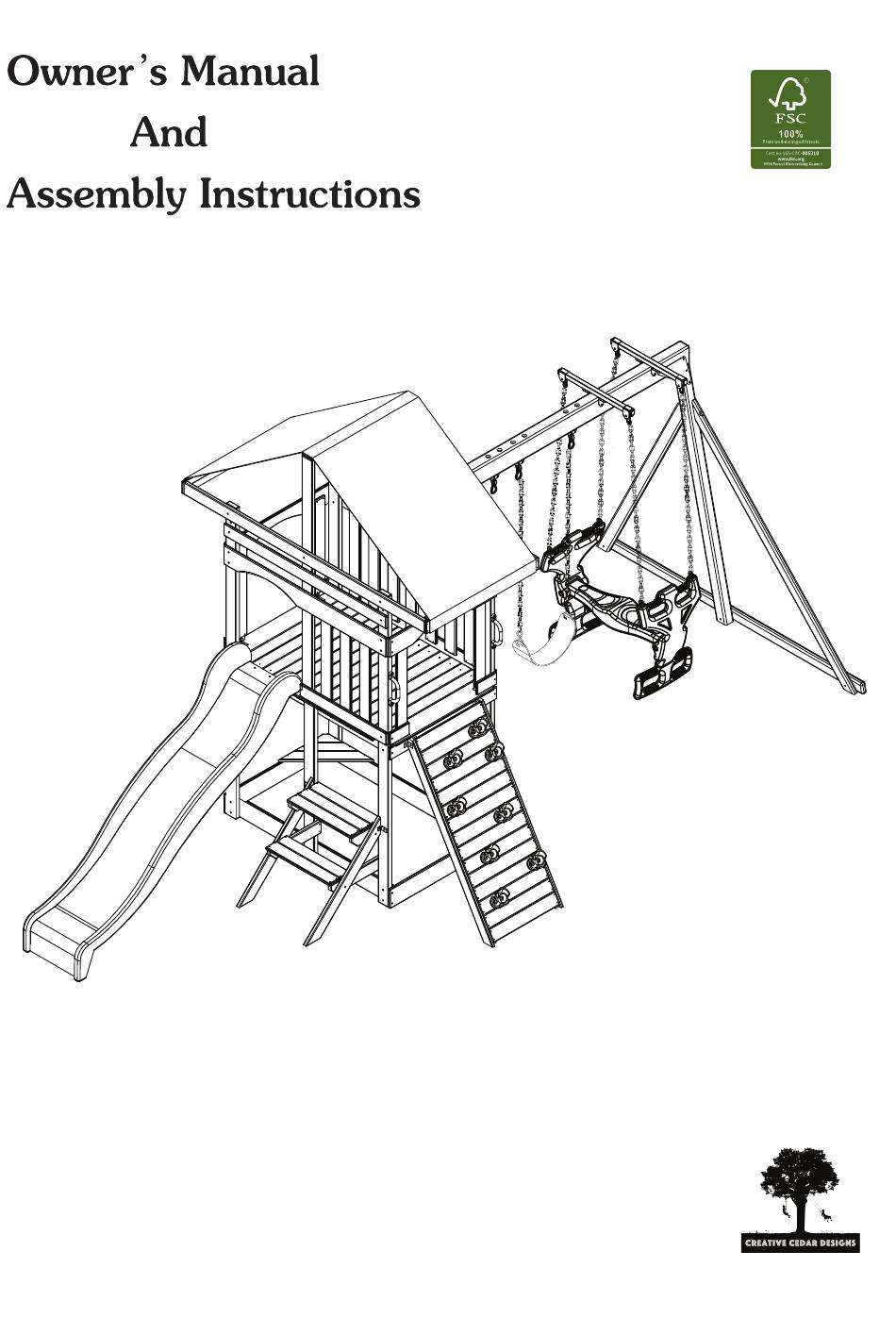

SKY VIEW GYM
Model: 3101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sky View 3101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Cedar Designs Sky View 3101

Summary of Contents for Creative Cedar Designs Sky View 3101

  • Page 1 SKY VIEW GYM Model: 3101...
  • Page 2 Creative Cedar Designs 8 8 8 8 8 8...
  • Page 3 STOP…PLEASE READ!! IF YOU HAVE ANY QUESTION OR ARE MISSING A PART, PLEASE DO NOT CONTACT THE RETAILER THAT YOU PURCHASED THIS PRODUCT FROM. PLEASE VISIT www.creativecedardesigns.com OR CONTACT US DIRECTLY AT OUR OFFICE, 1-888-363-4967 WE WILL ANSWER YOUR QUESTIONS, OR HELP WITH WHAT YOU NEED. For more efficient service, please log onto our website at www.creativecedardesigns.com...
  • Page 4 Creative Cedar Designs equipment is recommended for use by children 3 to 10 years of age. Creative Cedar Designs structures are not intended for public use. Creative Cedar Designs does not warranty any of its residential structures subjected to commercial use.
  • Page 5 The instructions and owner’s manual for your new Playcenter should be read in its entirety before assembly, to minimize problems and safety issues. We recommend reading the owner’s manual thoroughly after you have identified all of the parts for your Playcenter as discussed in the Helpful Installations Hints section below.
  • Page 6 8. Swing hangers should be buried past the threads, so that the loop is against the swing beam Creative Cedar Designs is not responsible for incorrect installations of swing hangers. Failure to properly install swing hangers may cause severe injury.
  • Page 7 Suggested Playground Surfacing Playground equipment should never be placed on hard surfaces such as concrete or asphalt. Do not install loose fill surfacing over hard surfaces such as concrete or asphalt. Shredded bark mulch, wood chips, fine sand and fine gravel, are added as shock absorbing materials after assembly.
  • Page 8 Operating Instructions: NOTE: Your children’s safety is our #1 concern. Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Please review these safety rules regularly with your children. 1. This Playcenter is designed for the use of 4 occupants not exceeding 290 pounds. 2.
  • Page 9 Ropes, cables and chains should be removed and replaced if excessive wear is found. Contact Creative Cedar Designs for replacement parts. 6. For rusted areas on metallic members such as monkey bars, hand supports, brackets, etc., sand and repaint, using a non lead-based paint meeting the requirements of Title 16 CRF Part 1303.
  • Page 10 APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material Also see the https://www.cpsc.gov/PageFiles/122146/324.pdf following website for additional information: X3. CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS X3.1 The U.S.
  • Page 11 SKY VIEW GYM SET Assembly Instructions WARNING: CHOKING HAZARD Unassembled parts may be a choking hazard to children 3 years and younger CAUTION: Adult assembly Required. Hardware contains small pieces with sharp point. Keep parts out of the reach of children until assembled. Parts of this product can present dangers if improperly assembled, CAUTION:...
  • Page 12 Basic Setup Dimensions Place the set on level ground, not less than 6ft (1.83M) from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines or electrical wires. 29'-10" [9,4M] 18' [5,5M] Ht. = 9'-9" [3M] SAFE HEIGHT Ht.

  • Page 13: Table Of Contents

    Parts Identification Wood Components (3) 11/16 X 3 1/2 X 22 ROCKWALL ROCK BRD. - WA011-10 (1) 3 5/16 X 5 5/16 X 89 1/2 SWING BEAM - LA251 (1) 3 5/16 X 2 11/16 X 83 SWING END BEAM - LD254 (7) 11/16 X 3 1/2 X 22 ROCKWALL SLAT - WA012-10 (2) 1 3/8 X 3 5/16 X 82 1/2 SWING ANGLE BRACE - LG252 (6) 11/16 X 3 1/2 X 21 1/4 SAFETY / TABLE SLAT - WA014-10...

  • Page 14: Table Of Contents

    Parts Identification Wood Components (2) 1 X 3 1/2 X 69 TARP UPRIGHT - WC003-10 (1) 2 X 2 11/16 X 54 ROCKWALL RAIL-RIGHT - WSF001-10 (1) 1 X 3 1/2 X 54 3/8 LADDER RAIL-LEFT - WC004-10 (1) 1 X 3 1/2 X 54 3/8 LADDER RAIL-RIGHT - WC005-10 (1) 2 X 2 11/16 X 54 ROCKWALL RAIL-LEFT - WSF002-10 (4) 1 X 3 1/2 X 20 LADDER STEP - WC006-10 (2) 1 X 3 1/2 X 35 TABLE LEG - WC007-10...
  • Page 15 Parts Identification Accessories CreativeCedarDesigns.com (1) ID-TAG w/ HDW (2) GLIDER BRACKET (4) ANCHOR PACK w/ HDW BP020 BP001-B w/ HARDWARE (2) GREEN ANGLE BRACKET (5") - M005 (13) GREEN L-BRACKET (SMALL) - M002 (2) 4 COUNT BAGS CLIMBING ROCKS BP011-GYBR w/ HARDWARE (1) FORT TARP (GREEN) (4) SWING HANGER w/ HDW...
  • Page 16 Hardware Identification 5/16" x 4" Hex Bolts 5/16HB4 5/16" x 2 1/2" Hex Bolts 5/16HB21/2 (10) 1/4" 1/2" 5/16" x 2 1/4" Hex Bolts 5/16HB21/4 3/4" (12) 1" 5/16" x 2" Hex Bolts 5/16HB2 2" 5/16" x 1 1/4" Hex Bolts 5/16HB11/4 3"...
  • Page 17 Hardware Identification 5/16" Split Washers 2 1/2" Square Head Deck Screws 5/16SW (32) (16) #8DS2 1/2 2" Square Head Deck Screws (32) #8DS2 5/16" Lock Nuts Fender Washer LN5/16 (89) 1 1/2" T-20 Head Deck Screws (112) #8DS11/2 5/16" T-nuts 5/16TN (32) 1 1/4"...
  • Page 18 Phase Hardware Fender Washer FORT FRAME ASSEMBLY Phase 1: 5/16" x 2 1/4" Hex Bolts 5/16" Split Washers (12) (12) BUILD 2 FRAME 5/16" x 2 1/2" Hex Bolts 5/16" T-nuts (12) ASSEMBLIES Phase Parts (2) 11/16 X 5 1/2 X 54 GROUND BOARD - WB001-10 (2) 1 X 3 1/2 X 54 FLOOR BRD.
  • Page 19 Phase Hardware FORT FRAME ASSEMBLY Phase 2: Fender Washer 5/16" x 2" Lag Screws (12) (12) Phase Parts (2) 11/16 X 3 1/2 X 35 1/2 FLOOR SUPPORT - WA001-10 (2) 11/16 X 5 1/2 X 35 1/2 GROUND BOARD - WB003-10 Note: It is IMPORTANT that the fort be level after this phase!
  • Page 20 Phase Hardware FLOOR INSTALLATION Phase 3: 1 1/2" T-20 Deck Screws (34) 3/4" Tapping Screws 1 1/4" T-20 Deck Screws (17) Phase Parts (2) 11/16 X 5 1/2 X 32 3/4 END FLOOR BRD. - WB005-10 (13) 11/16 X 3 1/2 X 37 1/2 FLOOR BOARD - WA002-10 (2) GREEN L-BRACKET (SMALL) - M002 (1) 11/16 X 3 1/2 X 54 FLOOR BRACE - WA005-10 CENTER FLOOR LAYOUT...
  • Page 21 Phase Hardware RAIL ATTACHMENT Phase 4: Fender Washer 5/16" x 2 1/2" Hex Bolts 5/16" Split Washers 5/16" x 2" Lag Screws 5/16" T-nuts USE A STEP LADDER FOR SAFETY! Phase Parts (1) 1 X 5 1/2 X 54 SWING BEAM CROSS BRACE - WD001-10 (2) 11/16 X 3 1/2 X 54 WALL RAIL - WA006-10 1 3 8 BOLT CROSS BRACE...

  • Page 22: X 3 1/2 X 54 3/8 Ladder Rail-Left -

    DECK LADDER Phase Hardware Phase 5: ASSEMBLY 2 1/2" Square Head Deck Screws 2" Square Head Deck Screws (16) Phase Parts (1) 1 X 3 1/2 X 54 3/8 LADDER RAIL-LEFT - WC004-10 (4) 1 X 3 1/2 X 20 LADDER STEP - WC006-10 (1) 1 X 3 1/2 X 54 3/8 LADDER RAIL-RIGHT - WC005-10 (1) 11/16 X 3 1/2 X 21 1/4 SAFETY / TABLE SLAT - WA014-10 WC004-10...

  • Page 23: X 3 1/2 X 22 Rockwall Rock Brd. -

    Phase Hardware ROCKWALL ASSEMBLY Phase 6: PLEASE REFER TO ACCESSORY PLAN FOR 1 1/2" T-20 Deck Screws INSTALLATION INSTRUCTIONS (60) AND HARDWARE. Phase Parts (1) 2 X 2 11/16 X 54 ROCKWALL RAIL-RIGHT - WSF001-10 (5) 11/16 X 3 1/2 X 22 ROCKWALL ROCK BRD. - WA010-10 (3) 11/16 X 3 1/2 X 22 ROCKWALL ROCK BRD.
  • Page 24 ROCKWALL & LADDER Phase Hardware Phase 7: ATTACHMENT 1” Truss Head Screw 3/4" Tapping Screws Phase Parts FLOOR (4) GREEN L-BRACKET (SMALL) - M002 FLR. SUP. POSITION ROCKWALL CENTER ROCKWALL & DECKLADDER & DECKLADDER IN THE AREAS SHOWN AS SHOWN DO NOT OVER TIGHTEN TAPPING SCREWS! 1"...

  • Page 25: X 5 1/2 X 54 Rail/Ground Board -

    TOP RAIL Phase Hardware Phase 8: INSTALLATION 5/16" x 2" Lag Screws Fender Washer 5/16" Split Washers (14) 5/16" T-nuts (18) 5/16" x 2 1/4" Hex Bolts Phase Parts (1) 11/16 X 5 1/2 X 54 RAIL/GROUND BOARD - WB001-10 (2) 11/16 X 5 1/2 X 35 1/2 CENTER ARCH RAIL - WB004-10 (1) 11/16 X 3 1/2 X 54 WALL RAIL - WA006-10 (1) 11/16 X 5 1/2 X 54 SIDE ARCH RAIL - WB002-10...
  • Page 26 TARP BRACE Phase Hardware Fender Washer Phase 9: INSTALLATION 5/16" x 2 1/2" Hex Bolts 5/16" Split Washers 5/16" x 2" Hex Bolts 5/16" T-nuts 1 1/2" T-20 Deck Screws Phase Parts (2) 1 X 3 1/2 X 80 TARP CROSS BRACE - WC002-10 (2) 1 X 3 1/2 X 69 TARP UPRIGHT - WC003-10 2"...
  • Page 27 LOWER RAIL Phase Hardware Phase 10: ATTACHMENT Fender Washer 5/16" x 2" Lag Screws 1 1/4" T-20 Deck Screws (14) Phase Parts (1) 11/16 X 3 1/2 X 28 3/4 WALL RAIL - WA007-10 (2) 11/16 X 3 1/2 X 15 1/2 SANDBOX SEAT - WA016-10 (2) 11/16 X 3 1/2 X 8 1/2 SANDBOX SEAT - WA015-10 (2) 11/16 X 3 1/2 X 22 1/2 SANDBOX SEAT - WA017-10 (4) 11/16 X 3 1/2 X 6 1/2 WALL RAIL - WA008-10...
  • Page 28 WALL SLAT Phase Hardware Phase 11: ATTACHMENT 3/4" Tapping Screws 1 1/4" T-20 Deck Screws (52) (10) Phase Parts WALL SLAT PRE-DRILL CONNECTIONS (13) 11/16 X 3 1/2 X 27 WALL SLAT - WA009-10 2" WITH A 1/8’’ BIT L-BRACKET TO PREVENT SPLITTING 3/4"...
  • Page 29 TARP SUPPORTS Phase Hardware Phase 12: LUNCH TABLE UPRIGHT 1 1/2" T-20 Deck Screws (16) Phase Parts (2) 11/16 X 3 1/2 X 37 1/2 TARP SUPPORT - WA003-10 (1) 1 3/8 X 3 3/8 X 46 1/4 TABLE UPRIGHT - WE002-10 (1) 11/16 X 3 1/2 X 35 1/2 TARP SUPPORT - WA004-10 WA004-10 DECK SCREWS...
  • Page 30 HAND GRIP Phase 13: Phase Parts ATTACHMENT PLEASE REFER TO ACCESSORY PLAN FOR INSTALLATION INSTRUCTIONS AND HARDWARE. ( 2 PAIR ) SAFETY HANDLE BP007-Y *Pre-drill holes with a 1/8” drill bit *Install all safety handles as shown. 1-3/4’’ Wood Screw &...
  • Page 31 SWING BEAM Phase Hardware Fender Washer Phase 14: ASSEMBLY 5/16" x 4 1/2" Hex Head Bolt 5/16" Lock Nuts (20) 5/16" x 3 1/2" Lag Screws 5/16" x 3 1/4" Hex Head Bolt 5/16" x 4" Hex Bolts Phase Parts (1) 3 5/16 X 5 5/16 X 89 1/2 SWING BEAM - LA251 (2) 1 3/8 X 3 5/16 X 82 1/2 SWING ANGLE BRACE - LG252 (1) 1 3/8 X 3 5/16 X 89 SWING GROUND BOARD - LG253...
  • Page 32 SWING BEAM Phase 15: ASSEMBLY Phase Hardware PLEASE REFER TO THE SWING HANGER, SWING SEAT, AND GLIDER ACCESSORY PLANS FOR INSTALLATION INSTRUCTIONS AND HARDWARE. (1) GLIDER - BP 018-GY Phase Parts (2) STANDARD SWING SEAT - BP010-Y (1) GLIDER SEAT (1 PAIR) GLIDER BRACKET BP 020 (4) ULTIMATE SWING HANGER...
  • Page 33 SWING BEAM Phase Hardware Phase 16: ATTACHMENT (1) ID Tag Fender Washer 5/16" x 1 1/4" Hex Bolts 5/16" Split Washers 5/16" T-nuts (2) 3/4 Tapping Screw CreativeCedarDesigns.com HAMMER T-NUTS INTO HOLES ON BACKSIDE OF CROSS BRACE 1 1/4" HEX BOLT, 5/16" SPLIT WASHER &...
  • Page 34 Phase Hardware TARP ATTACHMENT Phase 17: PLEASE REFER TO THE HARDWARE INCLUDED WITH YOUR TARP. Phase Parts (1) FORT TARP (GREEN) STRETCH TARP TIGHT OVER SUPPORTS 3/4” TAPPING SCREWS 3 EACH SIDE INSIDE VIEW DO NOT OVER TIGHTEN TAPPING SCREWS! TARP 3/4”...
  • Page 35 Phase Hardware TABLE RAILS Phase 18: 1” Truss Head Screw Phase Parts (2) 1 X 3 1/2 X 35 TABLE LEG - WC007-10 (2) GREEN L-BRACKET (SMALL) - M002 FLUSH WITH INSIDE OF UPRIGHTS 21 1/4" I.D. 1” Truss Head Screw HAND TIGHTEN ALL TAPPING SCREWS 2”...
  • Page 36 Phase Hardware Fender Washer TABLE ASSEMBLY Phase 19: 5/16" x 2" Hex Bolts 5/16" Split Washers 2" Square Head Deck Screws 5/16" T-nuts (28) Phase Parts (5) 11/16 X 3 1/2 X 21 1/4 SAFETY / TABLE SLAT - WA014-10 (2) 1 X 3 1/2 X 10 TABLE BRACE - WC009-10 (2) 1 X 3 1/2 X 17 TABLE BRACE - WC008-10 2"...
  • Page 37 SLIDE Phase Hardware Phase 20: ATTACHMENT 1" Truss Head Screws Phase Parts 8' WAVE SLIDE (GREEN) (3) 1" Truss Head Screws...
  • Page 38 Phase Parts Phase Hardware ANCHORING Phase 21: (4) FLAT WASHER (4) 1-1/2’’ LAG BOLT (4) ANCHOR PACK w/ HDW BP001-B FLAT WASHER 1-1/2’’ LAG BOLT METAL STRAP ANCHOR STAKE STAKE *Place stakes into the ground next to playset as shown STAKE STAKE Note: Failure to use stakes can void warranty &...
  • Page 39 LIMITED WARRANTY Creative Cedar Design (CCD) offers many fun, interactive, and safe play sets. We only guarantee the original purchaser that this product is free of defects for 30 days from the date of purchase. The product registration card, along with a dated purchase receipt, must be returned to CCD within 30 days. Within a 30 day period, CCD will repair or replace, at our option, defective merchandise free of charge, provided that the defective part is a manufacturer’s defect and not seasonal check.
  • Page 40 3. Photos of warranted parts and of the entire play system. If any of the above steps are not completed, there may be delays in the completion of your claim, or possibly warranty cancellation. Mail information to: Creative Cedar Designs 2700 Riverside Dr Chattanooga, TN 37406 Or email at custservice@creativecedardesigns.com...
  • Page 41 PRODUCT REGISTRATION CARD Please complete this Product Registration Card along with a copy of the receipt and return to Creative Cedar Designs, within 30 days of original purchase in order to validate time of purchase for warranty. Or register at www.creativecedardesigns.com Name:________________________________________________________________ Address: _______________________________________________________________ City, State, Zip Code: ___________________________________________________...
  • Page 42 Please complete this Product Registration Card along with a copy of the receipt and return to Creative Cedar Designs, within 30 days of original purchase in order to validate time of purchase for warranty. FOLD HERE Place Stamp Here Creative Cedar Designs 2700 Riverside Dr. Chattanooga, TN 37406...
