Creative Cedar Designs Mountain View 3430 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Mountain View
3430

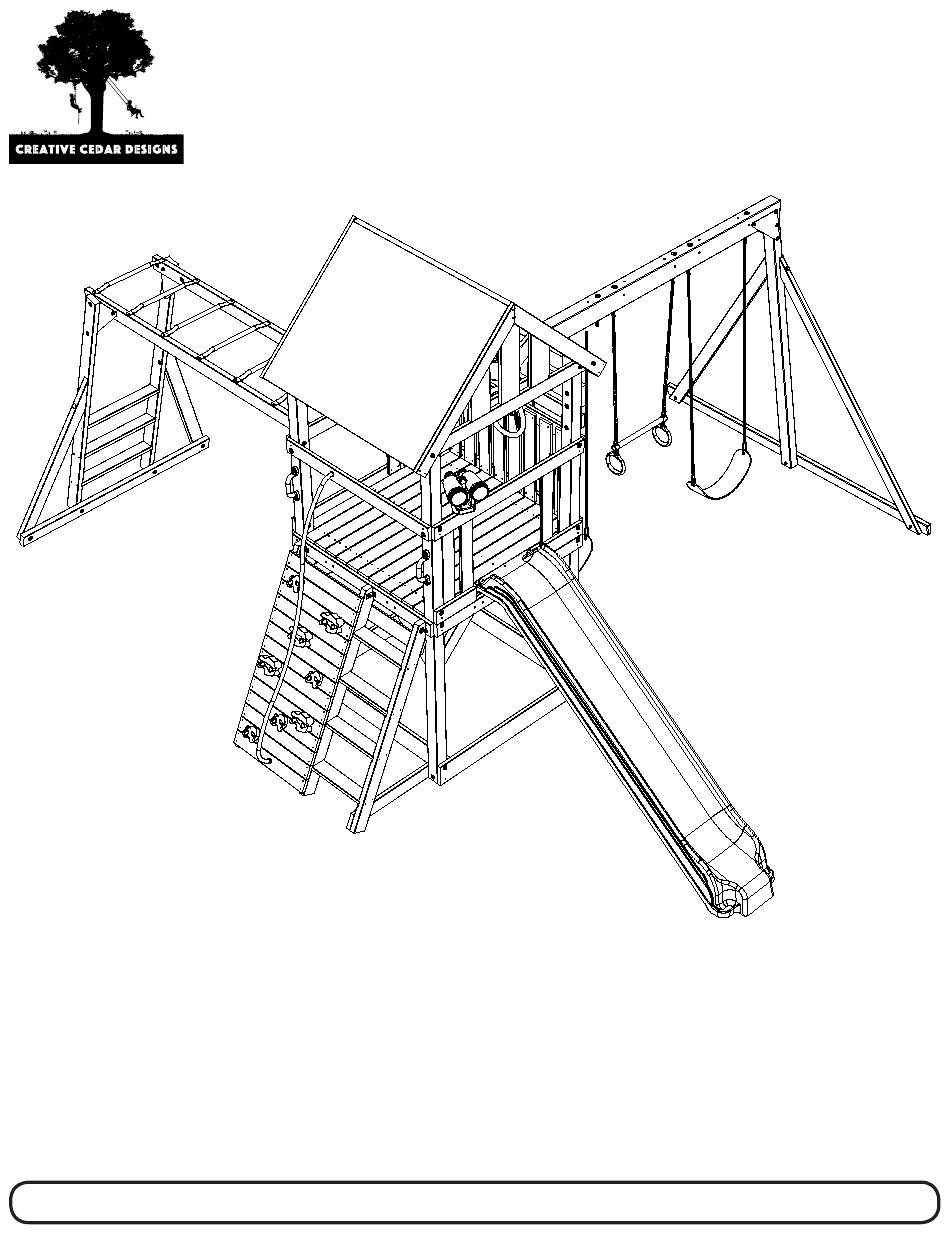

ASSEMBLY INSTRUCTIONS
Creative Cedar Designs • PO Box 4901 • Chattanooga, TN 37405
Visit our web site at: www.Creativecedardesigns.com or call us at 888-363-4967
© Creative Cedar Designs 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mountain View 3430 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Cedar Designs Mountain View 3430

Summary of Contents for Creative Cedar Designs Mountain View 3430

  • Page 1 Mountain View 3430 ASSEMBLY INSTRUCTIONS Creative Cedar Designs • PO Box 4901 • Chattanooga, TN 37405 Visit our web site at: www.Creativecedardesigns.com or call us at 888-363-4967 © Creative Cedar Designs 2020...
  • Page 2 ATTENTION: READ THIS BEFORE USE OF YOUR PLAYSET OR ACCESSORY: Observing the following statements and warnings reduces the likelihood of serious or fatal injury. This product has been designed for single family home/residential use only and is not intended for use in any public setting. Placement in public settings constitutes misuse of this product. Play Safe Installation Checklist: →...
  • Page 3 LIMITED WARRANTY Creative Cedar Design (CCD) off ers many fun, interactive, and safe play sets. We only guarantee the original purchaser that this product is free of defects for 30 days from the date of purchase. The product registration card, along with a dated purchase receipt, must be returned to CCD within 30 days. Within a 30-day period, CCD will repair or replace, at our option, defective merchandise free of charge, provided that the defective part is a manufacturer’s defect and not seasonal check.
  • Page 4 DIMENSIONS MINIMUM USE ZONE FOR PLAY EQUIPMENT SHALL EXTEND NO LESS THAN 72” FROM ALL SIDES OF THE PLAY STRUCTURE. SWING USE ZONE EXTENDS NO LESS THAN 158” SWINGS MUST HAVE A MINIMUM OF 8” ABOVE THE PROTECTIVE SURFACING.

  • Page 5: Tools Required

    TOOLS REQUIRED DRILL 9/16”, 1/2” & 7/16” HAMMER ADJUSTABLE TAPE MEASURE SOCKET & WRENCH WRENCH PHILLIPS BIT TORX T-20 BIT SQUARE BIT CARPENTER SAFETY GLASSES SQUARE INCLUDED HARDWARE...
  • Page 6 INCLUDED HARDWARE CONT.,...

  • Page 7: Included Components

    Hardware Mountain View 3430 ASSEMBLY INSTRUCTIONS CreativeCedarDesigns.com Creative Cedar Designs • 2700 Riverside Drive • Chattanooga, TN 37406 Visit our web site at: www.Creativecedardesigns.com or call us at 888-363-4967 © Creative Cedar Designs 2020 (1) Ring/Trap Combo (1) ID Tag...

  • Page 8: Board List

    BOARD LIST...
  • Page 9 STEP 1 Rockwall Post Assembly WM701 POST T-NUT T-NUT T-NUT WM715 DECK SUPPORT T-NUT T-NUT 5/16-18 T-Nut (x3) T-NUT WM707 DECK SUPPORT T-NUT T-NUT T-NUT WM701 POST 3/8-16 T-Nut (x16) 1. Insert T-Nut(s) into Post(s) and supports as shown. NOTE the hole orientation.
  • Page 10 STEP 2 Rockwall Post Assembly Check to make sure structure is square WM706 RAILING - RW 3-3/4” Bolt TIP: Hand tighten bolts, square structure, install screws then tighten bolts. WM715 DECK SUPPORT WM707 DECK SUPPORT 4-3/4” Bolt 3-3/4” Bolt WM725 BASE 2”...
  • Page 11 STEP 3 Swing Beam Post Assembly WM703 POST-SB T-NUT T-NUT WM707 DECK SUPPORT T-NUT T-NUT T-NUT T-NUT WM741 SWING BEAM MOUNT T-NUT 5/16-18 T-Nut (x4) T-NUT T-NUT WM703 POST-SB 3/8-16 T-Nut (x14) 1. Insert T-Nut(s) into Post(s) and supports as shown. NOTE the hole orientation.
  • Page 12 STEP 4 Swing Beam Post Assembly 4” Bolt(s) WM741 SWING BEAM MOUNT Check to make sure structure is square 3-3/4” Bolt WM705 RAILING TIP: Hand tighten bolts, square structure, install screws then tighten bolts. WM707 DECK SUPPORT WM712 BARRIER SUPPORT 4-3/4”...
  • Page 13 STEP 5 TIP: Hand tighten bolts, T-NUT WM728 square structure, install ROOF SUPPORT screws then tighten bolts. Check to make sure structure is square T-NUT WM728 ROOF SUPPORT T-NUT WM705 RAILING T-NUT WM725 BASE WM713 RAILING WM712 DECK SUPPORT WM725 BASE WM712 DECK SUPPORT...
  • Page 14 STEP 6 TIP: Hand tighten bolts, square structure, install screws then tighten bolts. Check to make sure structure is square 2” Screw(s) (8) WM740 2-1/2” Screw ANGLED DECK SUPPORT 2” Screw 2” Screw 3” Screw WM708 TOWER SUPPORT 2” Screw(s) 2”...
  • Page 15 STEP 7 WM771 DECK - SLIDE 1-1/2” Screw(s) WM732 DECK - MB 1-3/8” Screw(s) (11) WM733 from top of deck DECK WM718 CENTER DECK SUPPORT (2) WM768 SLIDE SUPPORT T-Nut on bottom Underdeck View 1-3/8” Screw(s) 1/4-20 T-Nut (x2) 1-3/8” Deck Screw (x23) 1-1/2”...
  • Page 16 STEP 8 WM705 RAILING WM739 BARRIER SUPPORT LH SLIDE WM721 BARRIER SUPPORT RH SLIDE 2” Deck Screw (x4) 3/8-16 x 3-3/4” Hex Bolt (x4) 3/8 Lock Washer (x4) 3/8 Washer (x4) 1. Attach barrier support boards as shown. Note the board(s) orientation.
  • Page 17 STEP 9 (3) WM736 (8) WM736 BARRIER BOARD BARRIER BOARD 3/4” gap between posts 1-3/8” gap between boards 3/4” gap above decking 1-1/2” Deck Screw (x44) 1. Attach Barrier boards as shown.
  • Page 18 STEP 10 (4) WM736 BARRIER BOARD no gap against posts fl ush to end of barrier support 1-1/2” Deck Screw (x8) 1. Attach Barrier boards as shown.
  • Page 19 STEP 11 (2) WM729 STEP 11A ROOF A-FRAME WM731 ROOF TARP END WM730 ROOF RIDGE FLUSH STEP 11B STEP 11C 2” Deck Screw (x16) 3/8-16 x 2” Hex Bolt (x4) 3/8 Lock Washer (x4) 3/8 Washer (x4) 1. Assemble two Roof A-Frames and attach as shown. 2.
  • Page 20 STEP 12 WM742 GABLE CTR (2) WM744 (2) WM743 GABLE ANGLE GABLE SIDE WM749 GABLE SUPPORT 1-3/4” Deck Screw (x46) 1. Attach Gable boards as shown.
  • Page 21 STEP 13 T-NUT WM772 LADDER HE T-NUT WM711 (4) WM735 RW/LDR RHGIT LADDER STEP T-NUT WM710 RW/LDR CENTER WM709 RW/LDR LEFT 2” Deck Screw (x20) 5/16-18 T-Nut (x3) 1. Install T-Nuts as shown. NOTE the hole orientation for each board. 2.
  • Page 22 STEP 14 (3) M002 BRACKET 1-1/4” Bolt WM727 1-3/4” Bolt LADDER SUPPORT 5/16-18 x 1-1/4” Hex Bolt (x3) 5/16 Washer (x6) 5/16-18 x 1-3/4” Hex Bolt (x3) 2” Deck Screw (x4) 5/16 Lock Washer (x6) 1. Attach Brackets to deck support, then attach the Ladder and Rockwall support boards as shown NOTE ladder board(s) orientation 2.
  • Page 23 STEP 15 (5) WM734 ROCKWALL (2) WM722 ROCKWALL - CENTER WM723 ROCKWALL - BOTTOM (6) WM737 ROCKWALL - SIDE 2” Deck Screw (x56) 1. Attach Rockwall boards as shown NOTE rock mounting hole(s) orientation...
  • Page 24 STEP 16 Swing Beam Assembly 5/16-18 T-Nut (x6) LA251 SWING BEAM TIP: Slide a screwdriver thru the Hanger hook to help tighten it into the T-Nut 1-1/4” Deck Screw (x24) 1. Attach Swing Hangers to swing beam as shown. Note plate & swing hanger must be tight against bottom of swing beam prior to step 5.

  • Page 25: Swing Beam Assembly

    STEP 17 Swing Beam Assembly (2) M005 BRACKET 5/16-18 x 4” Hex Bolt (x2) 5/16 Washer (x4) 5/16-18 Lock Nut (x2) 1. Attach Brackets to swing beam as shown.

  • Page 26: A-Frame Assembly

    STEP 18 A-Frame Assembly LG252 SWING BEAM A-FRAME LD254 SWING BEAM SUPPORT LG252 SWING BEAM A-FRAME LG253 SWING BEAM BASE 5/16-18 x 3-1/4” Hex Bolt (x2) 5/16-18 x 3-1/2” Lag Screw (x2) 5/16-18 x 4-1/2” Hex Bolt (x1) 5/16 Washer (x8) 5/16-18 Lock Nut (x3) 1.
  • Page 27 STEP 19 (2) M100 A-FRAME BRACKET 5/16-18 x 4” Hex Bolt (x2) 5/16 Washer (x4) 5/16-18 Lock Nut (x2) 1. Attach A-Frame brackets as shown.
  • Page 28 STEP 20 Swing Beam Assembly A-Frame Assembly 5/16-18 x 4” Hex Bolt (x2) 5/16 Washer (x4) 5/16-18 Lock Nut (x2) 1. Attach Swing Beam assembly to A-Frame assembly as shown.
  • Page 29 STEP 21 5/16-18 x 1-1/2” Hex Bolt (x4) 5/16 Washer (x4) 5/16 Lock Washer (x4) 1. Attach Swing Beam Assembly to tower as shown.
  • Page 30 STEP 22 TOP RUNG ASSEMBLY T-NUT WM773 MONKEY BAR TOP LH WM745 MONKEY BAR TOP RH T-NUT (6) PT 401 MONKEY BAR 22” 3/8-16 T-Nut (x6) 1. Insert T-Nut(s) into supports as shown. NOTE the hole orientation and T-Nut locations. 2.
  • Page 31 STEP 23 LADDER ASSEMBLY T-NUT T-NUT WM767 MONKEY BAR LDH LH (2) WM748 WM746 MONEKY BAR MONKEY BAR LDR RH T-NUT ANGLE SUPPORT T-NUT T-NUT (3) WM770 MONEKY BAR STEP 3-3/4” Bolt 2-3/4” Bolt WM747 MONKEY BAR BASE 4-3/4” Bolt 2”...
  • Page 32 STEP 24 TOP RUNG ASSEMBLY (2) 2023 BRACKET 2-3/4” Bolt 1-3/4” Bolt LADDER ASSEMBLY 3/8-16 x 1-3/4” Hex Bolt (x6) 3/8-16 x 2-3/4” Hex Bolt (x2) 3/8 Lock Washer (x8) 3/8 Washer (x8) 1. Attach Brackets to Top Run Assembly as shown. NOTE orientation of bracket holes 2.
  • Page 33 STEP 25 (2) 2084 BRACKET 1-3/4” Bolt 1-1/4” Bolt 3/8-16 x 1-1/4” Hex Bolt (x2) 3/8-16 x 1-3/4” Hex Bolt (x2) 3/8 Lock Washer (x4) 3/8 Washer (x4) 1. Attach Brackets to railing as shown. 2. Attach Monkey Bar assembly to brackets as shown.
  • Page 34 STEP 26 1/4-20 T-Nut Climbing Rock 1/4” Lock Washer 8mm Washer 1/4”-20 x 2-1/4 Hex Head Bolt 1. Attach Climbing Rocks as shown. 2. Make sure Climbing Rocks and rock wall connections are fully secure before use.
  • Page 35 STEP 27 CLIMBING ROPE 1. Attach Climbing Rope as shown.
  • Page 36 STEP 28 (2) SAFETY HANDLES 1. Attach Safety Handles per accessory plan...
  • Page 37 STEP 29 TARP FLUSH 3/16 Fender Washer (x6) #8 x 3/4” Pan Screw (x6) 1. Lay tarp over both Roof End and Roof Ridge as shown. 2. Wrap one end of the tarp under and around a Roof End board, hold fl ush as shown and secure with (3) washers &...
  • Page 38 STEP 30 BINOCULARS 1. Attach Binoculars per accessory plan.
  • Page 39 STEP 31 STEERING WHEEL 1. Drill a 5/16” hole at the location shown and attach Steering Wheel per accessory plan.
  • Page 40 STEP 32 1/4-20 Screw, Lock & Flat washer Outer Holes 1” Truss Screw Center Hole 1-1/4” Deck 2” Screws Grade WM774 SLIDE STAKE 1” Truss Screw (x1) 1-1/4” Deck Screw (x2) 1/4-20 x 2” Button Head Bolt (x2) 1/4 Lock Washer (x2) 1/4 Washer (x2) 1.
  • Page 41 STEP 33 Standard Swing Seats NOTE: Swing Hanger must be crimped close. 1. Assemble Standard Swing Seat(s) per accessory plan and mount to swing hangers as shown.
  • Page 42 STEP 34 Ring-Trap NOTE: Swing Hanger must be crimped close. 1. Assemble Ring-Trap per accessory plan and mount to swing hangers as shown.
  • Page 43 STEP 35 5/16” Washer Fold up 1-1/2” Lag Anchor-It Screw Strap Anchor-It 1. Place swing set in fi nal location and mount Anchor(s) at locations circled above. 2. Twist the Anchor into the ground until only the loop is exposed. 3.
  • Page 44 STEP 36 CreativeCedarDesigns.com 1/2” Pan Screw (x2) 1. Attach ID Tag as shown.
  • Page 48 Call our Customer Support Representatives Available Monday - Friday, 9am - 4pm (EST) Technical Support from experienced Customer Service Representatives who have actually built a swing set themselves. Visit our web site at: www.Creativecedardesigns.com © Creative Cedar Designs 2020 10.27.2020...
