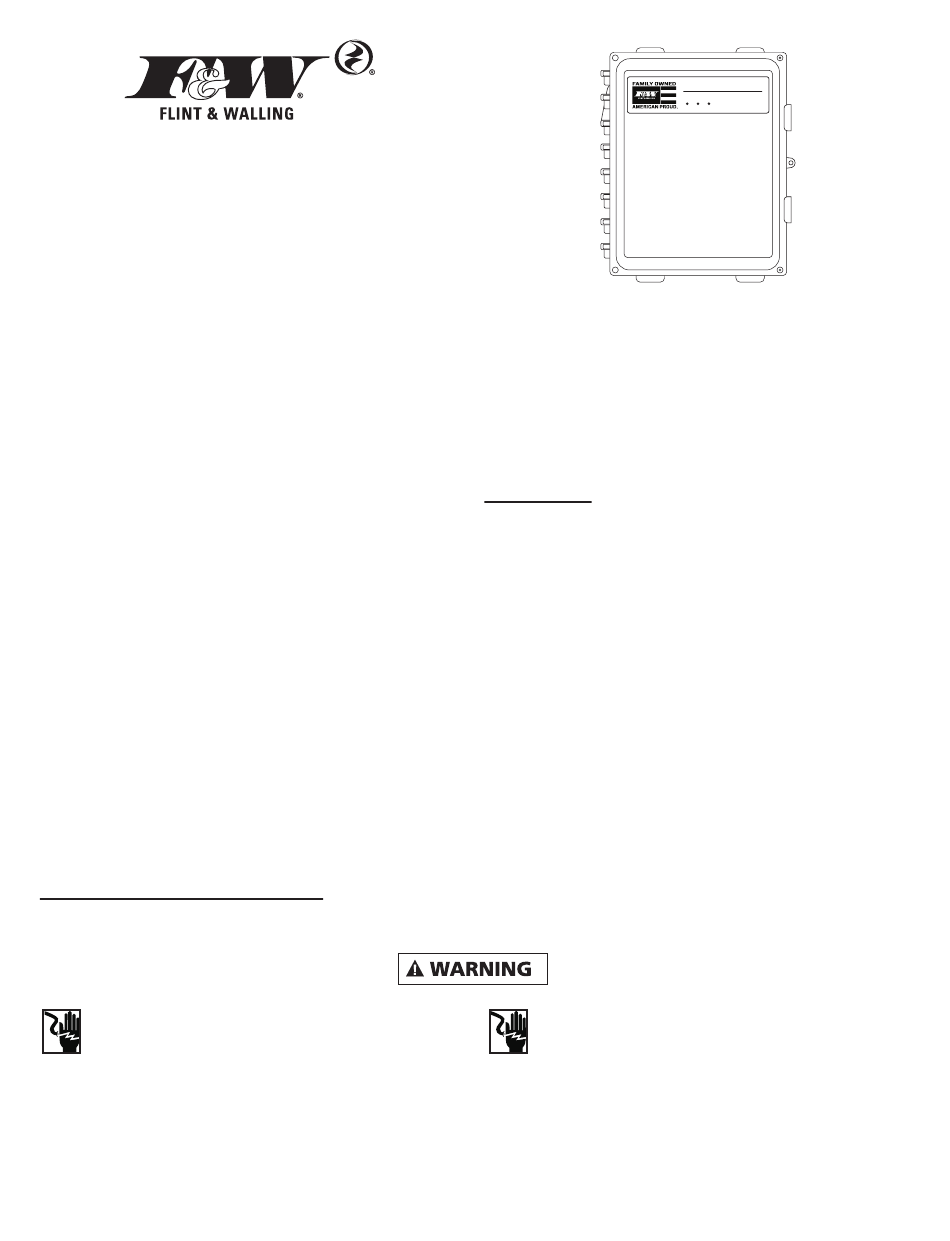

Commander® 3 Variable
Speed Controller System
Instructions
The Commander® 3 Variable Speed Controller is a dependable
water system Variable Frequency Drive (VFD) that uses custom
programming to enhance the performance of single phase 3-Wire
& 3-phase submersible pumps as well above ground 3-phase
pumps. When applied correctly, the drive eliminates pressure
cycling associated with conventional pressure switch-controlled
water pumping systems and provides a constant output pressure.
Key features of the drive controller include:
Can use either a pressure switch (no snap action) or a
4-20mA transducer as the pressure control.
Constant water pressure with a wide range of settings (30-
80 psi) (Note: The maximum obtainable system pressure is
limited by the performance of the pump installed)
Smaller pressure tank can be used.
Can be used with F&W as well as industry standard 3-wire
single phase submersible motors as well as 3-Phase
submersible motors or above ground pumps with 3-phase
motors.
Fits the pump to the application – pump speed is controlled
to provide the optimum performance without overloading the
motor.
Low in-rush (power-on transient) current
Rules for safe installation and operation.
Read these warnings and instructions carefully. Failure to follow them could cause serious bodily injury and/or property damage.
Follow all local electrical and safety codes as well as
the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSHA).
The power supply should be a separate circuit, independent
of all other circuits. Be sure it is equipped with a fuse and
disconnect box of ample capacity.
DESCRIPTIONS AND FEATURES
Included Items:
A.
B.
C. Switch or Transducer Cable
D. Installation Manual
E.
F.
G. Switch Adjustment Tool (Switch Systems only)
Note to Canada residents: A gallon refers to a US standard
gallon (3 .78 liters)
IMPORTANT SAFETY INSTRUCTIONS
application of power. Failure to do so could result in fatal
electrical shock.
HELP LINE: 800-742-5044
Flint & Walling © Copyright 2024. All rights reserved.
1
Low motor start-up current (soft-starting)
Protection features
Underload conditions – using intelligent load monitoring
(see page 10)
Locked pump or motor
Low line voltage
Short circuit
Controller Unit
Pressure switch or Transducer
Small Screwdriver
Warranty Card
Always disconnect power source before performing
any work on or near the motor or its connected load.
If the power disconnect point is out-of-sight, lock it in
the open position and tag it to prevent unexpected
COMMANDER 3
COMMANDER 2
INDOOR/OUTDOOR USE
INDOOR/OUTDOOR USE
PWR
PWR
STS
STS
TRP
TRP
FW2294 A
FW2294 A
025676 A
