Immergas SMARTECH PLUS Instructions And Warnings page 6

6
Note: by selecting "Immergas TA boilers" or "Other TA boilers" only oper-
ation with the "room thermostat" with TA potential-free contact ignition
is possible (mode not available for Wi-Fi Gateway Kit).

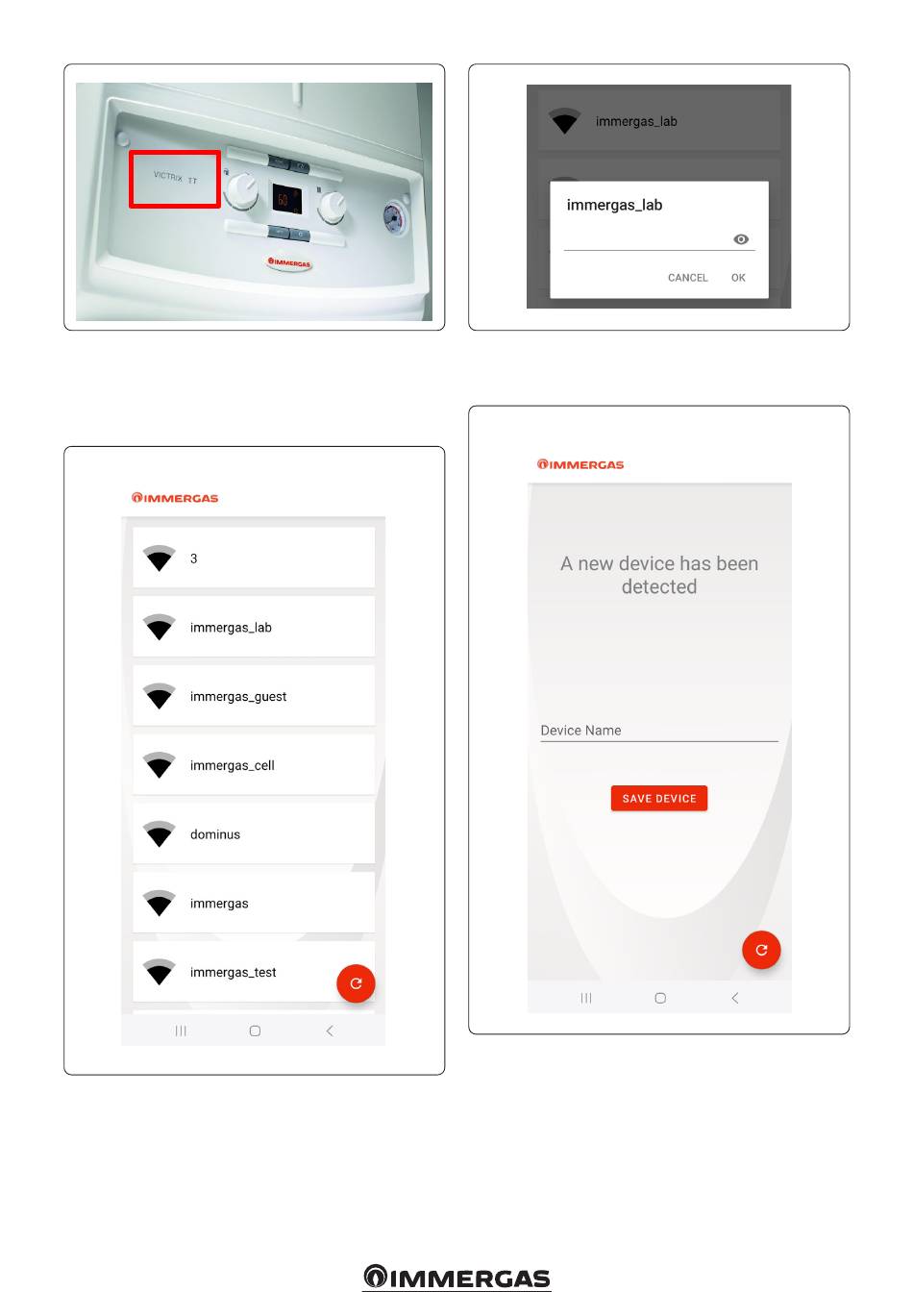

Choose the Wi-Fi network to which you want to connect the Gateway (Fig.
7) (2.4Ghz compatible networks, for further information see Par. 7.6) and
type the correct password (Fig. 8).
7
8
After connecting to the Cloud, the message indicating the presence of a
new device will appear (Fig. 9).
Type the name you want to give to the device then press "SAVE DEVICE"
and complete the installation following the guided procedure.
9
Note: if no device is found, follow the manual setup procedure remembering
the network name and password indicated in (Fig. 10). Press the "CON-
TINUE" button and then on the next screen (Fig.11) press the button at the
bottom left. If a warning appears on the telephone of no Internet connection,
press "maintain WI-FI connection" (Fig. 12).
Note: in the following paragraphs, System means the assembly of a generator,
of a Gateway connected to it, and possibly one or more temperature control
devices managed via the same Gateway.
It is not possible to connect more than one Gateway to the same generator.
6
