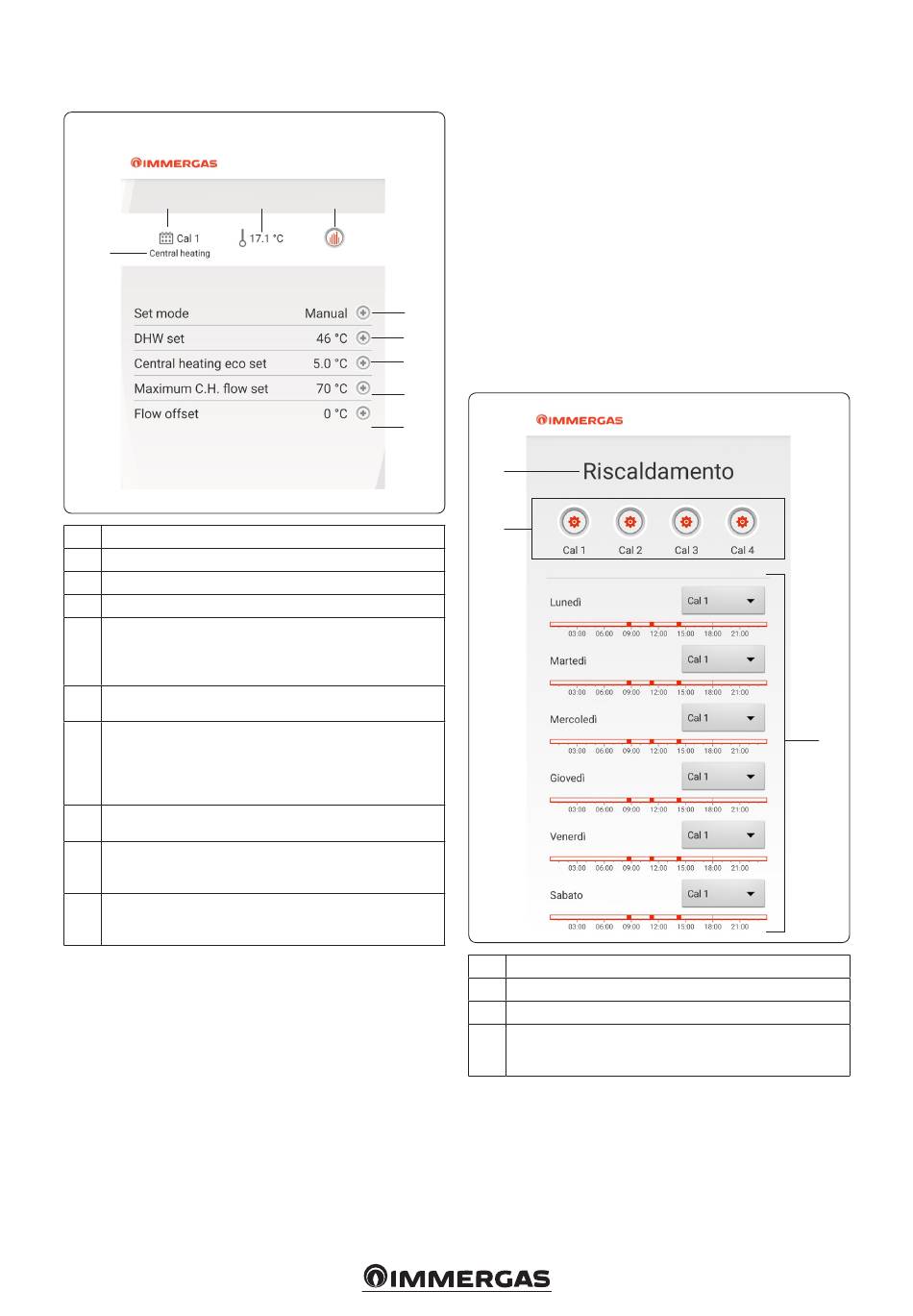

2.5 DESCRIPTION OF "PROGRAMMING" WINDOW (FIG. 16).

Press the "Programming" button (Ref. 10 Fig. 15) to access the "Program-
ming" window (see Fig. 16).
16
1
9
Ref
1 Display of current calendar
2 Display of room temperature
3 Weekly programming setting or change
Setting automatic/manual mode:
- Auto, follows hourly programming set by the user;
4
- Manual, maintains the temperature set by the user with the
knob (Ref. 9, Fig. 15)
DHW temperature setting (not available for generators connected
5
to room thermostat)
- Eco CH setting: room temperature setting outside of the pro-
grammed time slots of the calendar in winter mode (central
6 heating);
- Eco cooling setting: room temperature setting outside of the
programmed time slots of the calendar in cooling mode;
Maximum system flow temperature setting (not available for
7
generators connected to room thermostat)
System flow temperature increase/decrease setting calculated
8 by the system (not available for generators connected to room
thermostat)
Display of operating mode paired with the current calendar:
9 - Central heating, (winter operating mode);
- Cooling, (cooling operating mode);
The fields mentioned above may vary based on the boiler model connected
to the device.
If any Smartech Plus expansion kits are present in the system (multi-zone
system), the complete commands will only be available in the main window
paired with the main zone.
2 3
4
5
6
7
8
Description
2.6 DESCRIPTION OF "WEEKLY PROGRAMMING" WINDOW
(FIG. 17).
Clock and programs.
This window allows you to set the time slots and relative room temperatures.
Access this window by pressing the button (Ref. 3, Fig. 16).
- Time slots. Smartech Plus allows you to set 4 daily calendars, with up
to 4 operating time slots, each with relative room temperatures. Outside
the 4 time slots the system will operate maintaining the temperature set
in the "Set Eco room temperature" parameter (Ref. 6, Fig. 16).
After setting these 4 calendars it is possible to pair them to the various
days of the week (Ref 2, Fig. 17).
- Having entered the menu by pressing "Cal. n. " (Ref. 1, Fig. 17) you access
the window to define the switch on/off intervals (Fig. 18).
- When you've finished programming a calendar, pressing the go back
to previous window button allows you to program any other available
calendars.
Note: the calendars paired with "Central heating" (winter operating mode)
or "Cooling" (cooling operating mode) are different. To view them and to
set them, first select the relative operating mode.
17
3
1
Ref
1 Calendar selection buttons
2 Pairing the calendar to each day of the week
Display of operating mode paired with the current calendar:
3 - Central heating, (winter operating mode);
- Cooling, (cooling operating mode);
In the case of a generator combined with a storage tank unit, it is possible
to set a similar weekly program also for the DHW temperature (refer to
the Paragraphs from 2.9.14 to 2.9.17).
10
Description
