Hobot S6 Pro User Manual

Dual mop polish window cleaning robot
Hide thumbs Also See for S6 Pro:

Advertisement

Quick Links

Download this manual
DUAL MOP POLISH
WI NDO W C LEANING ROBOT
U s e r M a n u a l

Advertisement

loading
Need help?

Need help?

Do you have a question about the S6 Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Hobot S6 Pro

Summary of Contents for Hobot S6 Pro

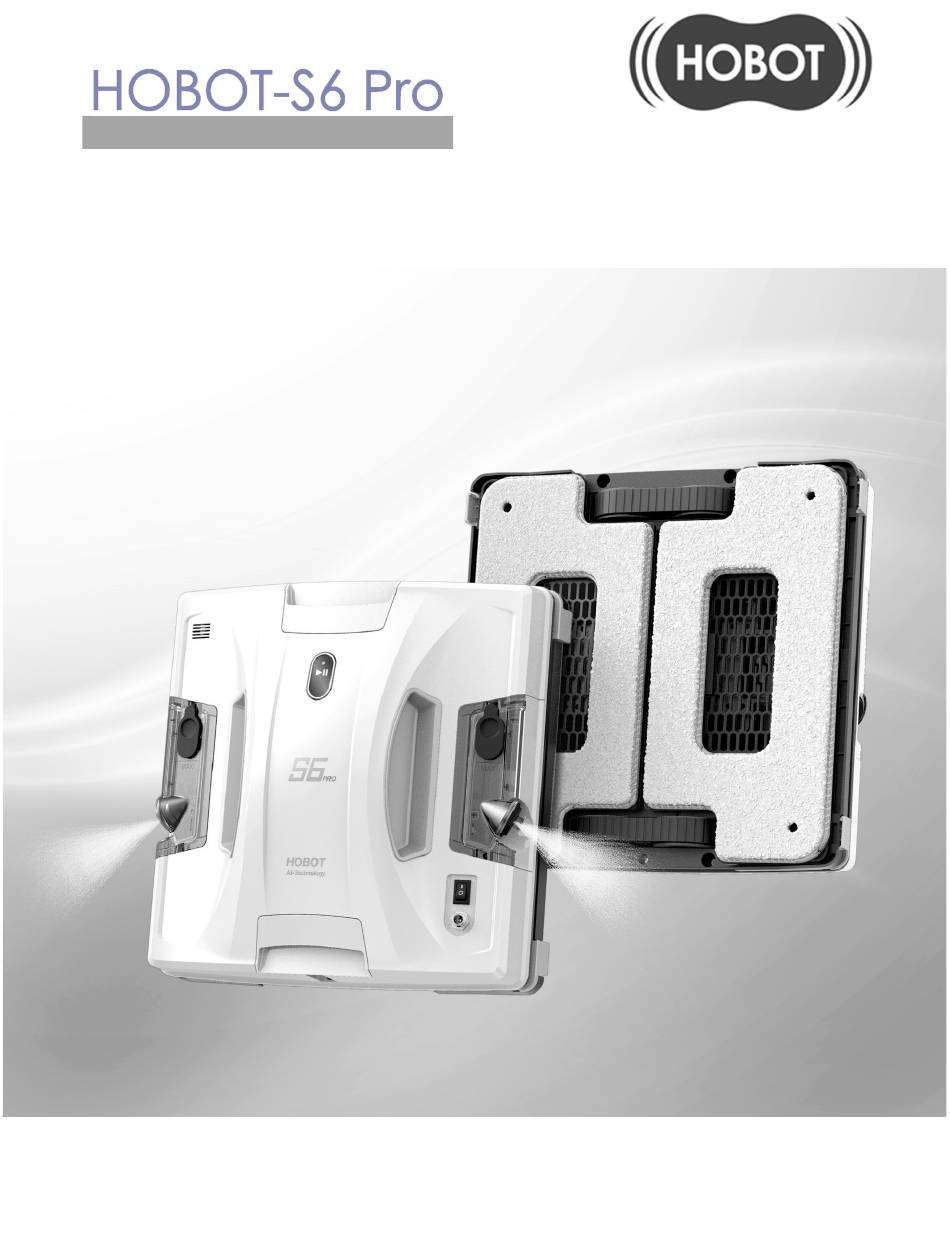

  • Page 1 DUAL MOP POLISH WI NDO W C LEANING ROBOT U s e r M a n u a l...

  • Page 3: Important Safety Precautions

     Do not store HOBOT near oil, combustible sprays or flammable materials.  Do not leave HOBOT unattended while it is connected to the power source.  Product operating temperatures: 0°C ~40°C (32°F ~104°F) ...
  • Page 4 60°C (140°F).  Store HOBOT in a dry and safe place if you won’t be using it for an extended period. Charge the battery every 3 months to preserve battery life.

  • Page 5: Copyright And Trademarks

    ◎Limited Warranty If there are defects in your HOBOT due to faulty materials, poor workmanship, or malfunction within the warranty period from the date of purchase or delivery, please immediately contact a local retailer or local authorized dealer for repairs or replacement.
  • Page 6  Faults or damage caused by:  Negligent use, misuse, abuse or careless operation of HOBOT.  Use of HOBOT which is not in accordance with this manual.  Use of anything other than normal domestic household purposes in the country in which it was purchased.

  • Page 7: Product Description

    HOBOT-S6 Pro incorporates patented dual ultrasonic spray nozzles, Edge-Leakage-Bumper Sensors, and the intuitive HOBOT LEGEE App for easy use.
  • Page 8 ◎ About HOBOT-S6 Pro Vent LED indicator Speaker Start/Stop Remote receiving window Water tank lid Water tank Ultrasonic nozzle Grips Power switch DC power jack Vent Edge-Leakage Caterpillar belt Bumper sensors Cleaning cloth LED indicator Suction area Remote receiving window...

  • Page 9: Specifications

    User Manual × 1 ◎ Instructions for Using HOBOT App Install HOBOT LEGEE App, Connect, and Start Cleaning Scan the QR code on the right or search “HOBOT LEGEE” on the App Store/Google Play to download the App. (1) Turn on the Bluetooth on your phone and launch HOBOT LEGEE App.
  • Page 10 ◎ Remote Control and App Control HOBOT can be controlled from the front and back sides with the remote control or with your smartphone via HOBOT LEGEE App. Orientation Horizontal Vertical (App only) Adjust the water spray amount in accordance to the humidity level.

  • Page 11: Recommended Cleaning Procedures

     For the best window cleaning results, use HOBOT on sunny days or days with low humidity.  To avoid water stains on your window, do not use HOBOT on rainy days or days with high humidity.  In case the window is very dusty or greasy, please wipe a small area clean to allow HOBOT to land on.
  • Page 12 (4) Plug the AC power cord into the socket. 2. Charge HOBOT’s UPS Battery (1) Turn off the power and connect HOBOT to a power source. (2) LED Indicator turns orange while charging and turns green when charging is completed.

  • Page 13: Uninterruptible Power System (Ups)

    (1) The UPS provides emergency power supply when a power outage strikes. The backup time of the UPS is 20 minutes. (2) HOBOT will stop automatically, flash red and blue light, and play audio alert. Please remove HOBOT from the window as soon as possible. Please refer to FAQ Q2 for more information.

  • Page 14: Cleaning And Maintenance

    In case the cloth is tangled with the belt, switch off the power to pull the cloth out. Care Frequency: When HOBOT is skidding and after changing the cleaning clothes. 3. Replace the Water Tank (1) Remove the screws with a Phillips screwdriver.

  • Page 15: Led Indication

    Then install the new ultrasonic nozzle by pressing the edge of the silicone ring gently. (5) Put the water tank back into HOBOT. Care Frequency: when the ultrasonic nozzle is clogged and cannot spray water. ◎ LED Indication...

  • Page 16: Frequently Asked Questions (Faq)

    ◎Frequently Asked Questions (FAQ) Charging UPS battery. Store HOBOT in a dry and safe place if you won’t be using it for an extended period. Charge the battery every 3 months to preserve battery life. If the battery cannot be fully charged (green light on) after 3 to 4 hours, please contact a local retailer or an authorized dealer for battery replacement.
  • Page 17 (1) Refer to FAQ Q2 to take down HOBOT. (2) Change the cleaning clothes and clean the caterpillar belts. (3) Place back HOBOT at least 10cm away from the window edge and press auto cleaning mode to continue. Please avoid using HOBOT on windows with flat sashes or thin window sealants.
  • Page 18 (3) Replace the spraying nozzle or the water tank after you have tried step (1) and (2). HOBOT moves in opposite direction when the user is facing the cleaning clothes and using the physical remote control. When HOBOT is between two reflective surfaces, the signal of the remote control might be interfered and cause false detection.
