T1BVT4D

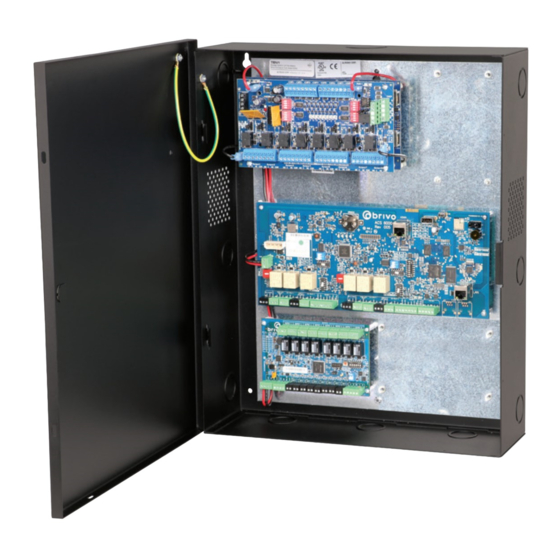

4 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove1 enclosure with TBV1 Altronix/Brivo backplane
- One (1) Tango1B - PoE Driven Power Supply with
Lithium Battery Backup
- One (1) ACMS8CB - Dual Input PTC Access Power Controller
T1BV34SD
4 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove1 enclosure with TBV1 Altronix/Brivo backplane
- One (1) AL600ULXB - Power Supply/Charger
- One (1) ACM4CB - PTC Access Power Controller
- One (1) VR6 - Voltage Regulator
T2BV78SD
8 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with TBV2 Altronix/Brivo backplane
- One (1) AL1024ULXB2 - Power Supply/Charger
- One (1) ACMS8CB - Dual Input PTC Access Power Controller
- One (1) PDS8CB - Dual Input PTC Power Distribution Module
- One (1) VR6 - Voltage Regulator
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TBVKD_110221
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
Access & Power Integration
T2BV778SD
8 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with TBV2 Altronix/Brivo backplane
- Two (2) AL1024ULXB2 - Power Supply/Chargers
- One (1) ACMS8CB - Dual Input PTC Access Power Controller
- One (1) PDS8CB - Dual Input PTC Power Distribution Module
- Two (2) VR6 - Voltage Regulators
T3BV7716SD
16 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove3 enclosure with TBV3 Altronix/Brivo backplane
- Two (2) AL1024ULXB2 - Power Supply/Chargers
- Two (2) ACMS8CB - Dual Input PTC Access Power Controllers
- Two (2) PDS8CB - Dual Input PTC Power Distribution Modules
- Two (2) VR6 - Voltage Regulators
- One (1) RSB2 - Rocker Switch Bracket with
Two (2) Rocker Switches (Not evaluated by UL)
Advertisement
Related Manuals for Brivo T1BVT4D
Summary of Contents for Brivo T1BVT4D
- Page 1 8 Door Kit with PTC Outputs Fully assembled kit includes: Fully assembled kit includes: - Trove1 enclosure with TBV1 Altronix/Brivo backplane - Trove2 enclosure with TBV2 Altronix/Brivo backplane - One (1) Tango1B - PoE Driven Power Supply with - Two (2) AL1024ULXB2 - Power Supply/Chargers...
-
Page 2: Configuration Chart
Overview: Altronix/Brivo Trove kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed Altronix power supply/chargers and sub-assemblies. These kits also accommodate various combinations of Brivo boards for up to sixteen (16) doors in a single enclosure. Configuration Chart:... - Page 3 1. Align the Brivo board on the backplane to match the boards’ mounting holes with corresponding pems. 2. Fasten 4/40 - 5/8” Metal Spacers (provided) to pems that match the hole pattern for Brivo board (Fig. 2, 2a, pg. 3).
- Page 4 1. Align the Brivo board on the backplane to match the boards’ mounting holes with corresponding pems. 2. Fasten 4/40 - 5/8” Metal Spacers (provided) to pems that match the hole pattern for Brivo board (Fig. 3, 3a, pg. 4).
- Page 5 1. Align the Brivo board on the backplane to match the boards’ mounting holes with corresponding pems. 2. Fasten 4/40 - 5/8” Metal Spacers (provided) to pems that match the hole pattern for Brivo board (Fig. 4, 4a, pg. 5).
- Page 6 1. Align the Brivo board on the backplane to match the boards’ mounting holes with corresponding pems. 2. Fasten 4/40 - 5/8” Metal Spacers (provided) to pems that match the hole pattern for Brivo board (Fig. 5, 5a, pg. 6).
- Page 7 1. Align the Brivo board on the backplane to match the boards’ mounting holes with corresponding pems. 2. Fasten 4/40 - 5/8” Metal Spacers (provided) to pems that match the hole pattern for Brivo board (Fig. 6, 6a, pg. 7).
- Page 8 T1BVT4D and T1BV34SD (Trove1) Enclosure Dimensions (H x W x D approximate): 18” x 14.5” x 4.625” (457mm x 368mm x 118mm) 14.5” (321.3mm) 7.25” (184.2mm) 1.45” (36.8mm) 1.95” (49.5mm) 4.5” (114.3mm) 13.0” (330.2mm) 1.25” (31.8mm) 1.25” (31.8mm) 1.5” (38.1mm) 1.5”...
- Page 9 1.5” (38.1mm) 6.25” (158.8mm) 19.80” (502.9mm) 1.25” (31.8mm) 2.00” (50.8mm) 0.85” (21.6mm) 2.00” (50.8mm) 1.00” (25.4mm) 1.25” (31.8mm) 1.25” (31.8mm) 2.00” (50.8mm) 2.00” (50.8mm) 5.25” (133.4mm) 7.00” (177.8mm) 5.25” (133.4mm) - 9 - Trove Brivo PTC ULXB Kits Installation Guide...
- Page 10 1” Conduit 1” Conduit 3/4” Conduit 3/4” Conduit 1” Conduit 3/4” Conduit 1.25” (31.8mm) 7.06” (179.3mm) 3/4” Conduit 1” Conduit 1.25” (31.8mm) 8.75” (222.3mm) 8.62” (219mm) 8.75” (222.3mm) 2” (50.8mm) - 10 - Trove Brivo PTC ULXB Kits Installation Guide...
- Page 11 Notes: - 11 - Trove Brivo PTC ULXB Kits Installation Guide...
- Page 12 Notes: Brivo Inc. is not responsible for any typographical errors. 7700 Old Georgetown Rd #300 | Bethesda, MD 20814 USA phone: +1 866.692.7486 | email: customercare@brivo.com | www.brivo.com IITrove Brivo PTC ULXB Kits K02U - 12 - Trove Brivo PTC ULXB Kits Installation Guide...
