Infra Red
Thermostatic Wall Mixer
HTMWMBCP, HTMWMMCP,
HTMWMBRS & HTMWMMRS
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
In this procedure document we have endeavoured to make the
information as accurate as possible
Tel: 01889 272 180
We cannot accept any responsibility should it be found that in
Fax: 01889 272 181
any respect the information is inaccurate or incomplete or
email: sales@intatec.co.uk
becomes so as a result of further developments or otherwise
web: www.intatec.co.uk
© Intatec Ltd. 2016
Advertisement
Table of Contents
Related Manuals for intatec HTMWMBCP
Summary of Contents for intatec HTMWMBCP
- Page 1 We cannot accept any responsibility should it be found that in Fax: 01889 272 181 any respect the information is inaccurate or incomplete or email: sales@intatec.co.uk becomes so as a result of further developments or otherwise web: www.intatec.co.uk © Intatec Ltd. 2016...
-
Page 2: Table Of Contents
Technical Data Components - Fixed Spout Components - Removable Spout Dimensions Installation Battery Replacement Installation Connections Operation Trouble Shooting Re-calibration Cartridge Removal Aftercare Removing Spout and Disinfection System Flushing Procedure Sterilization Process TMV3 Installation Instructions Guarantee © Intatec Ltd 2016... -
Page 3: Introduction
Product Range HTMWMBCP - HTM safe touch infra red thermostatic wall mounted tap battery operated. HTMWMMCP - HTM safe touch infra red thermostatic wall mounted tap mains operated. -
Page 4: Preparation For Installation

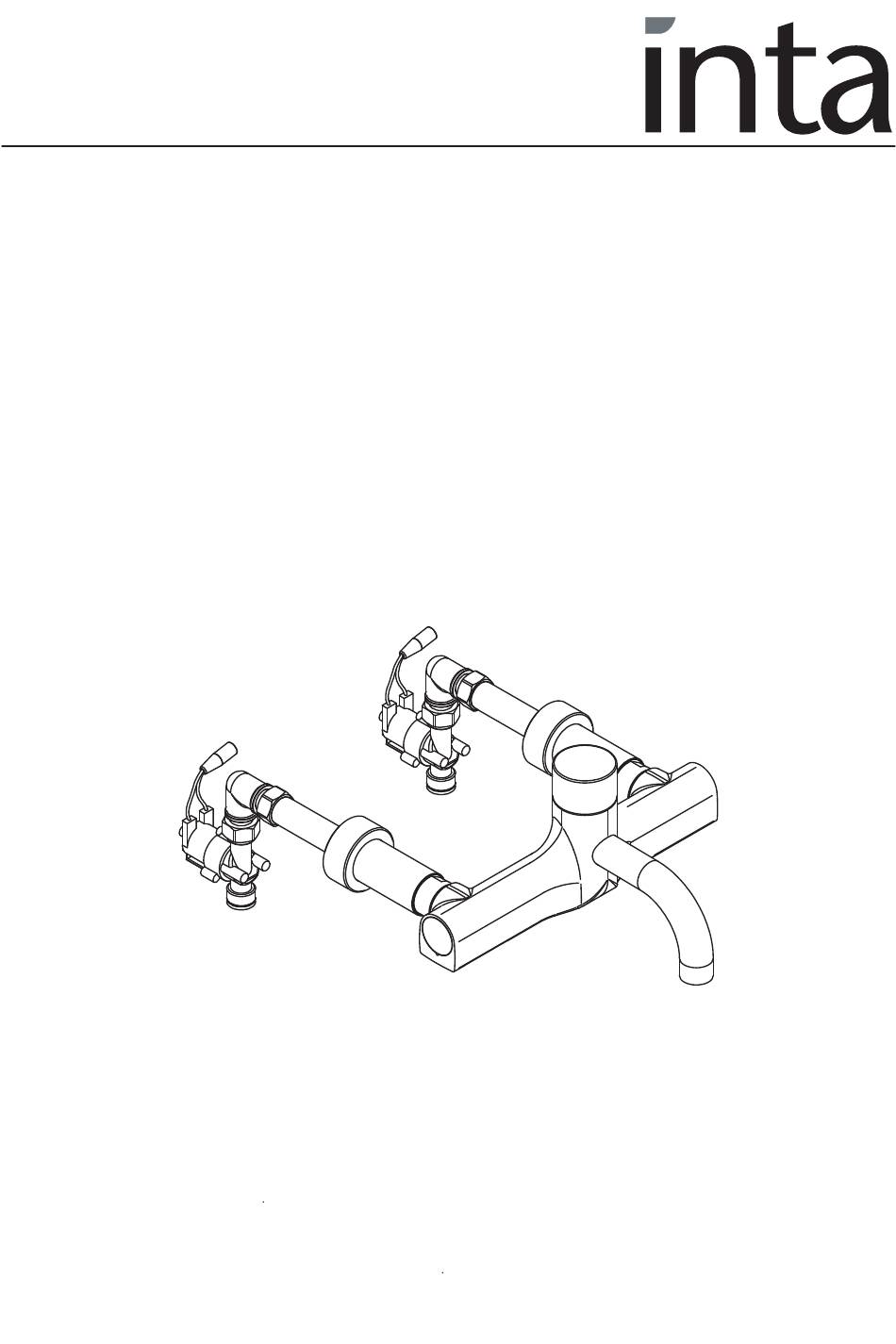

The tap is supplied for wall mounting as shown. Flush the water supply pipes thoroughly prior to installation - see page 13. Do not allow debris, PTFE tape or any metal particles to enter the mixer. Components Fixed Spout © Intatec Ltd 2016... -
Page 5: Components Removable Spout
Components Removable Spout © Intatec Ltd 2016... - Page 6 Infra Red Sensor Swivel Nut Mounting Bracket Hot Water Insulator Battery Box Battery Cold Water Inlet Assembly including 5 l/m flow regulator Transformer Backnut Components Removable Spout Item Description Item Description Body Spout Retaining Screw Spout ‘O’ Ring © Intatec Ltd 2016...
-
Page 7: Dimensions
Sealing Tail Assembly is connected securely into the hot washer water inlet of the tap body. • Screw the tailpiece (7) into the hot water inlet of the tap, left hand side when facing the tap. © Intatec Ltd 2016... -
Page 8: Battery Replacement
5. Turn on the water supplies and cover the sensor window with a finger until the water turns off automatically 6. Remove your finger and the mixer enters the auto programme sequence. 7. The mixer is now ready for use. © Intatec Ltd 2016... -
Page 9: Installation Connections
Operation Hot Supply Cold Supply 3cm to 8cm Sensing Range As the sensor is activated the flow of water will commence, the mixer is factory set to deliver water at a pre-set maximum temperature of 41˚C. © Intatec Ltd 2016... -
Page 10: Trouble Shooting
1 bar. No flow of water. Ensure the mixer has not fail-safed, and check that there is water flow to the mixer and the service valves are not closed - see exploded drawing. © Intatec Ltd 2016... -
Page 11: Re-Calibration
2 The thermostatic cartridge is a single piece construction and should be unscrewed anti-clockwise from the mixer body using a suitably sized spanner. 3 When re-installing the cartridge into the mixer body, it should be tightened to a maximum torque of 18 Nm © Intatec Ltd 2016... -
Page 12: Aftercare
• Ensure the isolation valve in both supplies to tap are in the closed position to prevent water flow and potential flooding. Internal bore in flow straightener © Intatec Ltd 2016... - Page 13 • Fit and re-tighten the grub screw (24). • Open the isolation valve in both supplies to the tap. • Only use genuine spare parts, the full list is available on request by ringing the Technical Helpline number on the back page. © Intatec Ltd 2016...
-
Page 14: System Flushing Procedure
6 - Attach hose connector 7 - Open the isolating ball valve to allow water to flush the hot 8 - Flushing supply system and hot side (hose not supplied) of the tap © Intatec Ltd 2016... -
Page 15: Sterilization Process
2 - Ensure both isolation valves are position in the closed position Not supplied 3 - Remove the cover from each inlet 4 - Remove hot and cold inlet plugs of the tap using a 10mm Allen key © Intatec Ltd 2016... - Page 16 By carrying out the above procedure you are sterilizing the complete tap with hot water © Intatec Ltd 2016...
-
Page 17: Technical Specification
Technical Specification above and conditions on which the approval is granted i.e. verify supply temperatures, supply pressures, risk assessments etc. © Intatec Ltd 2016... - Page 18 10°C above the commissioned mixed water discharge temperature. 11. This Thermostatic Mixing Valve must not be subject to any extreme temperature variations either during the installation or under normal operating conditions. © Intatec Ltd 2016...
- Page 19 The final temperature found during the test should not exceed the values quoted in table 2. 5.6 Record all the equipment used during the commissioning. Table 2 Application Maximum Hot Water Temperature Wash Hand Basin 43˚C © Intatec Ltd 2016...
-
Page 20: In Service Testing
2˚C, the tap must be serviced. 5. After a period of between 12 and 15 weeks after commissioning, carry out the sequence of tests as described in 1, 2, 3 and 4 of this section. © Intatec Ltd 2016... - Page 21 9. On the inlet strainers on both the hot and cold water supply inlet can be removed for cleaning. 10. The built in check valves can be accessed in a similar way to the filters to ensure freedom and correct seating. Please leave this Manual for the User © Intatec Ltd 2016...
-
Page 22: Guarantee
Guarantee Intatec guarantees the product to be free from defects in materials and workmanship at the date of purchase. If the product is determined to be defective at the date of original purchase due to improper materials or workmanship and you inform us of this within the prescribed warranty... - Page 23 Notes: © Intatec Ltd 2016...
- Page 24 Please leave this Manual for the User To activate your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk © Intatec Ltd 2016 17-10-16...
