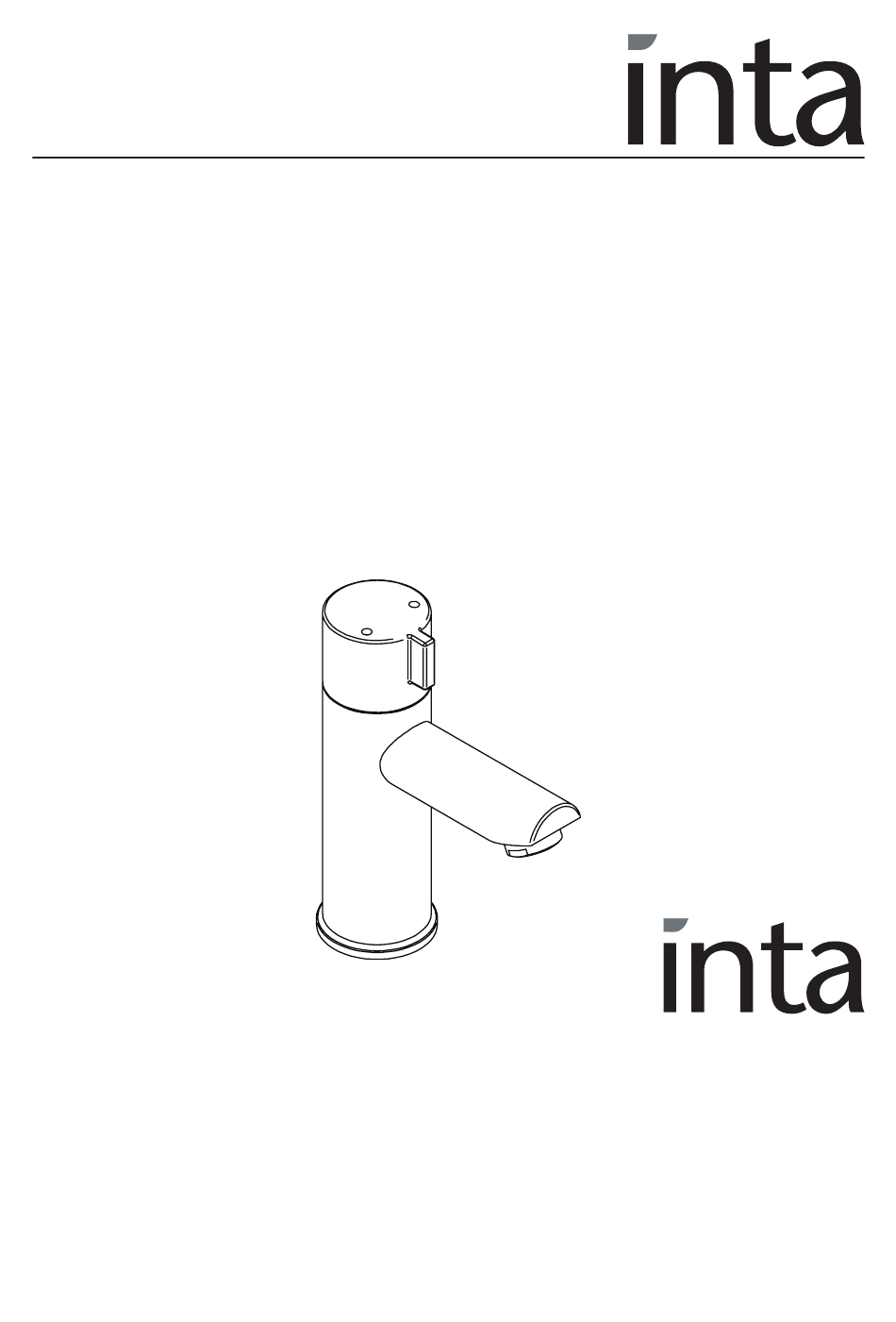

Thermostatic Timed Flow Non Concussive
Basin Mounted Mixer Tap with
Temperature Adjustment - NC250CP
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
In this procedure document we have endeavoured to make the
Tel: 01889 272 180
information as accurate as possible.
Fax: 01889 272 181
We cannot accept any responsibility should it be found that
email: sales@intatec.co.uk
in any respect the information is inaccurate or incomplete or
web: www.intatec.co.uk
becomes so as a result of further developments or otherwise.
© Intatec Ltd 2023
Advertisement
Table of Contents
Related Manuals for intatec inta NC250CP
Summary of Contents for intatec inta NC250CP
- Page 1 Fax: 01889 272 181 We cannot accept any responsibility should it be found that email: sales@intatec.co.uk in any respect the information is inaccurate or incomplete or web: www.intatec.co.uk becomes so as a result of further developments or otherwise. © Intatec Ltd 2023...
- Page 2 Inta thermostatic tap until the missing parts have been obtained. Components Item Qty Component Base plate M8 retaining screw Sealing ‘O’ ring Sealing washer Horse shoe washer Securing nut Sealing washer Connector Check valves © Intatec Ltd 2023...
-
Page 3: General Information
The hot supply must be connected to the left hand side and the cold to the right hand side of the mixer when viewed from the front - see attached diagram. © Intatec Ltd 2023... - Page 4 An occasional wipe with a mild washing-up liquid on a soft damp cloth followed by a thorough rinsing is all that is required. Do not use an abrasive or chemical household cleaner as this may cause damage. © Intatec Ltd 2023...
-
Page 5: Servicing Instructions
Nozzle Refit the two temperature stops A & B and follow the calibration procedure (page 5). Re-assemble the other components in the reverse order and turn on the water supplies. Check the mixer for correct operation. © Intatec Ltd 2023... - Page 6 (B) as shown in Fig 2. Refit the control knob in the reverse order. Check calibration temperature. PLEASE NOTE THAT ONCE CALIBRATED, THE SECURITY SETTING WILL ONLY BE 41˚C UNDER THE SUPPLY CONDITIONS USED FOR CALIBRATION. © Intatec Ltd 2023...
-
Page 7: Problem Solving
Dripping when turned off minutes, if the drip persists the cartridge may require servicing. Make sure the pressures are within specification The flow time is too long or short Debris may be hindering the operation, clean the cartridge © Intatec Ltd 2023... -
Page 8: Technical Specification
This thermostatic tap mixer has been independently tested by NSF and certified as meeting the requirements of the NHS D08 specification under the TMV3 Scheme as being suitable for use on the following; Code Application Range HP-W Basin High Pressure © Intatec Ltd 2023... -
Page 9: Installation
10. It is essential that this product should not be installed in situations where there is a possibility of the tap being deprived of water or where demands for water are greater than the actual stored supplies. © Intatec Ltd 2023... - Page 10 5.1 Using the lever turn to the maximum hot setting of the tap, the mixed water temperature should be pre-set (see page 3). 5.2 Measure and record the temperature of the hot and cold water connections to the tap. © Intatec Ltd 2023...
-
Page 11: In-Service Testing
Isolate the cold water supply to the mixing valve and monitor the mixed water temperature. e) Record the maximum temperature achieved as a result and the final temperature (the final temperature should not exceed the values quoted in table 2) f) Record the equipment used during these tests. © Intatec Ltd 2023... - Page 12 9. On the inlet strainers on both the hot and cold water supply inlet can be removed for cleaning. 10. The built in check valves can be accessed in a similar way to the filters to ensure freedom and correct seating. © Intatec Ltd 2023...
- Page 13 Notes © Intatec Ltd 2023...
- Page 14 Notes © Intatec Ltd 2023...
- Page 15 Notes © Intatec Ltd 2023...
- Page 16 To activate your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk E & O.E 15-09-23 © Intatec Ltd 2023...
