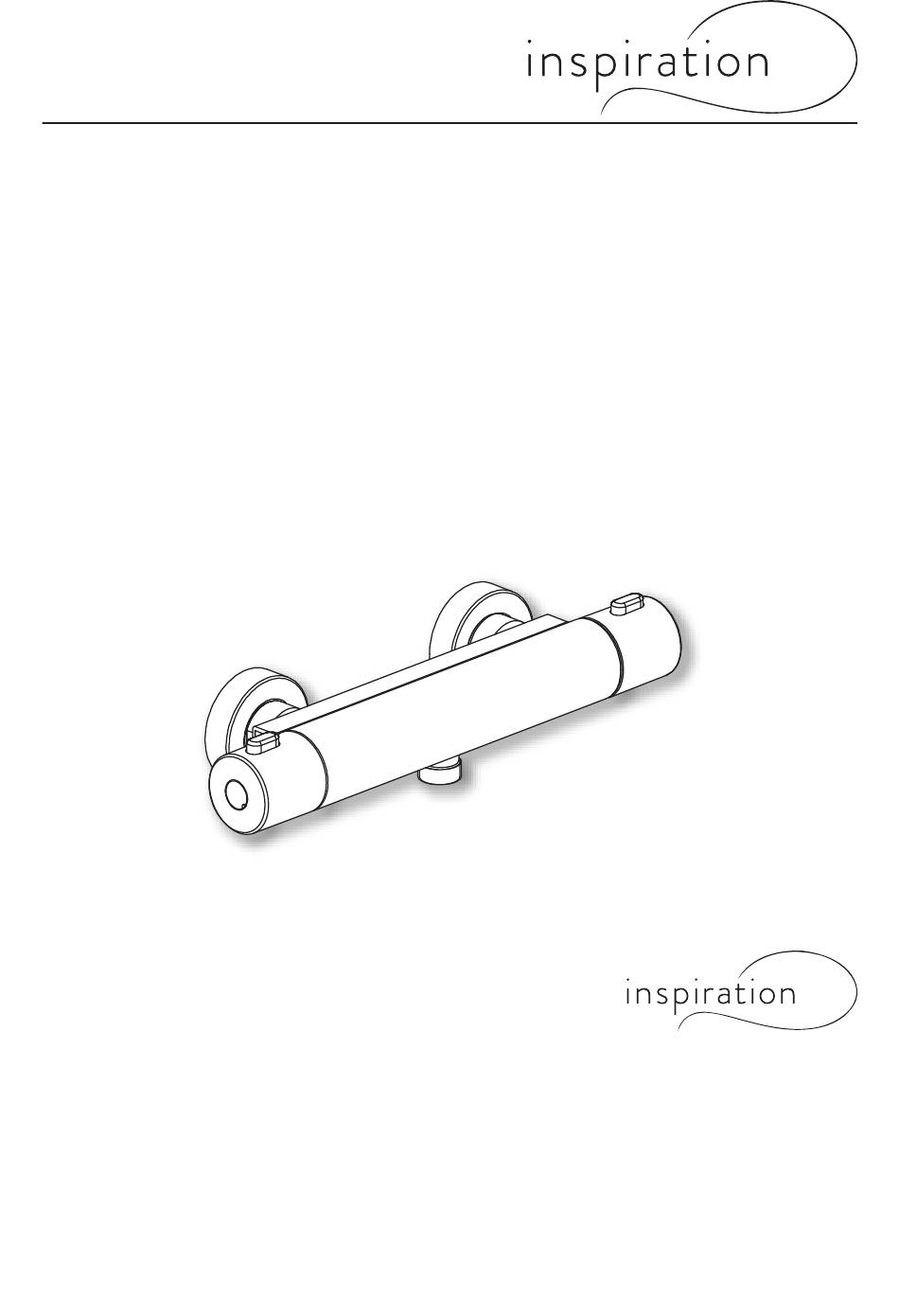

ENZO
Single Outlet Shower
IX100010CP, IX100020CP & IX100025CP
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
n this procedure document we have endeavoured to make the
I
information as accurate as possible.
Tel: 01889 272 180
We cannot accept any responsibility should it be found that
email: sales@intatec.co.uk
in any respect the information is inaccurate or incomplete or
web: www.intatec.co.uk
becomes so as a result of further developments or otherwise.
© Intatec Ltd 2024
Advertisement
Table of Contents
Related Manuals for intatec inspiration ENZO IX100010CP
Summary of Contents for intatec inspiration ENZO IX100010CP
- Page 1 Tel: 01889 272 180 We cannot accept any responsibility should it be found that email: sales@intatec.co.uk in any respect the information is inaccurate or incomplete or web: www.intatec.co.uk becomes so as a result of further developments or otherwise. © Intatec Ltd 2024...
- Page 2 ENZO shower valve until the missing parts have been obtained. The shower valve is supplied with the two connectors, containing the filters and check valves, and the union nuts assembled to the body. © Intatec Ltd 2024...
-
Page 3: Technical Data
This type of installation must be carried out in accordance with Part G of the Building Regulations. Whilst pressures are theoretically equal (balanced) most unvented hot systems have a pressure reducing valve on the incoming cold water prior to the hot water storage vessel. © Intatec Ltd 2024... - Page 4 Pumps automatically. Where this is not available a Cold Supply negative head kit may be required to operate direct from Mains the pump. Please consult the pump manufacturer’s installation requirements. © Intatec Ltd 2024...
- Page 5 The cold water flow rates may be much greater as they are generally unrestricted from the mains cold water supply. To ensure relatively balanced flow rates, we recommend that a pressure reducing valve or 6 l/min flow regulator is fitted in the cold water supply pipe. © Intatec Ltd 2024...
-
Page 6: Gravity System
If the cold supply to the shower is direct from the cold water mains and the hot water supply is gravity fed from the cold water cistern via the hot water cistern you MUST fit a pressure reducing valve or a 6 l/min flow regulator. © Intatec Ltd 2024... -
Page 7: Site Preparation
• Ensure there are no joint leaks before finishing the wall. • Isolation valves must be fitted in an accessible position to both the hot and cold supplies should the valve need to be isolated in the future for servicing. © Intatec Ltd 2024... -
Page 8: Fitting The Brackets
• Turn on the water supplies and check that all joints are water tight. Notes: The installation shown is for the pipework embedded in to the wall or for a stud wall. © Intatec Ltd 2024... - Page 9 • When the shower valve is in use the water temperature can only be increased by pressing the button on the control knob and rotating the knob. PLEASE NOTE THAT ONCE CALIBRATED, THE SECURITY SETTING WILL ONLY BE 38˚C UNDER THE SUPPLY CONDITIONS USED FOR CALIBRATION. © Intatec Ltd 2024...
-
Page 10: Cartridge Replacement
• Refit the temperature stop ring (7) onto the splined section of the cartridge and align with the centre mark on top of the valve. • Refit the control knob assembly in the reverse order ensuring that 38˚C on the handle is in line with the centre mark on the body. © Intatec Ltd 2024... - Page 11 Valves should be serviced annually which should include the following: 1 Cleaning the independent inlet strainers. 2 Cleaning and servicing the thermostatic cartridge - the complete cartridge must be removed. © Intatec Ltd 2024...
-
Page 12: Problem Solving
Ensure the valve has not fail-safed, and check that there is hot and cold water flow to the valve. Ensure the check valves are not closed Shower is stiff to operate Build-up of limescale on flow control cartridge - service and de-scale © Intatec Ltd 2024... - Page 13 Rise Rail - Dimensions - IX100010CP ½” Connection Riser Rail Handset Wall Bracket Hose ½” Flow Regulator ½” Sealing Washer ½” Connection The diagram is for illustration purposes only as Inta reserves the right to change the design without notice © Intatec Ltd 2024...
- Page 14 Using the longer screw (5) provided temporarily secure the wall bracket (1) to the wall. Slide the top wall bracket (1) onto the riser rail and locate onto the wall towards the upper end of rail, approximately 50mm from the end, ensuring the rail is vertical. © Intatec Ltd 2024...
- Page 15 Using the sealing washers fit the flow regulator (13) to one end of the flexible hose and the handset (10) to the other. Connect the flexible hose to the shower valve. Turn on the shower valve and check joints for leakage. © Intatec Ltd 2024...
- Page 16 Rise Rail - Dimensions - IX100020CP & IX100025CP Note: drawing for illustration purposed only © Intatec Ltd 2024...
- Page 17 Rise Rail - Components - IX100020CP & IX100025CP Item Component Item Component Bottom wall bracket M4 x 70 screw & plug Top wall bracket Rail cap Cover Rail Flexible tidy Handset Handset holder Sealing washer M4 x 30 screw & plug Flexible hose © Intatec Ltd 2024...
- Page 18 Locate the upper bracket onto the wall towards the upper end of rail, approximately 50mm from the end, ensuring the rail is vertical. Mark round the upper wall brackets with a re-moveable marker onto the wall. Slot Anti-Rotational Lug © Intatec Ltd 2024...
- Page 19 Ensure the sealing washers (1 1) are inserted into both ends of the flexible hose (12) and connect the hose to the shower valve and the handset (10). Turn on the shower valve and check joints for leakage. © Intatec Ltd 2024...
-
Page 20: Supply Conditions
The thermostatic shower valve has been independently tested by NSF and certified as meeting the requirements of the BS EN 1 1 1 1:2017 and under the TMV2 Scheme as being suitable for use on the following designations. Shower © Intatec Ltd 2024... -
Page 21: Recommended Outlet Temperatures
Failure to make provision within the pipe sizing etc. will affect the performance of the shower valve. © Intatec Ltd 2024... - Page 22 10˚C above the commissioned mixed water discharge temperature. 13. The fail-safe thermostatic shower valve must not be subject to any extreme temperature variations either during the installation or under normal operating conditions. © Intatec Ltd 2024...
- Page 23 The final temperature found during the test should not exceed the values quoted. 4.7 Record all the equipment used during the commissioning. 4.8 The mixed water temperature at the terminal fitting must never exceed 2˚C above the set temperature. © Intatec Ltd 2024...
-
Page 24: In Service Testing
• The sensing part of the thermometer probe must be fully submerged in the water to be tested. • Any thermostatic shower that has been adjusted or serviced must be re-commissioned and re-tested in accordance with the manufacturers’ instructions © Intatec Ltd 2024... - Page 25 Please leave this Manual for the User To activate your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 email: sales@intatec.co.uk web: www.intatec.co.uk E & O.E 14-10-24 © Intatec Ltd 2024...
