Summary of Contents for The Splash Lab TSL.47

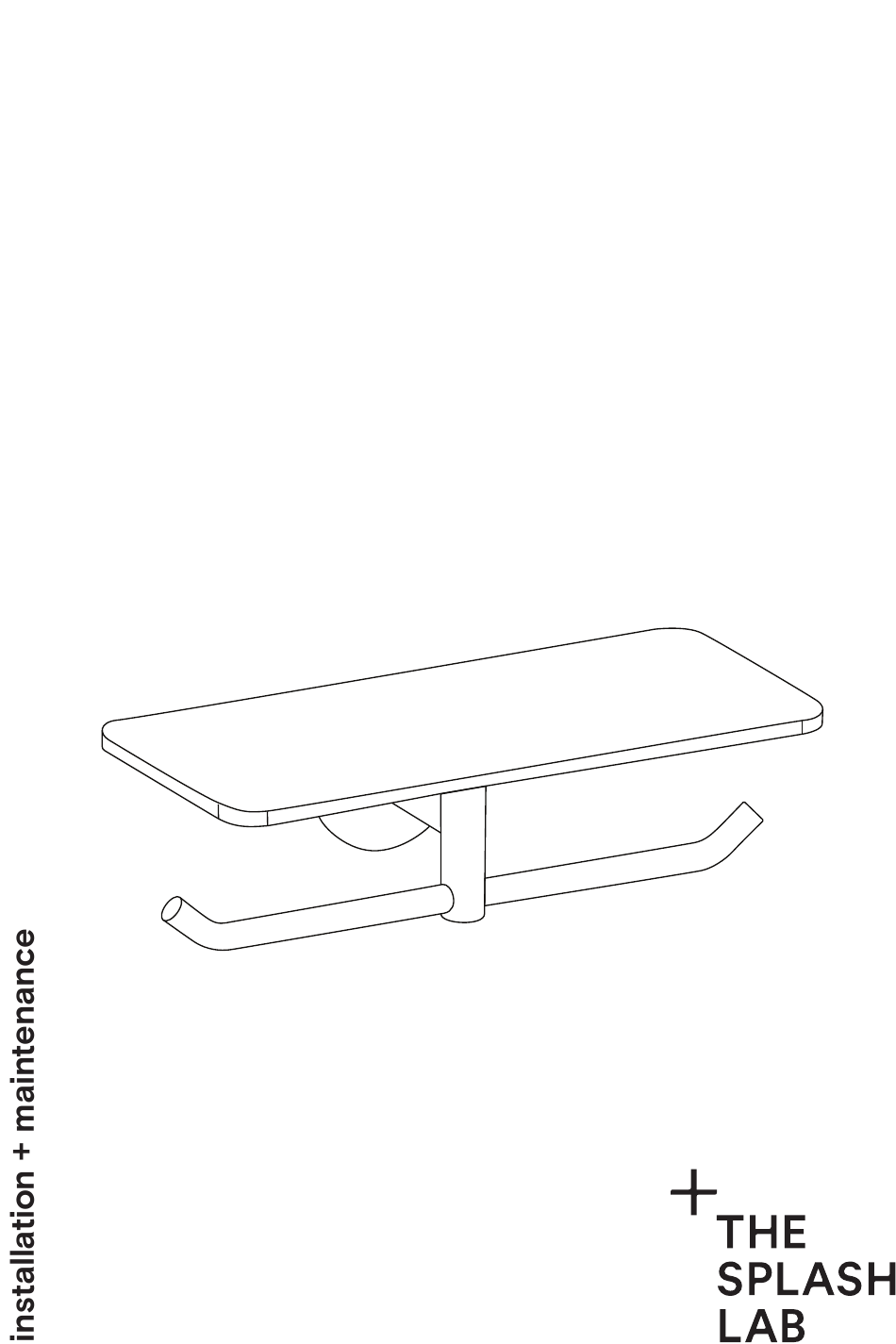

- Page 1 TSL.47 toilet roll holder with shelf...
- Page 2 contents Box contents Technical data Before you install How to install Cleaning Maintenance Refilling Diagram Warranty Contact details TSL .47 TOILET ROLL HOLDER MANUAL...
-
Page 3: Box Contents
box contents Wall mount body* Shelf Fixing mount *unit ships assembled. Hardware not included TSL .47 TOILET ROLL HOLDER MANUAL... -
Page 4: Technical Data
technical data Finishes CS (Brushed satin stainless steel) Weight 2lb 6oz Stainless steel grade 304AISI Stainless steel Capacity 2 rolls (max size - 51/8/” diameter x 4 5/16” width x 13/8” diameter core) Warranty 1 year limited warranty TSL .47 TOILET ROLL HOLDER MANUAL... -
Page 5: Before You Install
before you install Location The roll holder is to be fixed to a firm wall surface, with fixings appropriate to the wall substrate. FRONT SIDE 1-1/16" 1/2" 5-3/16" 0.63in 3-3/8" 0.47in 5.12in 0.31in 2.36in 1-1/16" 4.00in 5-3/16" 5.35in Ø 0.79in Ø... -
Page 6: How To Install
how to install Unscrew the rosette covering the Mark the fixing centers for the fixing mount and position the shelf at three holes in the mount. the desired location on the wall. Attach the mount to the wall using Thread the rosette over the fixing hardware appropriate to the mount and screw on until firmly substrate. -
Page 7: Maintenance
If further information is required, contact The Splash Lab technical team for more detailed stainless steel care guidelines. maintenance The dispenser should be inspected periodically to check that no damage has occurred and that the screws securing the roll holder to the mounting points are tight. -
Page 8: Warranty
Toilet Roll Holder with Shelf 1 year limited warranty If a defect is found in normal use, The Splash Lab. will, at their discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care and cleaning will void the warranty. - Page 9 contact General information info@thesplashlab.com +1 310 410 5008 Technical support info.usa@thesplashlab.com For further contact information visit: www.thesplashlab.com/usa TSL .47 TOILET ROLL HOLDER MANUAL...
