4.4.15 Setting the Origin

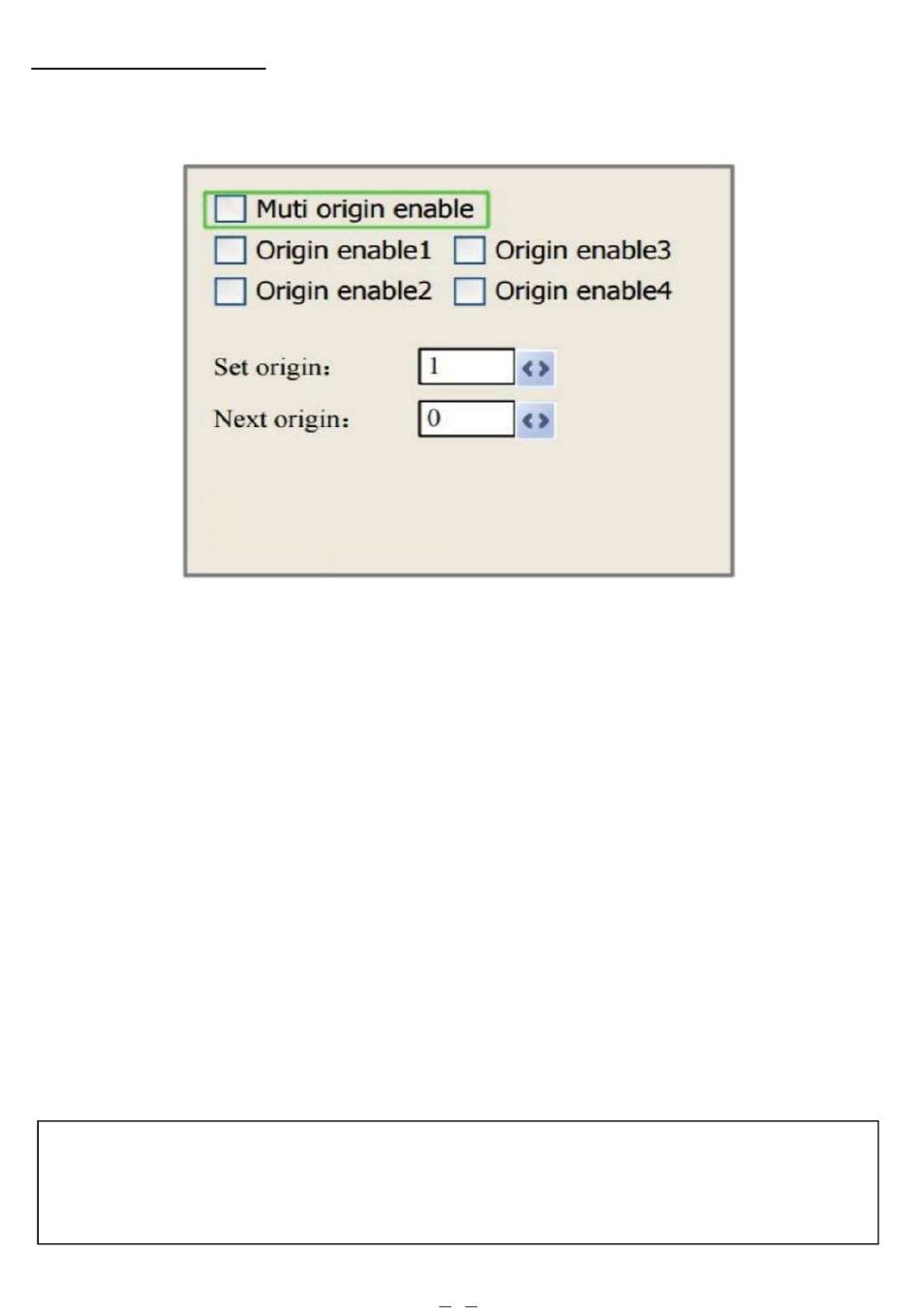

When Origin Set+ is selected, press Enter and the display will show:
Press Fn to select an item. When Multi Origin Enable is selected, press Enter to enable or disable the item. When
enabled, the small box will be red and, when disabled, the small box will be grey. When selecting Set Origin or Next
Origin, push ◄ or ► to select the value. When changing the parameters of Set Origin, remember to press Enter to
validate the change. Parameters will be saved automatically when the interface is closed.
Details of each item are shown below:
• Multiple Origins Enable: Yes or No can be selected. If you select No, the system will use single-origin settings. You
can press Origin and set the origin. If you select Yes, the system will use the multiple-origin settings and Origin on
the keyboard becomes invalid. In this case, the parameter of each origin must be set in the menu as follows.
• Set Origin 1/2/3/4: After the multiple-origin setting is enabled, put the cursor on Set as Origin 1/2/3/4. Press Enter
on the keyboard and the system will take the coordinates as the corresponding ones of the origin 1/2/3/4.
• Next Origin: Users can choose from 0−4, which represent the origins to be used for the next figure. Origin 0 refers
to the origin set by Origin under the single-origin setting. 1−4 represent the origins under the multiple-origin setting.
The next origin can be chosen from origin 1−4 so as to control the starting point of the next job. However, it cannot
be changed to origin 0.
• Origin Enable 1/2/3/4: After the multiple-origin setting is enabled, the four origins can also be individually disabled
and enabled.
The system can use multiple different origins. If you select Take the Original Origin as the Origin, the work started
for each time will use different origins. The rotation order of origin is 1→2→3→4→1→2... If the processing file
is uploaded to the PC and this file selects Take the Current Origin as the Origin, the system will always use the
current origin.
