Magicshine ME 2000 User Manual

ME 2000 USER MANUAL
ACCESSORY/STRUCTURE

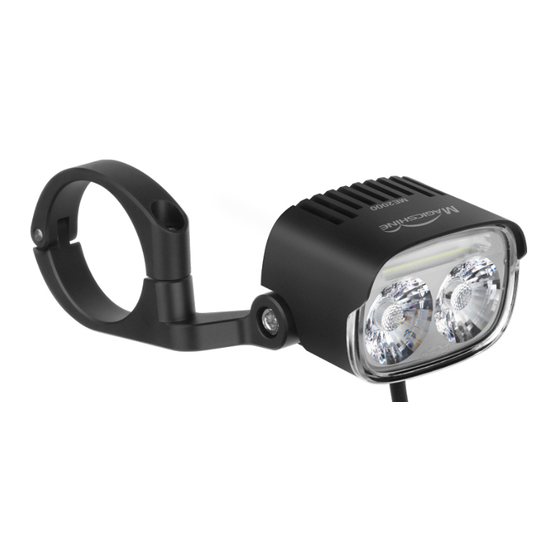

ME 2000
Button and light sensor
Button：For choosing the modes and brightness levels.
Light perception：
Smart light sensor will judge whether open the main light according to the light environment.
Only the DRL will be turned on during the daytime once power on.
Notice:
The light needs to match power with the new e-bike before first using to reach the maximum
light effect.
The light defaults to the minimum power state from the factory setting.
Instructions of power matching :
1. Long press the button on the bottom of the light(Under power off situation)
2. Power on the E-bike
3. Wait the light working from min brightness to max brightness to turn off.
4. Power match successully,power on the E-bike again.
HOW TO INSTALL
1
3
3mm Hex
2
4
INTELLIGENT OPERATION
Mode memory : The light resumes previous mode upon next usage.
The brightness sensor is activated by default, it automatically switches between day time
running light and steady/flash mode.
Power on
Light sensor
HIGH
Day
Notice：The light will remember and keep the same brightness as last using setting when
restart.
MODE AND BRIGHTNESS
MODE
STEADY
NIGHTTIME
FLASH
DAYTIME RUNNING LIGHTS
DRL
DAYTIME
The light can judge the maximum brightness automatically according to the output power of
the motor interface
MOTOR OUTPUT (W) HIGH(LM)
3W
6W
7.2W
9W
18W
24W
The data above is only for reference.
Night
1 x click
1 x click 1 x click
MID LOW
Double-click
Flash
BRIGHTNESS MAX LUMENS
HIGH 100%
MID 50%
LOW 30%
30%
ARE ALWAYS ON
MID(LM) LOW(LM)
300 150
750 350
880 400
1100 550
1800 900
2000 1000
2000
1000
600
600
20
80
170
200
260
450
600
