Magicshine RAY 2600 User Manual

RAY 2600 USER MANUAL
ACCESSORY/STRUCTURE

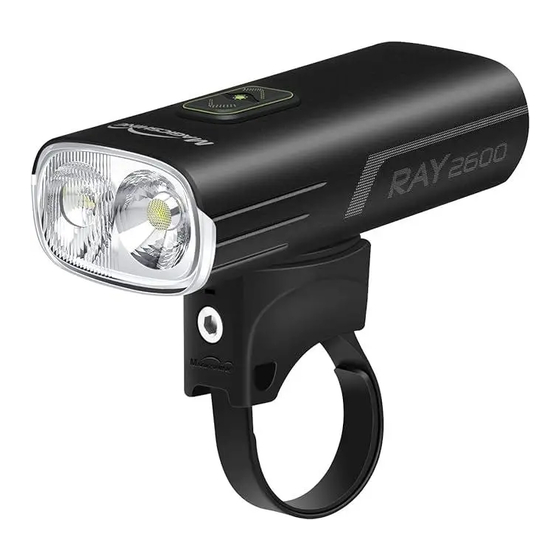

RAY 2600
Gopro mount Aero bar compatible strap
HOW TO INSTALL
1
4
BATTERY INDICATOR
When the device is power-on, the power button light will indicatethe battery level.
When the device is power-off, short press the power button to activate the indicator light
(light will shut down automatically after 2 seconds).
FLASH RED RED
0%-10% 11%-20%
Remote control Handlebar mount
Type-C USB Cable 3mm Hex
2
5
GREEN
21%-100%
FLASH RED
Charging
PHONE CHARGING INSTRUCTION
*External charging cable needs to be purchased additionally
To prevent potential damage from high heat or even fire, it is very important to put the bicycle
light in lock mode and protect the switch from being pressed.
MAGICSHINE will not be held responsible for damages to person or property resulting from a
failure to follow the 'lock' mode instructions.
To lock -
When the light is off, press and hold the power button down for 5 seconds until the indicator
light flashes red.
To unlock -
When the light is locked, press and hold down the power button for 5 seconds until the
indicator light constant red.
SWITCHING THE LIGHTING MODE
3
Hold 1s power button to turn on/off
MODE MEMORY FUNCTION : When you turn the light on, it lights up in the last lighting
mode you used.
MODE SELECTION : In standby mode, press the up/down button at the same time to enter
mode selection. Press the up button to select smart mode(constant blue) or press the down
button to select normal mode(flash blue).
Press the up/down button at the same time to confirm the selection mode.
SMART MODE-LIGHT SENSOR : The light sensor monitors ambient light to adjust light
output accordingly. During daytime, light's output automatically switches to dual beam with
40lumens.When entering a tunnel or shortly after sun down, light's output automatically
switches to original setting within seconds.
SMART MODE-VIBRATION SENSOR : An integrated vibration sensor detects the end of a ride
and automatically turns off the light after 3 minutes. Any further movement will turn the light
back on.
HOW TO RECHARGE
GREEN
Fully charged
Standard charging time
Approx.2.5hrs (18W)
LOCK MODE
Long press to power on/off
1 x click 1 x click 1 x click
1 x click 1 x click 1 x click
1 x click 1 x click 1 x click
1 x click
