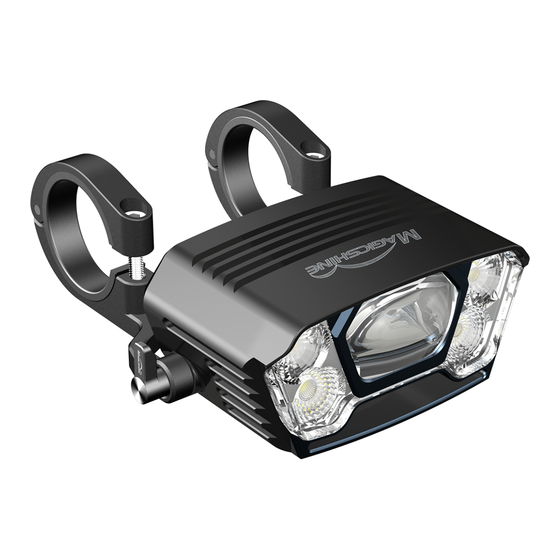

- Page 1 APP PAIRING NAME: M2-B0 MONTEER 12000 USER MANUAL...
- Page 2 WARNING DANGER 1. To prevent inadvertent switching on, please unplug the connection cable between the light unit and the battery pack before transport or storage. 2. DO NOT shine the light directly into human eyes. This may cause temporary blindness or permanent damage to the eyes.
- Page 3 IN THE BOX 1*MONTEER 12000 1*MJ-6398 1*MJ-6508 remote battery pack control (incl. strap) 4*Nylon shims 1*Helmet mount 1*Two-sided handlebar mount 1*Extension cable 2*Helmet 2*Battery mounting straps mounting straps 1*USB-C 1*3mm hex key 1*Warranty card charging cable...
-
Page 4: Remote Control Pairing
OPERATING INSTRUCTIONS REMOTE CONTROL PAIRING: 1. Before first use, please open the remote's battery compartment, remove the insulating spacer, reinsert the battery, then cover the battery compartment, and the indicator on the remote will flash blue. 2. Before pairing, be sure to connect the light unit and battery pack, then long press the light button for 1 second to turn the light on. -
Page 5: Remote Control Operation
REMOTE CONTROL OPERATION: ON/OFF: Press and hold the "○" or "□" button for 1 second ADJUST BRIGHTNESS: Click the "○" button CHANGE MODE: Double click the "○" button FLASH MODE: Double click the "□" button FULL OUTPUT MODE (12000LM): Click the "□" button to go into full output mode and click the "○"... -
Page 6: Battery Indicator
CHARGING / BATTERY INDICATOR Standard charging time approx. 3 hrs (20V 3A) / 9 hrs (12V 3A) / 11.5 hrs (9V 3A) / 16.5 hrs (5V 2A) BATTERY INDICATOR: 1. Display the remaining power in real-time when the light is on, or click to display the power when the light is off. - Page 7 OUTPUT / RUNTIME 300LM 800LM FLOODLIGHT MODE MEDIUM 1500LM HIGH 2500LM 1000LM 3000LM 11.5h SPOTLIGHT MODE MEDIUM 6000LM HIGH 12000LM 2.5h DAY FLASH 0-3000LM 121h FLASH MODE NIGHT FLASH 800-3000LM *The Day flash and Night flash can only be accessed through the remote control. *The above are the factory default settings.
-
Page 8: How To Install
HOW TO INSTALL 1. BATTERY PACK MOUNTING 2. INSTALL ON HANDLEBAR (The mount fits handlebar stems smaller than 70mm. Select the appropriate size shim for 31.8mm or 35mm handlebars.) Nylon shim... - Page 9 3. REMOTE CONTROL MOUNTING Adhesive velcro hook side up 4. INSTALL ON HELMET...
