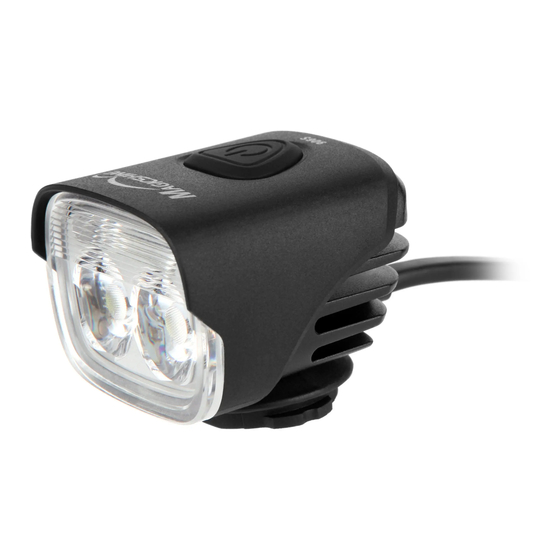

Magicshine MJ-906S E-BIKE User Manual

MJ-906S E-BIKE USER MANUAL
ACCESSORY/STRUCTURE
MJ-906S Handlebar mount
Aero bar compatible strap Nylon strap
DRL
Main Light
HOW TO INSTALL
1
3
5
Gopro mount USB-C Cable
3mm Hex
Power button
2
4
6
HOW TO CONNECT WITH E-BIKE MOTOR
Connect MJ906S with YAMAHA
*Here are a few tutorial videos for your reference. For other motor-specific questions and more
specific inquiries, we suggest contacting your local retailer or bike shop for assistance with
troubleshooting and completing the installation.
BATTERY INDICATOR
FLASH RED
0%-10% 11%-30%
SWITCHING THE LIGHTING MODE
Hold 1s power button to turn on/off
E-bike mode
NIGHT
DAY
Click
LUMENS/RUN TIME
E-bike mode
NIGHT HIGH
4500
DAY DRL
35
The data is tested in laboratory conditions, and the actual peformance can change
according to the environment.
MOTOR OUTPUT
*Our E-Bike lights are retrofittable for direct power from the bike's battery. Identify your bike's
motor model to select the right retrofit cable and light. Note that some motors may limit
voltage and power, affecting light brightness. Scan the code for details.
Connect MJ906S with SHIMANO
RED
Hold 1 second
Double clicks 1s
MID LOW
2500 1800
FLASH
0-1800
