Magicshine ALLTY 200 User Manual

ALLTY 200 USER MANUAL
ACCESSORY/STRUCTURE

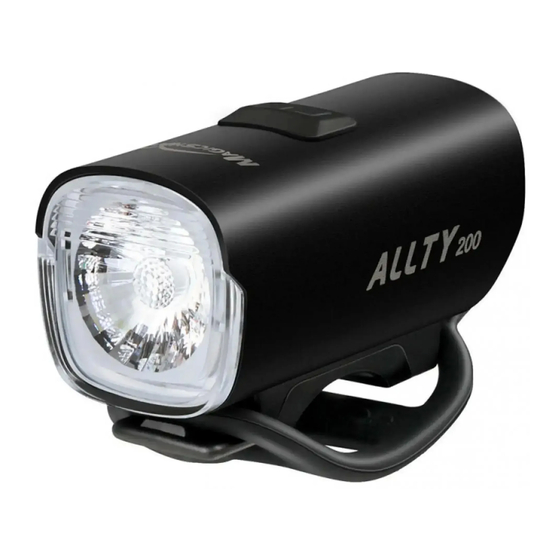

ALLTY 200
HOW TO INSTALL
CHARGING/POWER INDICATOR
When the light is off,click the switch to activate battery indicator for 3 seconds.
CHARGING
Charging：Flash red
Fully charge：Constant green for 3 minutes
POWER INDICATOR
21%-100%：Constant green
11%-20%：Constant red
0%-10%：Flash red
OPERATION INSTRUCTIONS
LOCKOUT/UNLOCK
When the light is off, press and hold the switch (over 3 seconds) to access the lockout
mode.Under the lockout mode, pressand hold the switch (over 3 seconds) to unlock.
ON/OFF：
Press and hold the switch to turn the light on/off, the default output is the last mode when
turned off.
CHANGE BRIGHTNESS LEVEL：
When the light is on, sigle press the switch to change brightness level.The output brightness
will cycle through Low→Medium→High→Low... .
Rubber Strap USB-C Cable
USB-C
Tiempo estándar de carga
aprox. 2,5 horas (5 V 1 A)
Standard charging time
Approx.2.5hrs (5V 1A)
CHANGE MODE：
Double press to enter flash mode and single press to select different ways of flashing. And
another double press again to go back to the original settings.
LOW POWER MODE：
When the battery power is lower than 10%, the light will automatically turn to LOW mode and
cannot be adjusted. Charge the light as soon as possible.
LUMENS/RUN TIME
MODE LOW MID
50 100
10 00 04 30
*All performance measurements in accordance with ANSI/NEMA FL1-2009 Standard. The tests are
performed indoors under a room temperature of 25 degrees Celsius with 25KM/H wind
conditions.The runtime may vary depending on the external temperature and ventilation conditions,
and these biases may affect the results of testing.
EN WARRANTY
The Magicshine lighting system is warrantied for 24 months from the
date of purchase.
If you register the lighting system on the Magicshine website you will
receive a bonus 6 month warranty.
Battery packs and AC adapters have a 6 month warranty, however,
there is no bonus warranty available.
The warranty is limited to defects in material and workmanship on the
lighting system itself, the battery pack and the AC adapter.
The warranty is only valid if the affected parts have not been tampered
with and there is no intentional damage. Please keep your proof of
purchase in a safe place. Proof of purchase must be presented in the
event of any claim. Please contact the specialist retailer from whom
you purchased the device for complaint or warranty claim.
Alternatively, you can send your complaint or claim directly to
Magicshine at
Tel: (+86) 755-295 536 69
Fax: (+86)755-275 897 77
E-mail: support@magicshine.com (order from Magicshine.com
online store)
service@magicshine.com (order from other sales channels)
In the event of a justified warranty claim and delivery of a replacement
device, you will only be entitled to a model available when replacing.
The manufacturer retains the right to make technical modifications.
HIGH DAY FLASH FLASH
200 0-200 0-100
02 00 42 00 07 30
WARNING
